PCB socket DB2ERG-5.0

PCB socket, rated cross-section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: male plug, potentials: 2-24, rows: 1, number of positions: 2-24, number of connections: 2-24, product family: DB2ERG, pitch: 5.0 mm, mounting: wave soldering, pins: straight, pins [P]: 3.5 mm, pins per potential: 1, plugging system: COMBICON DB2ERG, Male connector pattern alignment: Standard, Interlocking: Snap-in locking, Mounting: Locking device, Packaging type: Carton, Plug with locking device

Advantages

☑This ensures a high degree of flexibility in the design of the device – with just one socket, you can meet the needs of connectors with different connection technologies

☑Universal installation for worldwide use
☑The closed profile ensures the stability of the plug-in connection
☑The intuitive locking mechanism prevents accidental disconnection
0
Views: 361
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    ∅1.7

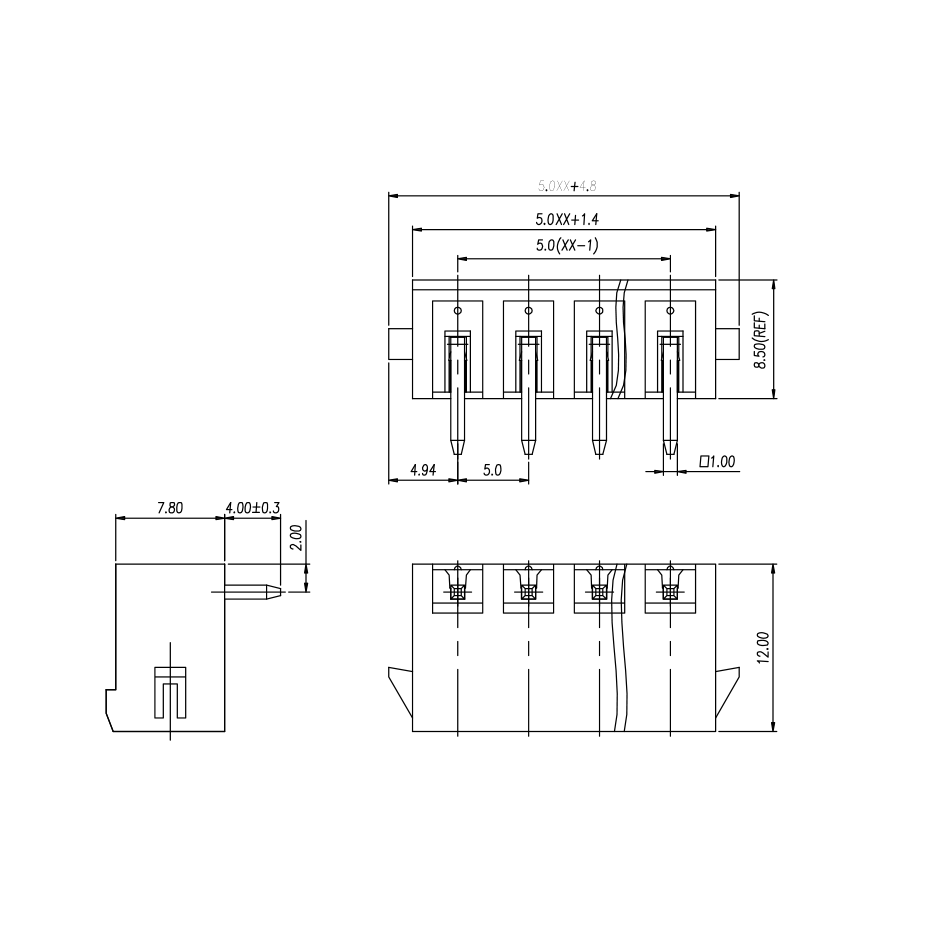

    Size Chart

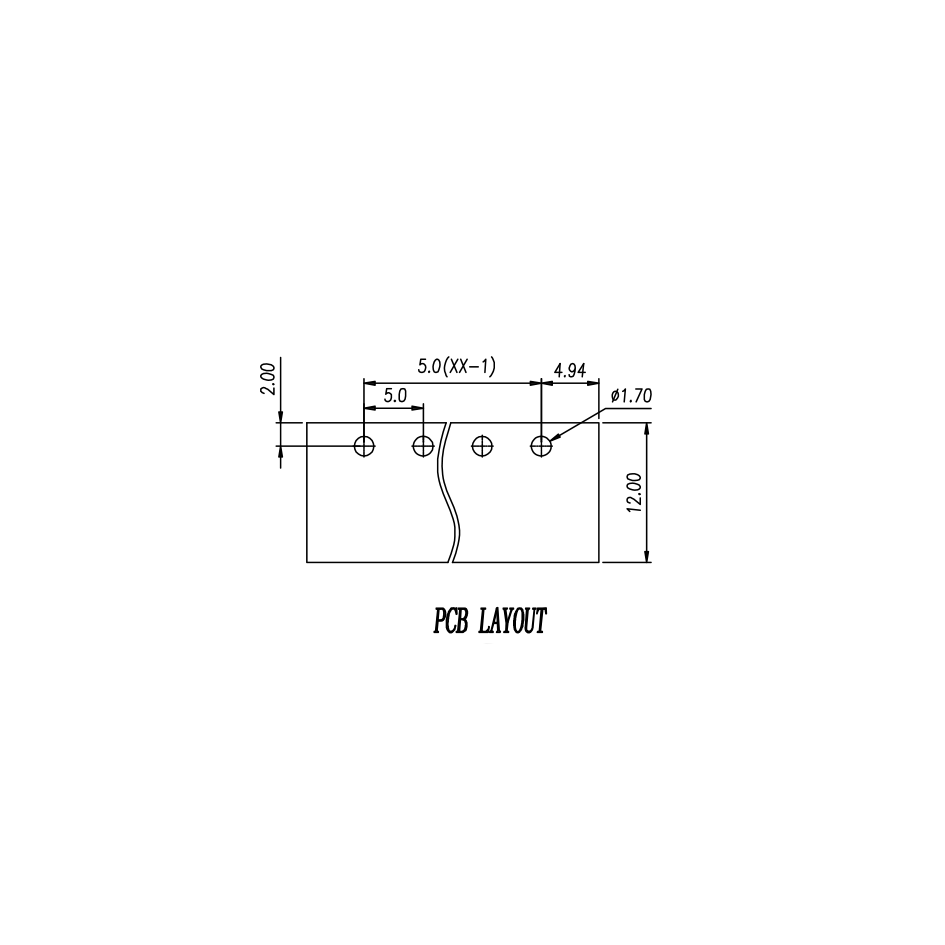

    PCB opening diagram
