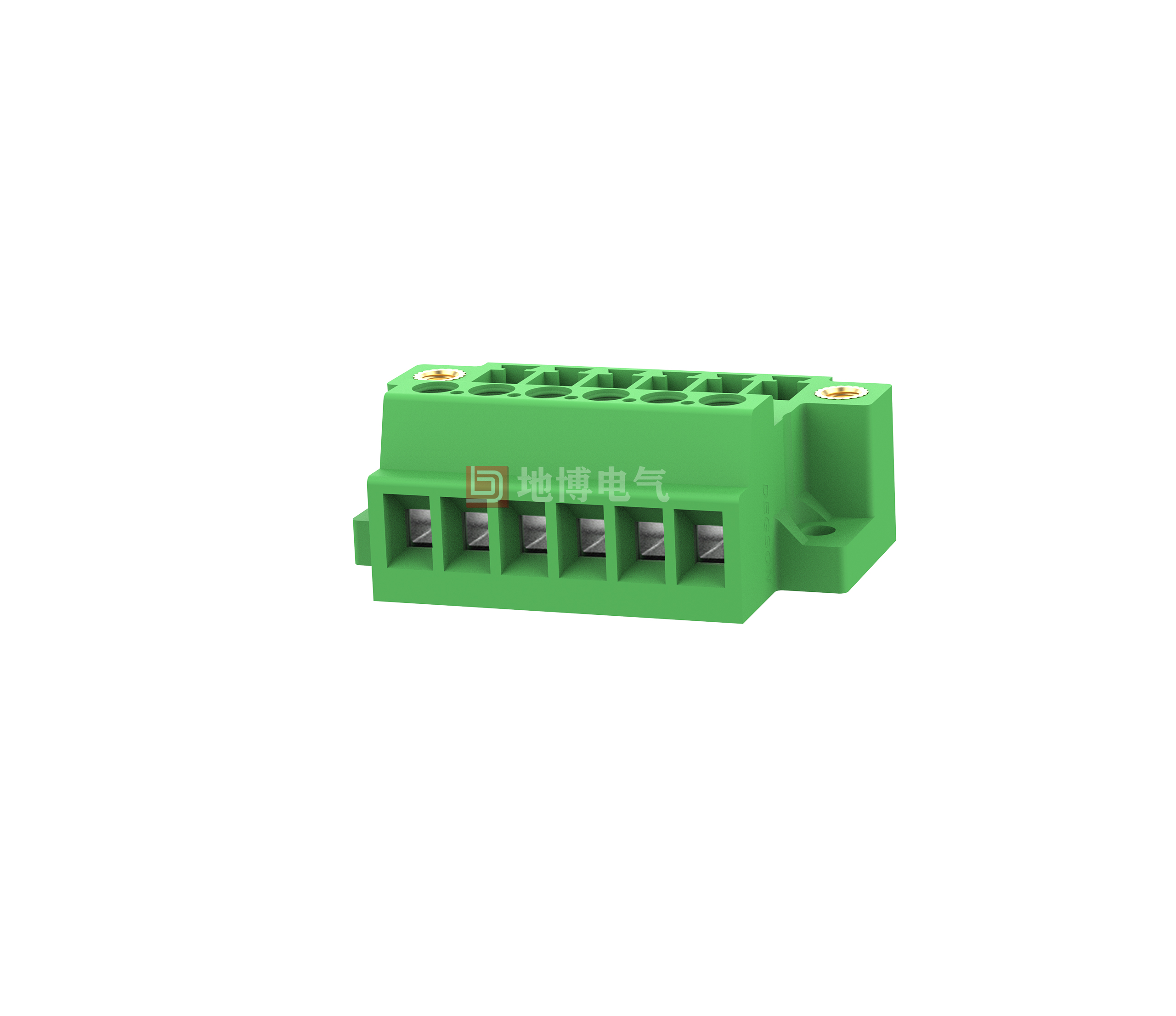

PCB socket DB2EGBM-5.08

Direct pluggable connector, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Series: DB2EGBM, Pitch: 5.08 mm, Wiring pattern: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Lead/PCB contact orientation: 0°, Number of solder pins per potential: 0 Pin pitch: 5.08 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Wire/PCB connection orientation: 0°, Number of pins per potential: 1, mating system: COMBICON DB2EGBM, Interlocking: Screw tight, Mounting: Screw flange, Packing type: Carton

Advantages

☑ Plug-in connector with mounting flange that can be screwed to a mounting plate or device housing
☑Can be combined with DB2EKM series connectors
☑Ensures high flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
☑Universal connectivity for global use
☑Allows two stranded wires to be connected
0
Views: 274
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.08/2~24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /
