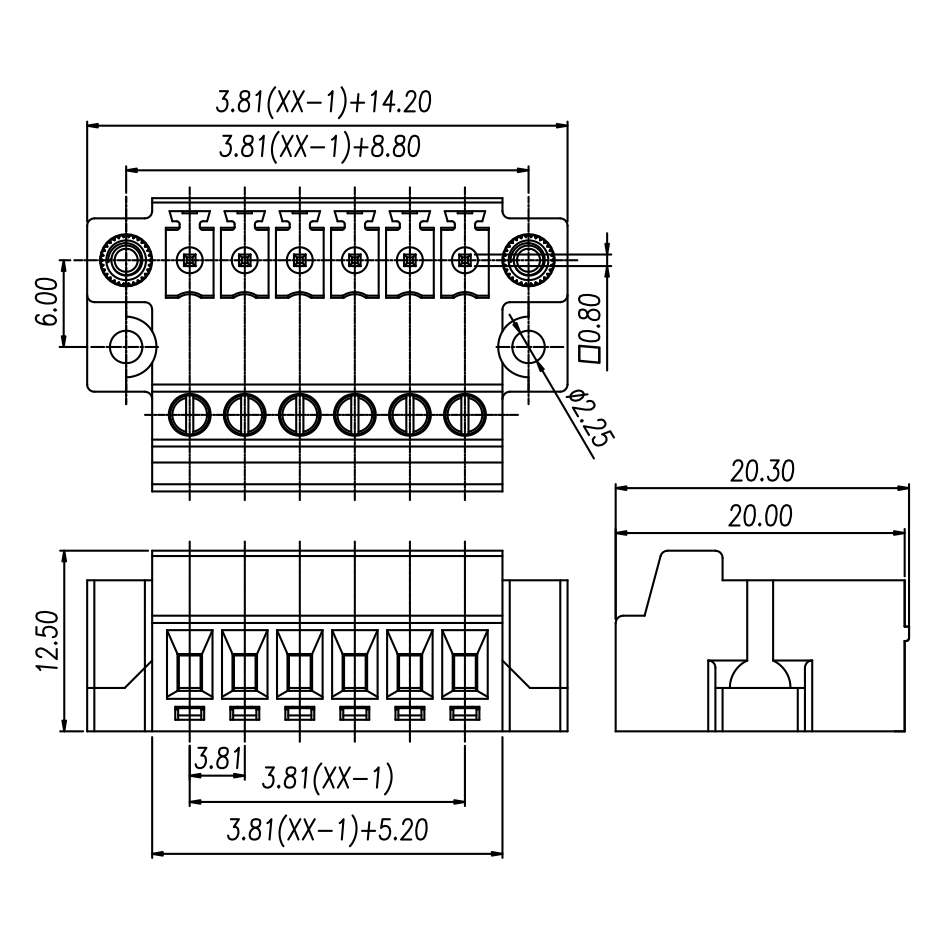

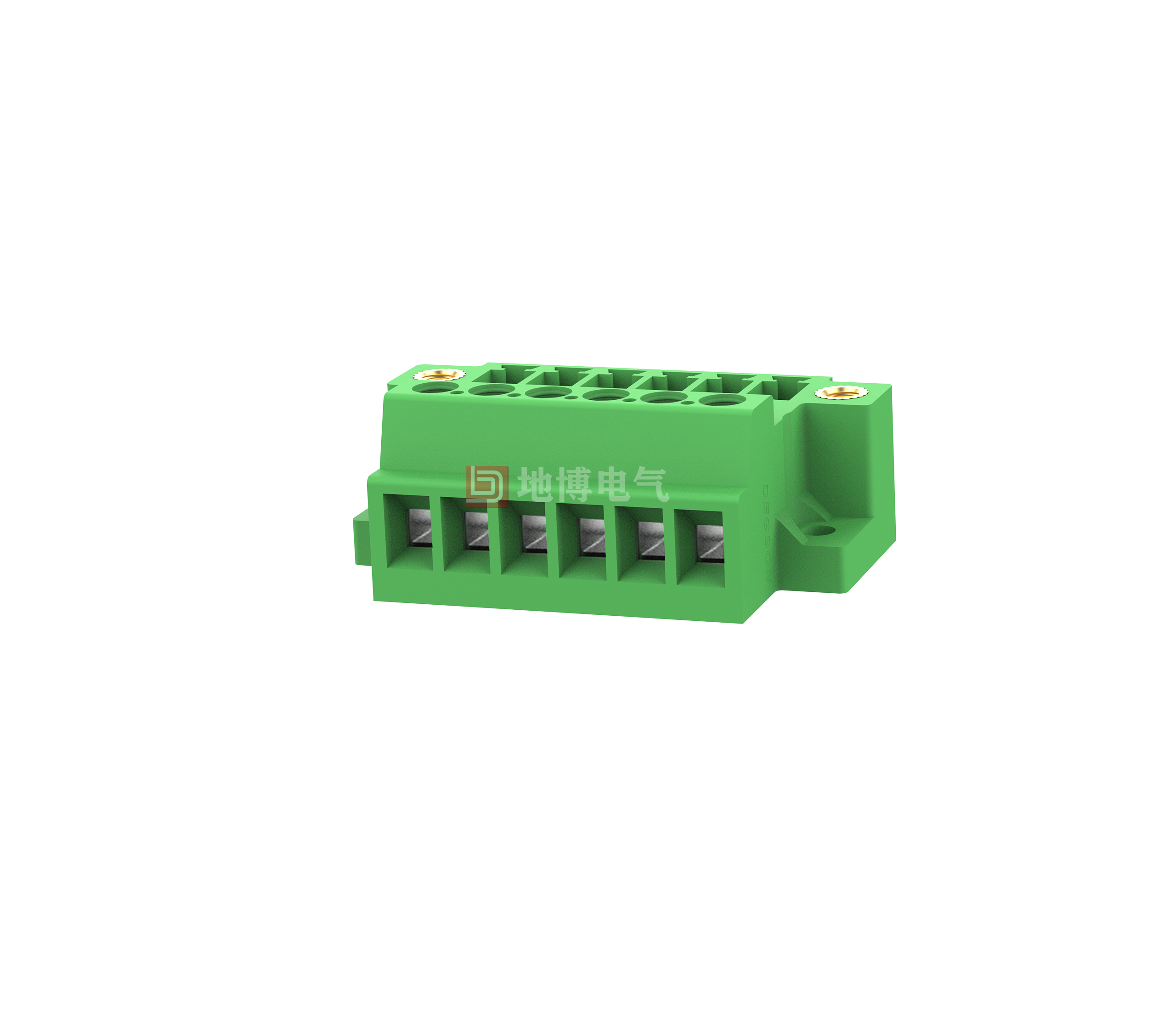

PCB socket DB2EGBM-3.81

Direct pluggable connector, Cross-sectional rating: 1.5 mm², Color: Green, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Series: DB2EGBM, Pitch: 3.81 mm, Wiring pattern: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Lead/PCB contact orientation: 0°, Number of solder pins per potential: 0°, Pitch: 3.81 mm, Screw head size: L slotted, Mounting: Direct mount Pin pitch: 3.81 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Wire/PCB connection orientation: 0°, Number of pins per potential: 1, mating system: COMBICON DB2EGBM, Interlocking: Screw tight, Mounting: Screw flange, Packing type: Carton
