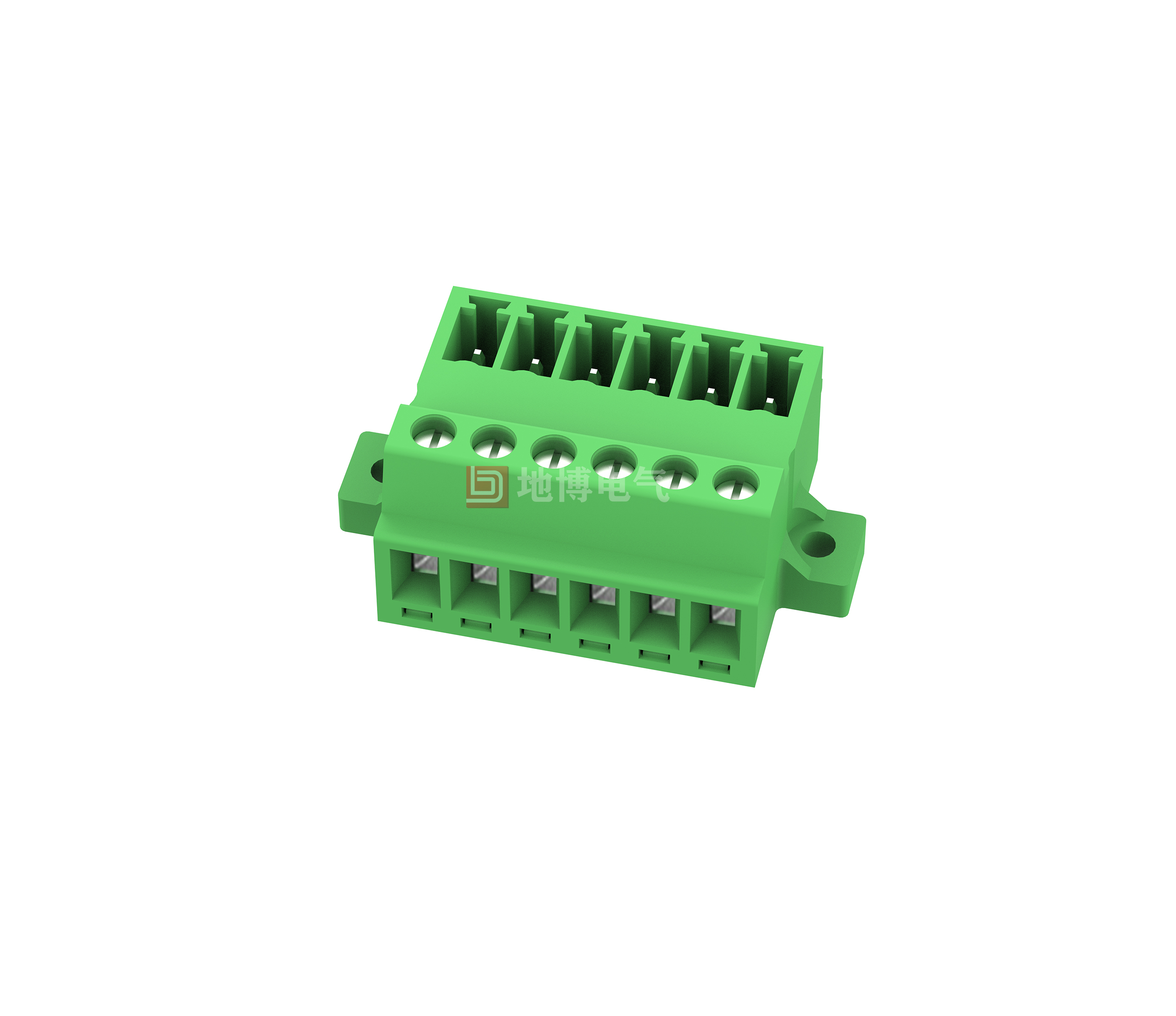

PCB socket DB2EGB-3.81

Direct pluggable connector, Cross-sectional rating: 1.5 mm2, Color: Green, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Series: DB2EGB, Pin pitch: 3.81 mm, Wiring pattern: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Wire/PCB contact orientation: 0°, Number of solder pins per potential: 1 : 3.81 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Wire/PCB connection orientation: 0°, Number of solder pins per potential: 1, mating system: COMBICON DB2EGB, Interlocking: without, Mounting: without, Package type: Carton

Advantages

☑Horizontal mounting flange for screw-on attachment to housing or mounting plate
☑Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
0
Views: 280
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.5~1.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated




    General Parameters



    Pitch/Poles [mm]/[P]
    3.81/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

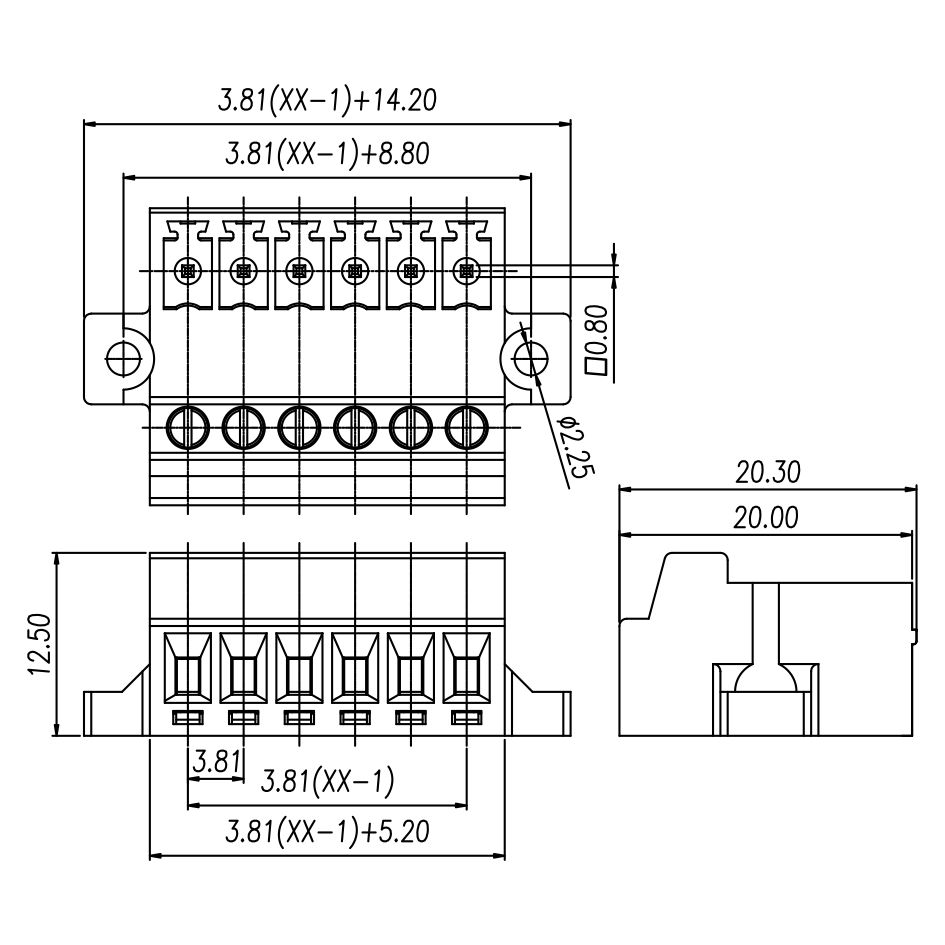

    Size Chart
