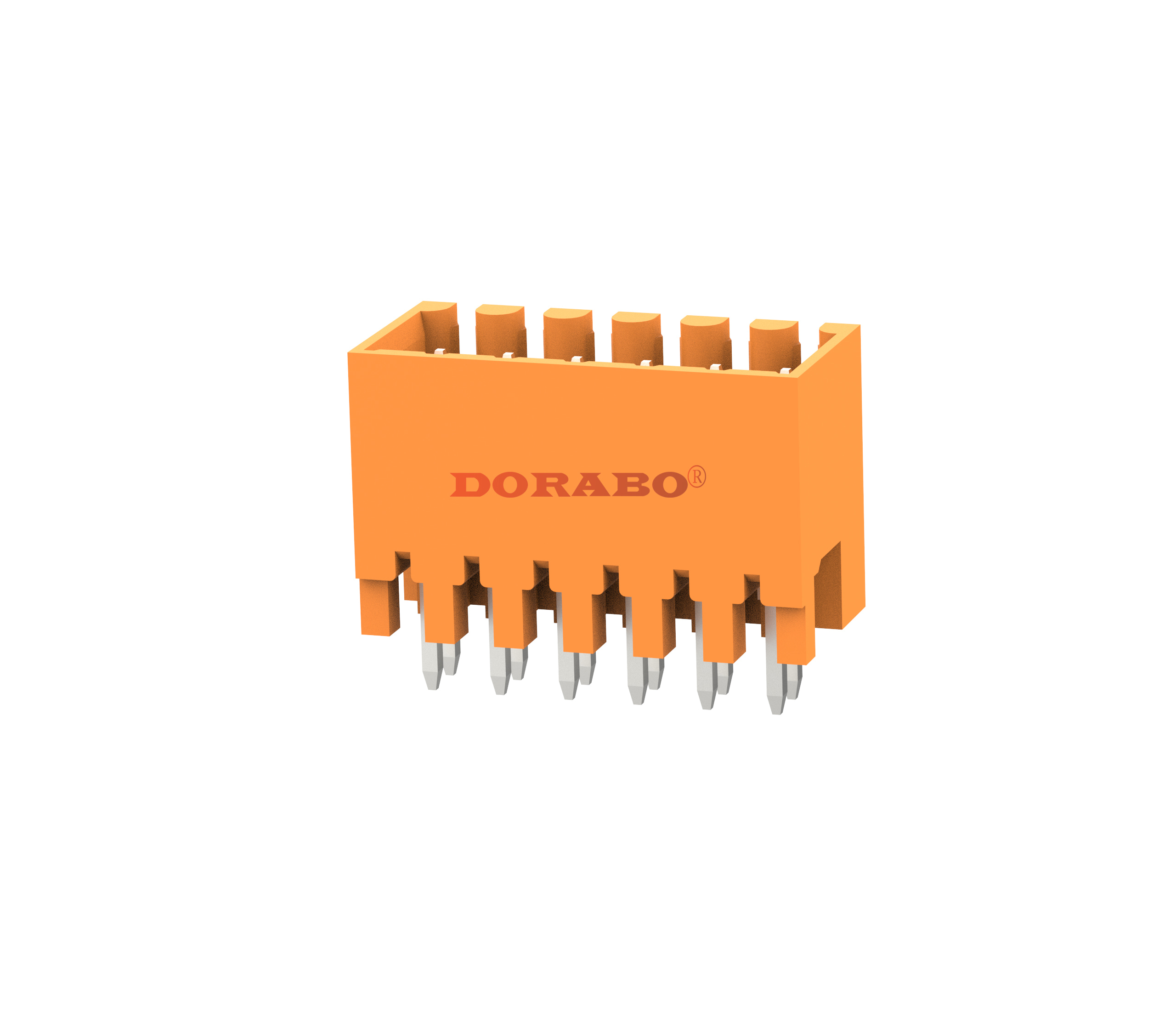

PCB socket DB2EEVC-3.5

Printed Circuit Board Housing, Rated cross-section: 1.0 mm2, Colour: Orange, Rated current: 7 A, Rated voltage (III/2): 150 V, Contact surface: Tin, Contact type: Pin header, Number of potentials: 4-48, Number of rows: 2, Number of positions: 4-48, Connections: 4-48, Product line: DB2EERC, Pin spacing: 3.5 mm, Mounting: Wave soldering. Pin arrangement: straight, Soldering pins [P]: 3.5 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2EEVC, Pin connector style alignment: standard, Interlocking: without, Mounting: without, Packaging type: carton

Advantage

☑Universal mounting, can be used worldwide
☑Multi-layer wire connection for high contact density
☑Ensures a high degree of flexibility in the design of the device - only one socket is needed for connectors utilising different connection technologies.
0
Views: 223
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    7 - 7
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    80 125 250
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4



    dimension drawing





    PCB Opening Diagram
