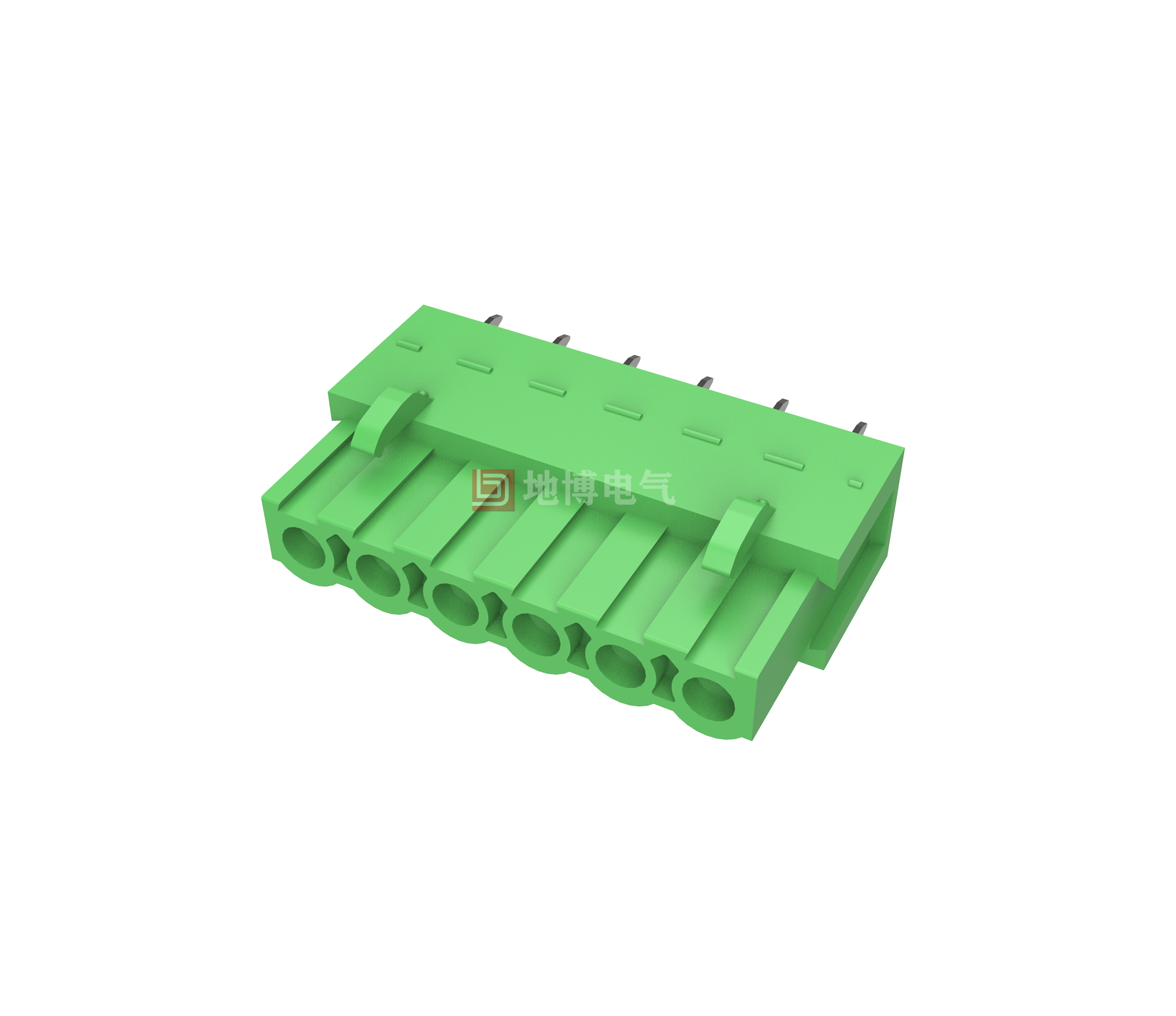

PCB socket DB2EB-5.0

PCB Housing, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 20 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of bits: 2-24, Connections: 2-24, Series: DB2EB, Pin pitch: 5.0 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Pins [P]: 3.5 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2EB, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Package Type: Carton Packaging

Advantages

☑Ensures a high degree of flexibility in device design - Only one socket is needed for connectors that utilize different connection technologies
☑Easy PCB replacement with pluggable modules
☑universal mounting for worldwide use
☑Reverse receptacle with multiple receptacle contacts for device output or PCB/PCB connection
0
Views: 402
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.4*1.1
    PCB Hole Diameter [mm]
    ∅1.4

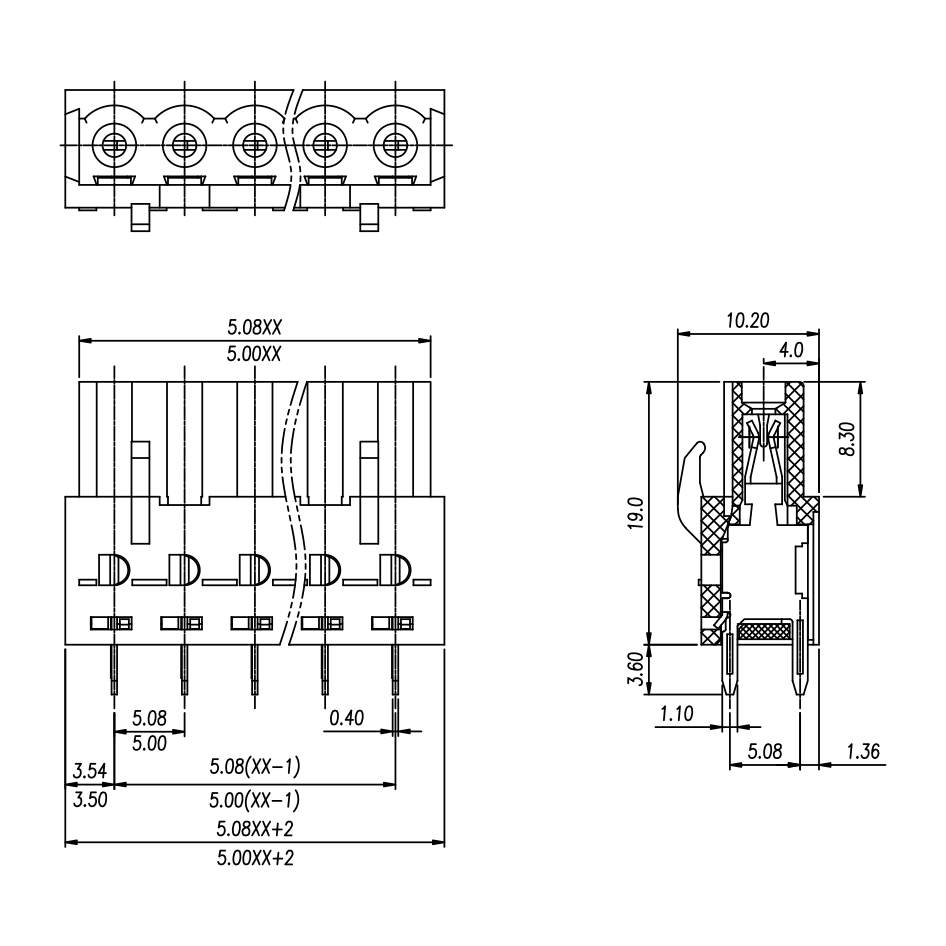

    Size Chart

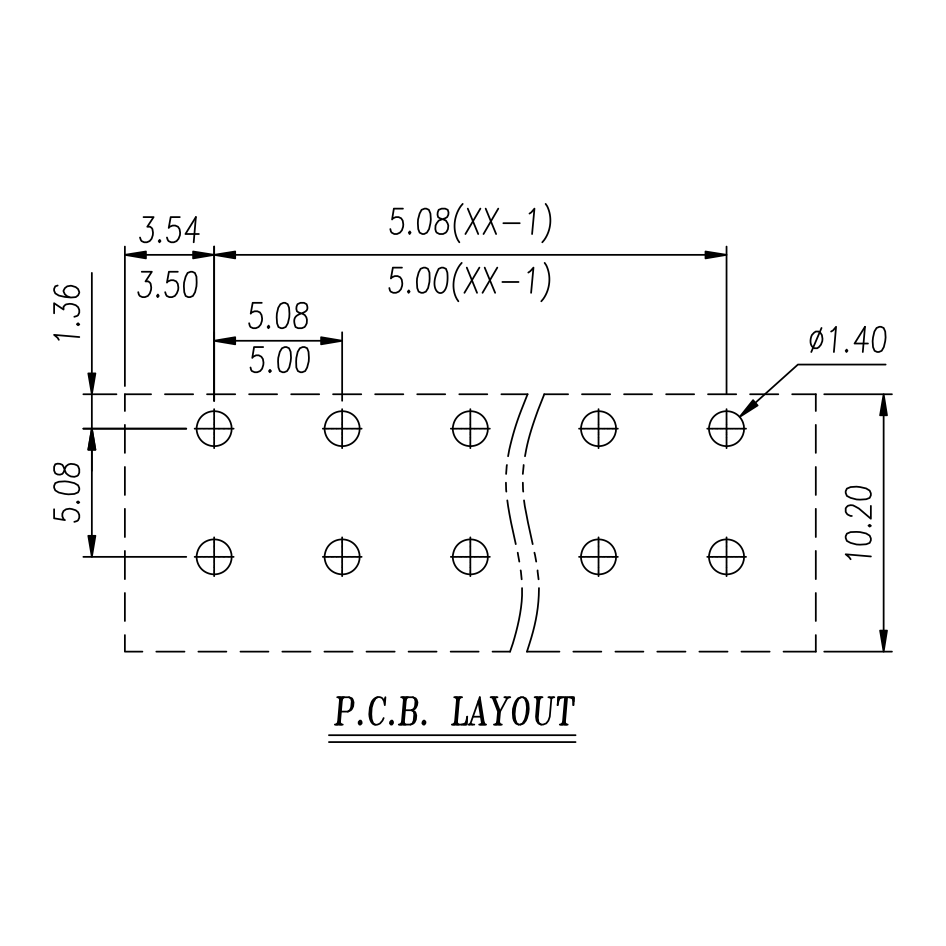

    PCB opening diagram
