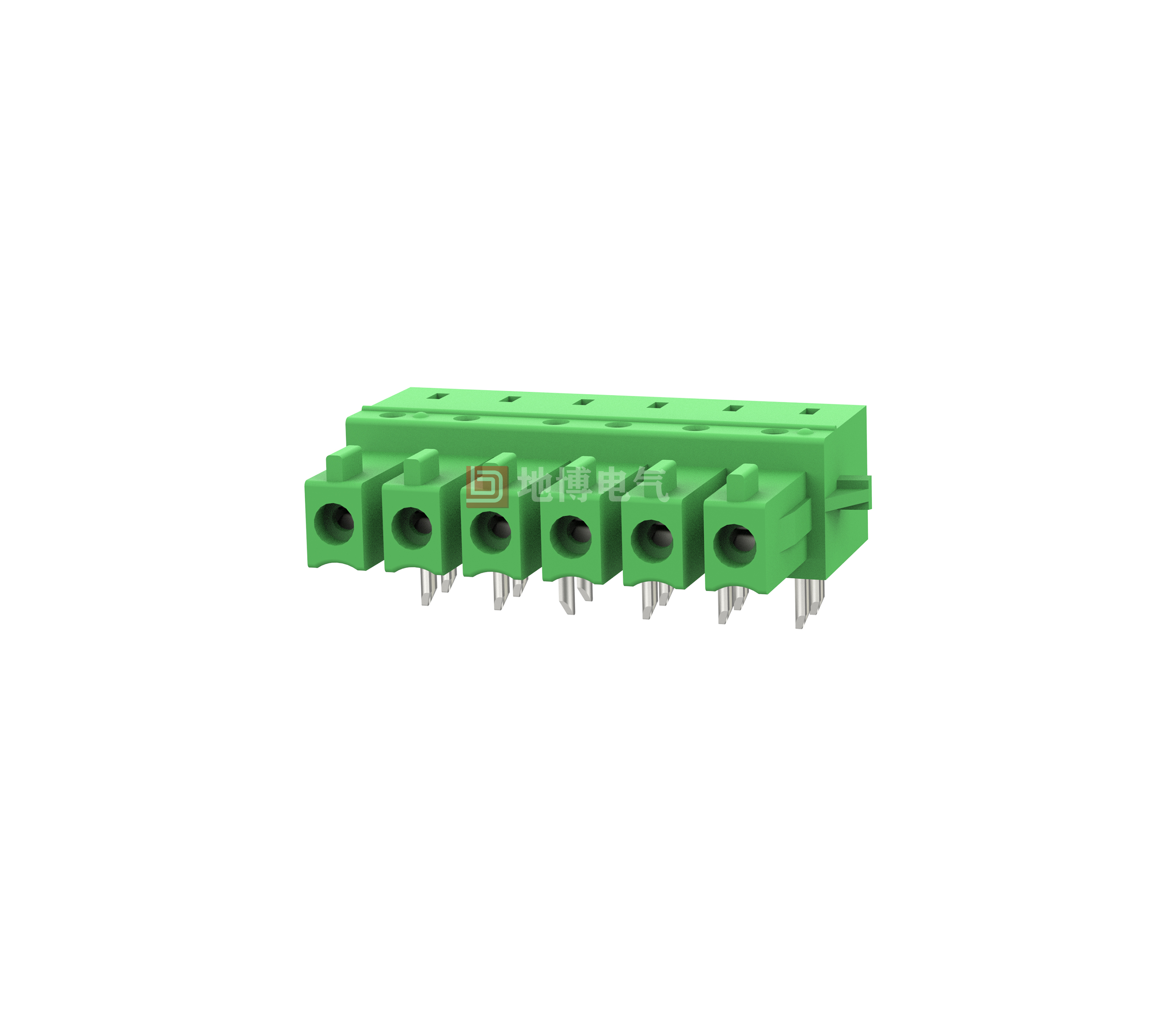

PCB socket DB2EAG-3.5

PCB Housing, Cross-sectional rating: 1.5 mm2, Color: Black, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Hole connector, Number of potentials: 2-24, Number of rows: 1, Number of bits: 2-24, Number of connections: 2-24, Product family: DB2EAG, Pin pitch: 3.5 mm, Mounting: THR Solder, Pin Alignment: Straight Alignment, Pins [P]: 2 mm, Number of Pins per Potential: 2, Insertion System: DB2EAG, Pin Connector Style Alignment: Standard, Interlock: Snap Lock, Mounting: Locking Device, Package Type: Carton

Advantages

☑designed for integration into SMT soldering processes
☑Intuitive locking mechanism prevents accidental disconnects</div /div>
☑Reverse sockets with multiple socket contacts provide touch protection for device outputs or PCB/PCB connections
0
Views: 303
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.6*1.0
    PCB Hole Diameter [mm]
    Ø1.4

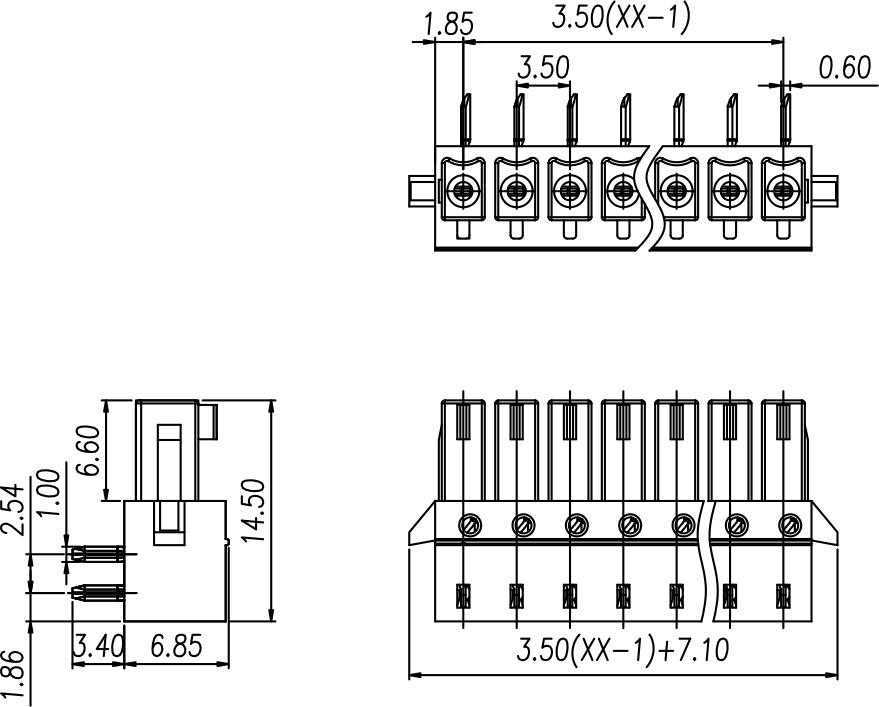

    Size Chart

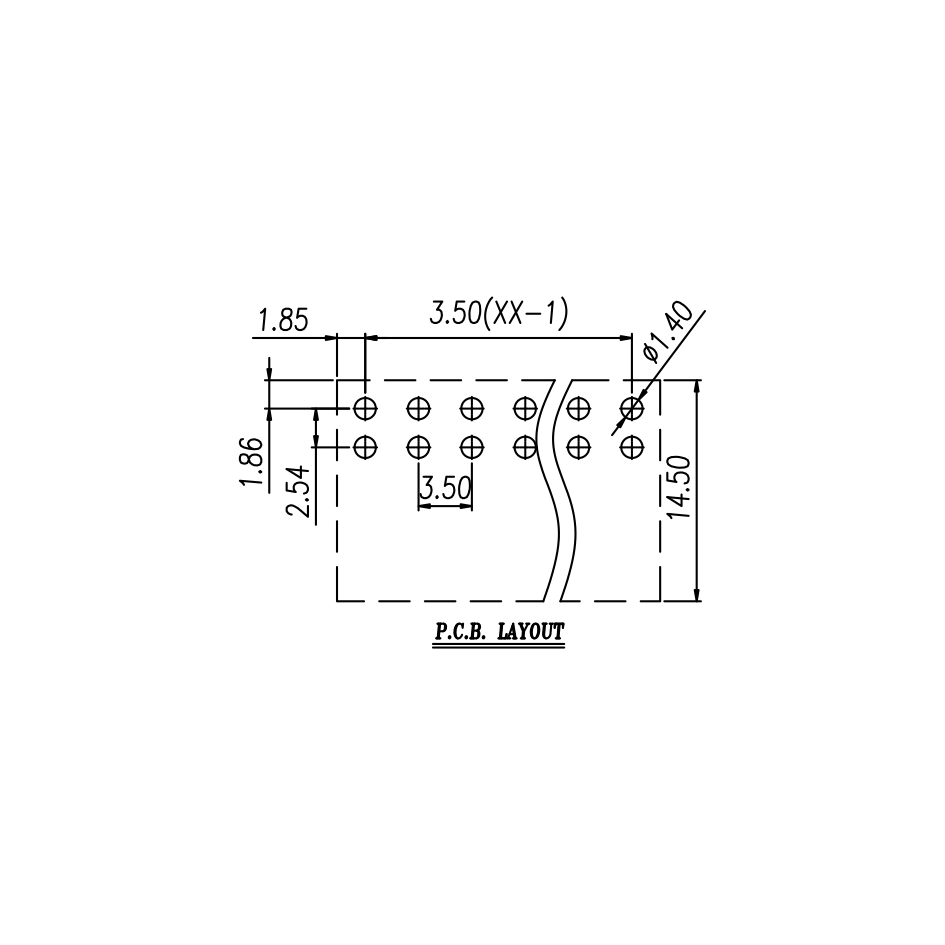

    PCB opening diagram
