PCB header DB3EA-7.62

PCB headers, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2-16, number of rows: 1, number of positions: 2-16, number of connections: 2-16, product range: DB3EA, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON DB3EA, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard

Advantages

☑Well-known mounting principle allows worldwide use

☑Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
☑Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections
☑Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
0
Views: 278
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    41 41 41
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV

    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    / 2 /
    Rated Voltage [V]
    / 630 /
    Rated Current [A]
    / 41 /
    Impulse withstand voltage [KV]
    / 6 /
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-12
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    ∅1.7

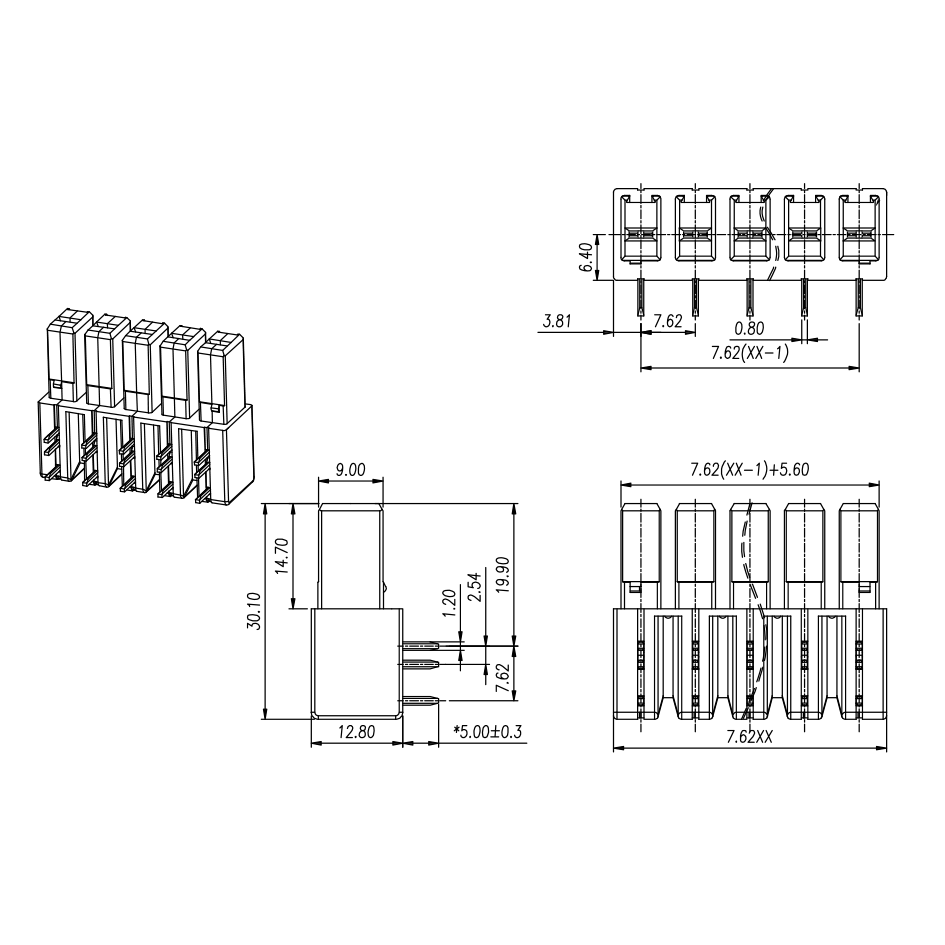

    Size Chart

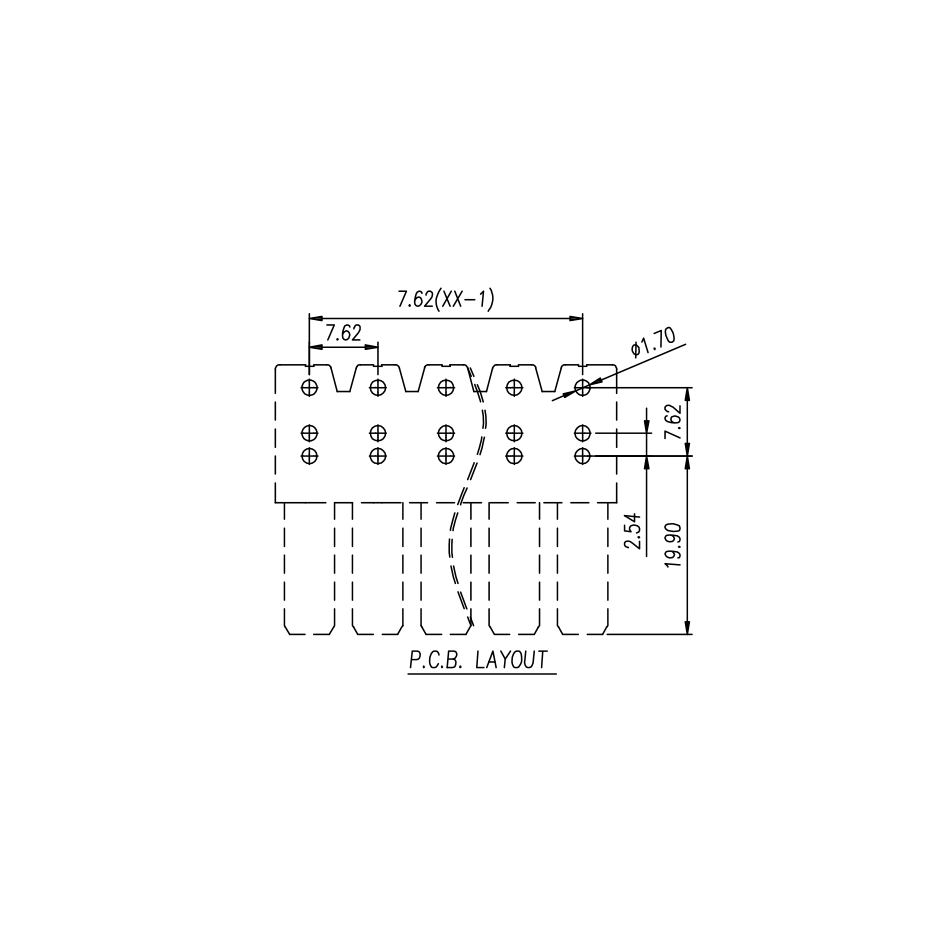

    PCB opening diagram
