PCB socket DB1ERC-3.81

Pin Pitch: 3.81 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Pins [P]: 3.4 mm, Number of Pins per Potential: 1, Insertion System: DB1ERC, Pin Connector Style Alignment: Standard, Interlock: No, Mounting: No, Package Type: Carton

Advantages

☑Universal mounting for worldwide use
☑Ensures High flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
0
Views: 390
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.81/2~24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

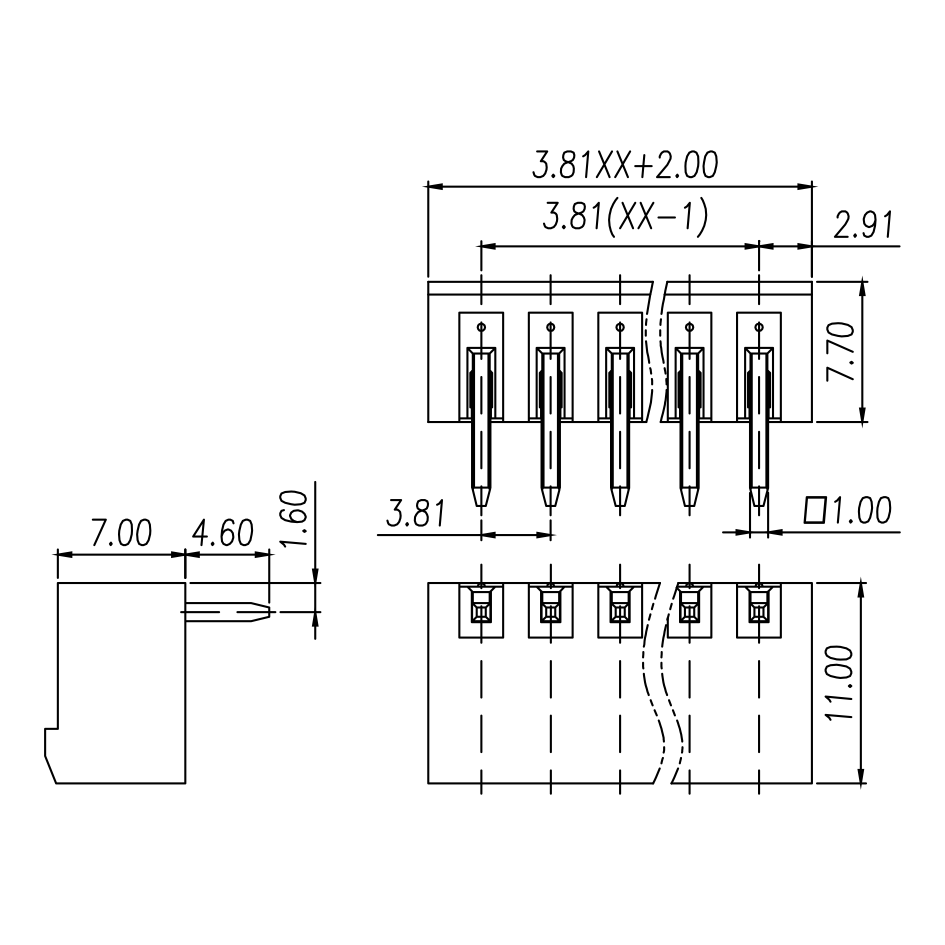

    Size Chart

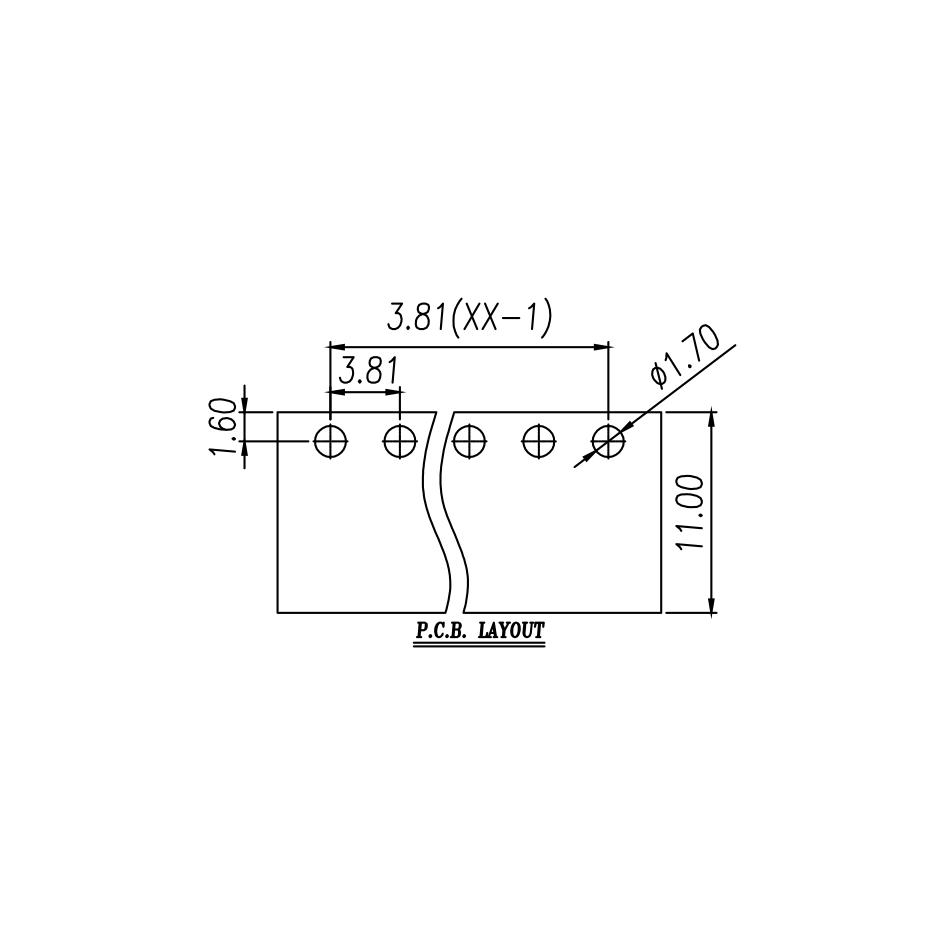

    PCB opening diagram
