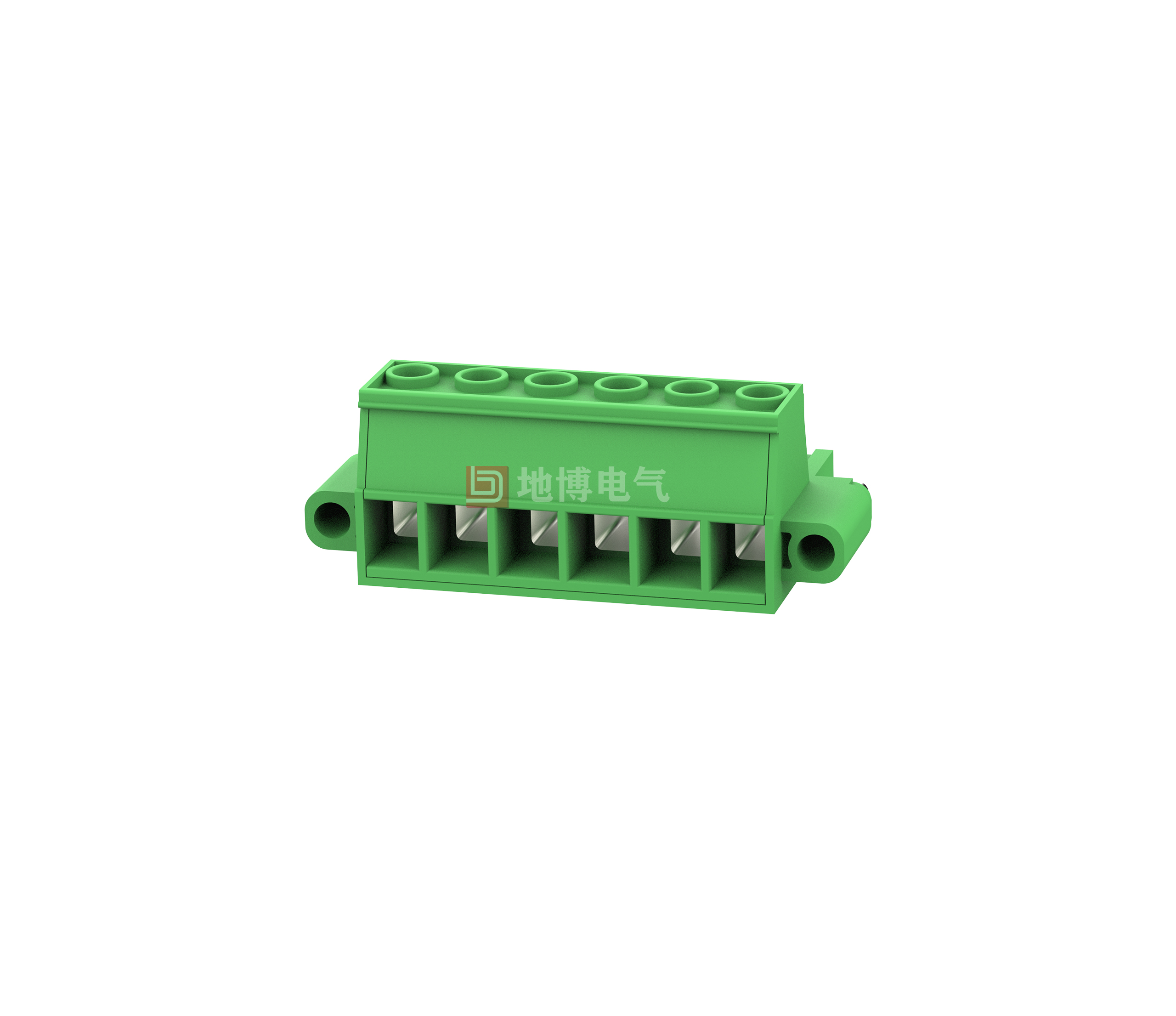

PCB Pluggable Connectors DB3EKM-10.16

Pluggable connector, Cross-sectional rating: 6 mm2, Color: Green, Current rating: 41 A, Voltage rating (III/2): 1000 V, Contact surface: Silver, Contact type: Hole connector, Number of potentiometers: 2-18, Number of rows: 1, Number of digits: 2-18, Connections: 2-18, Series: DB3EKM, Pin pitch: 10.16 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latch: - without latch, mating system: COMBICON DB3EKM, Interlocking: Screw tight, Mounting: Screw flange, Package type: Carton

Advantages

☑Universal connectivity for global use

☑Maximum contact force, lower ramp
☑ allows two stranded wires to be connected
☑Built-in steel double reed improves connection reliability, especially with temperature and power fluctuations
☑Built-in protection rails to prevent misinsertion of wires under flexible deflection tubes
0
Views: 338
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    55 55 5
    Wire Range [AWG]
    20-6
    Dielectric Voltage-Withstand
    2.2KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    76 76 76
    Impulse withstand voltage [KV]
    8 8 6
    Conductor cross section [mm²]
    0.5-16



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    10.16/2-18
    Stripping Length [mm]
    13-14
    Screw/Torque(Max)[N.m]
    M4/1.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

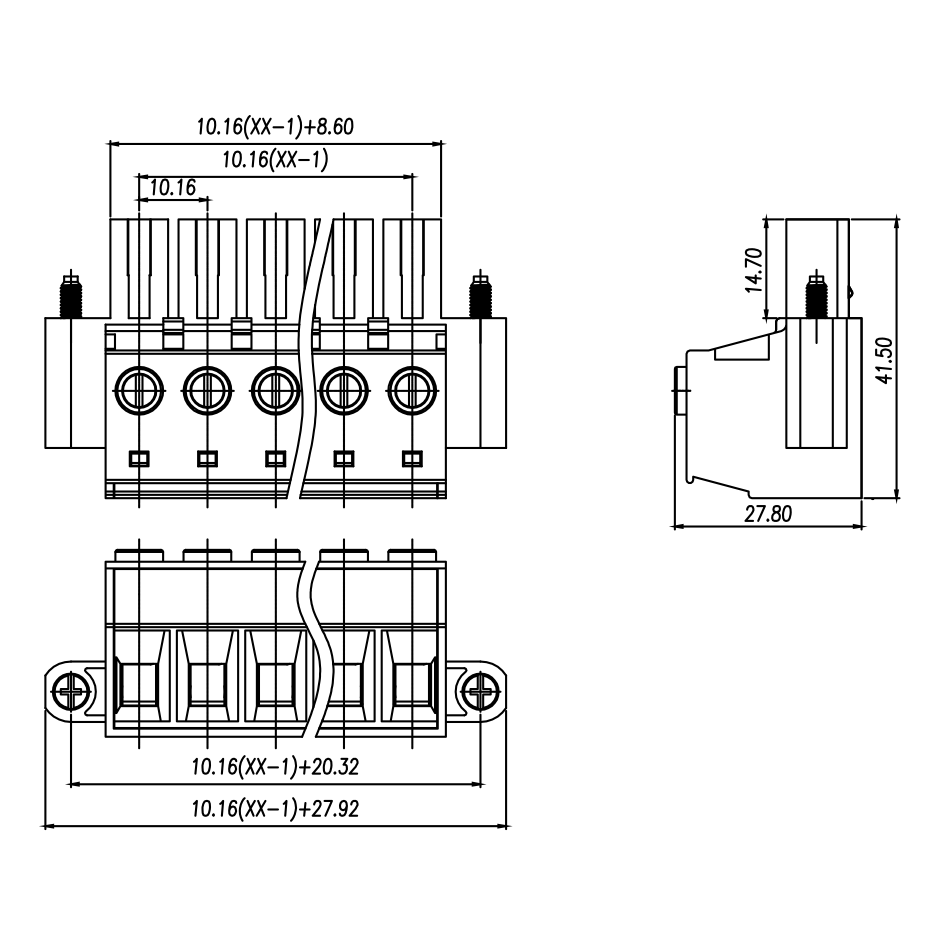

    Size Chart
