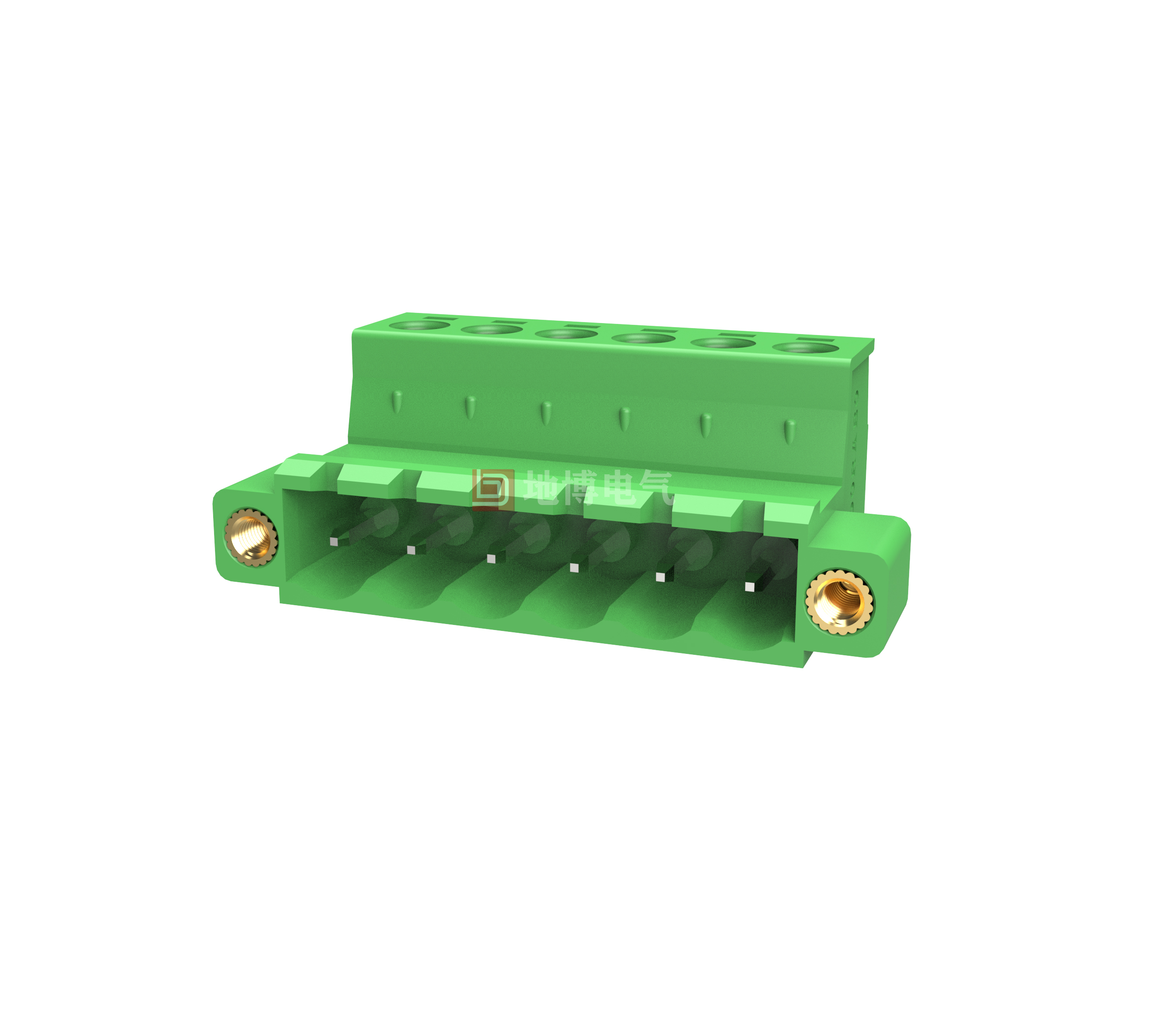

PCB Pluggable Connectors DB2EKRP-5.08

Pluggable connector, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentiometers: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2 -24, Series: DB2EKRP, Pin spacing: 5.08 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB contact orientation: 0°, Latches: - without latch, mating system: COMBICON DB2EKRP, Interlocking: Screw tight, Mounting: Screw flange, Packing type: Carton packing

Advantages

☑Universal connection for worldwide
☑Easy PCB replacement with pluggable modules
☑Bolt flange ensures high mechanical stability
☑Reverse connector with multiple pin pins provides touch-proof protection for device output or free-hanging wire-to-wire connections
☑Can be used in combination with DB2E series connectors
☑Max. Contact force with lower ramp-up
0
Views: 338
Contact usDownload PDF View 3D Download CAD

  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5

    Materials

     Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

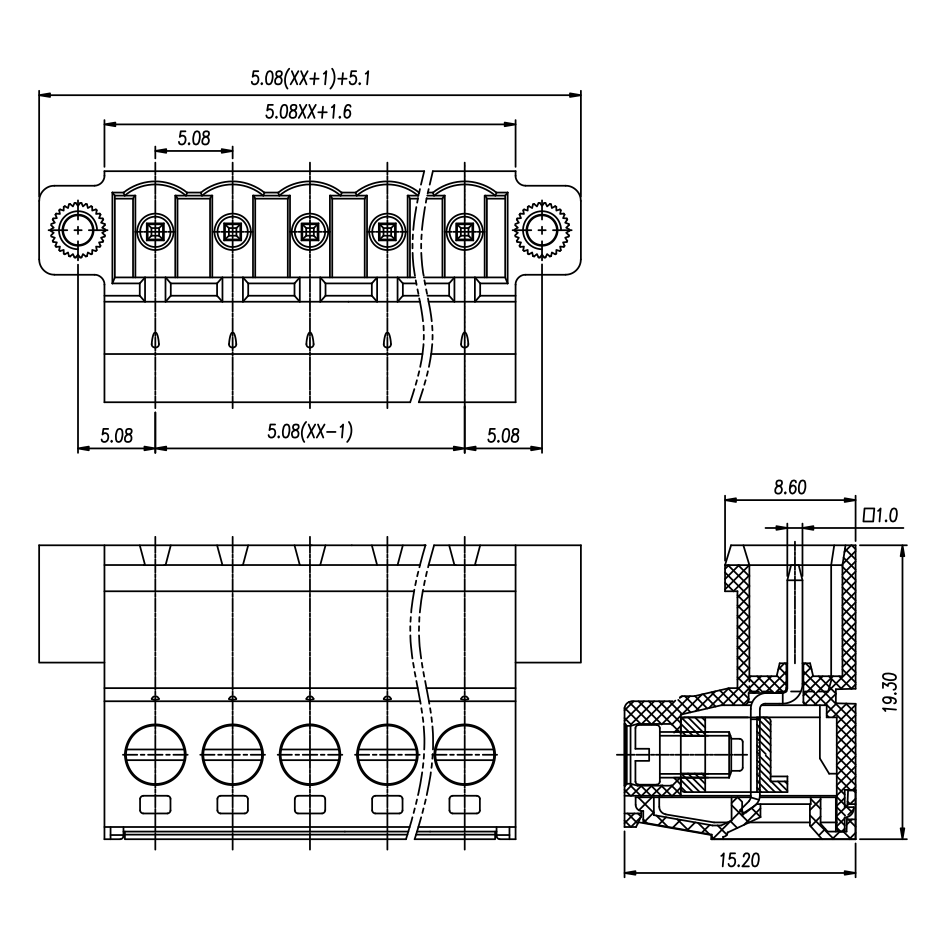

    Size Chart
