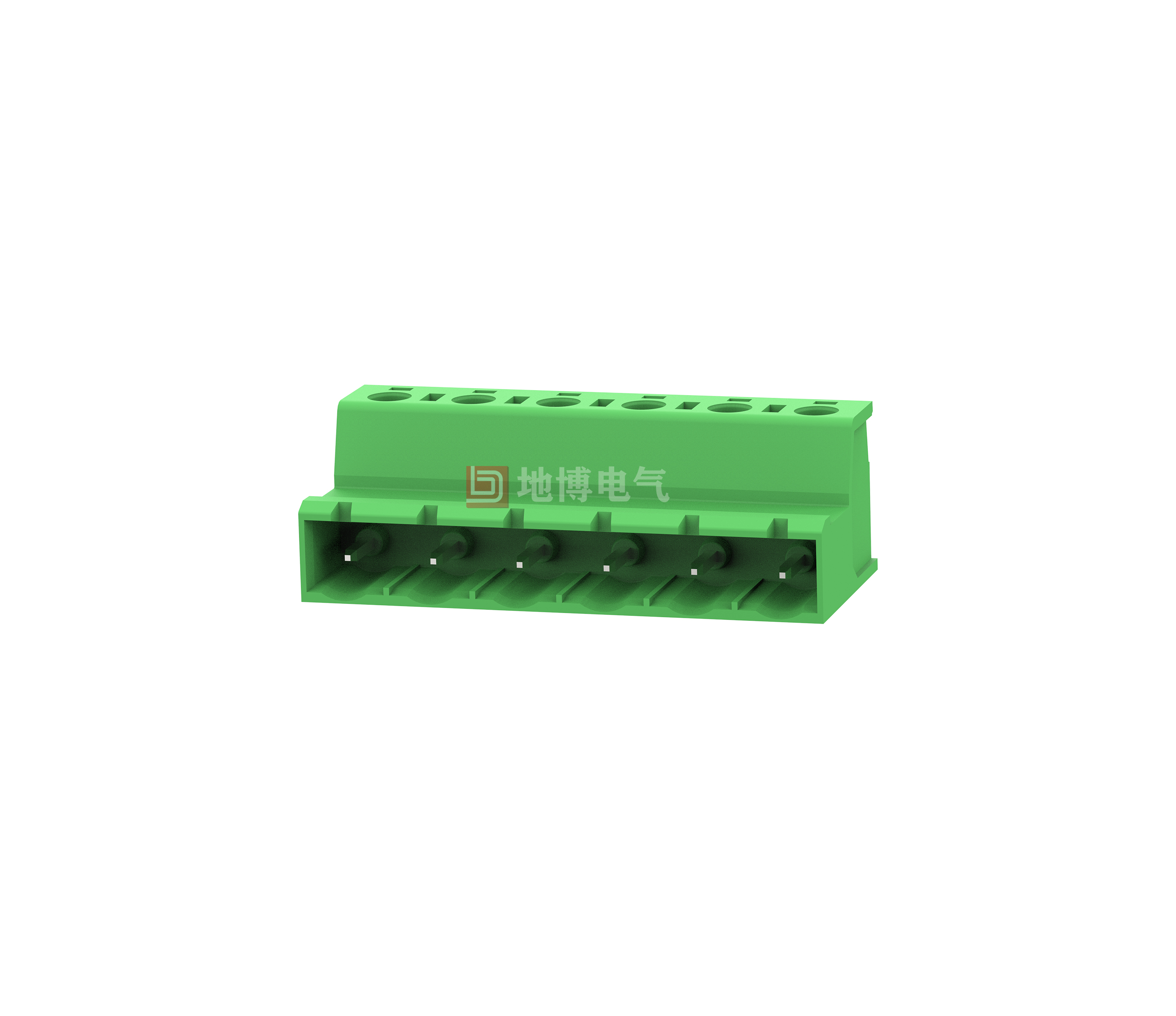

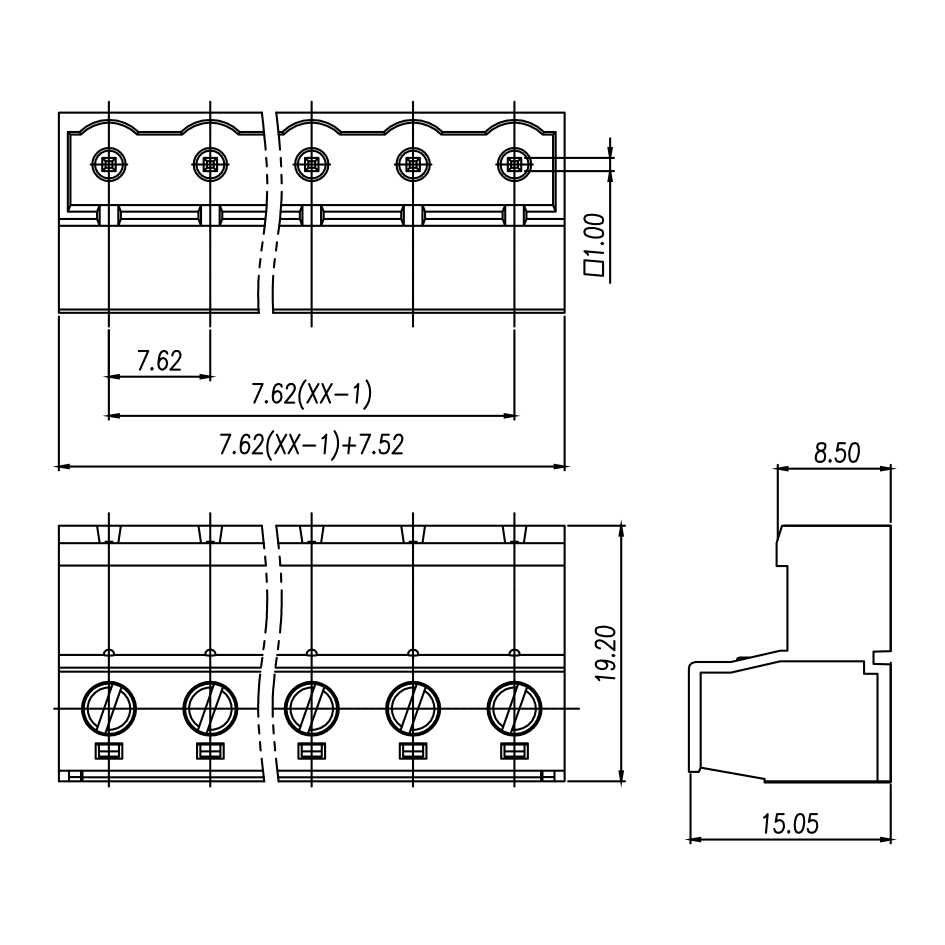

Pluggable connector, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 630 V, Contact surface: Tin, Contact type: Pin connector, Number of potentiometers: 2-16, Number of rows: 1, Number of digits: 2-16, Connections: 2-16, Series: DB2EKR, Pin pitch: 7.62 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latch: - without latch, mating system: COMBICON DB2EKR, Interlock: without, Mounting: without, Package type: Carton
Advantages
☑Universal connectivity for global use
☑Maximum contact force with low temperature rise
☑larger pin spacing for increased voltage requirements
☑Reverse connector with multiple pin pins for device output or free-hanging wire-to-wire connections with touch-proof protection
