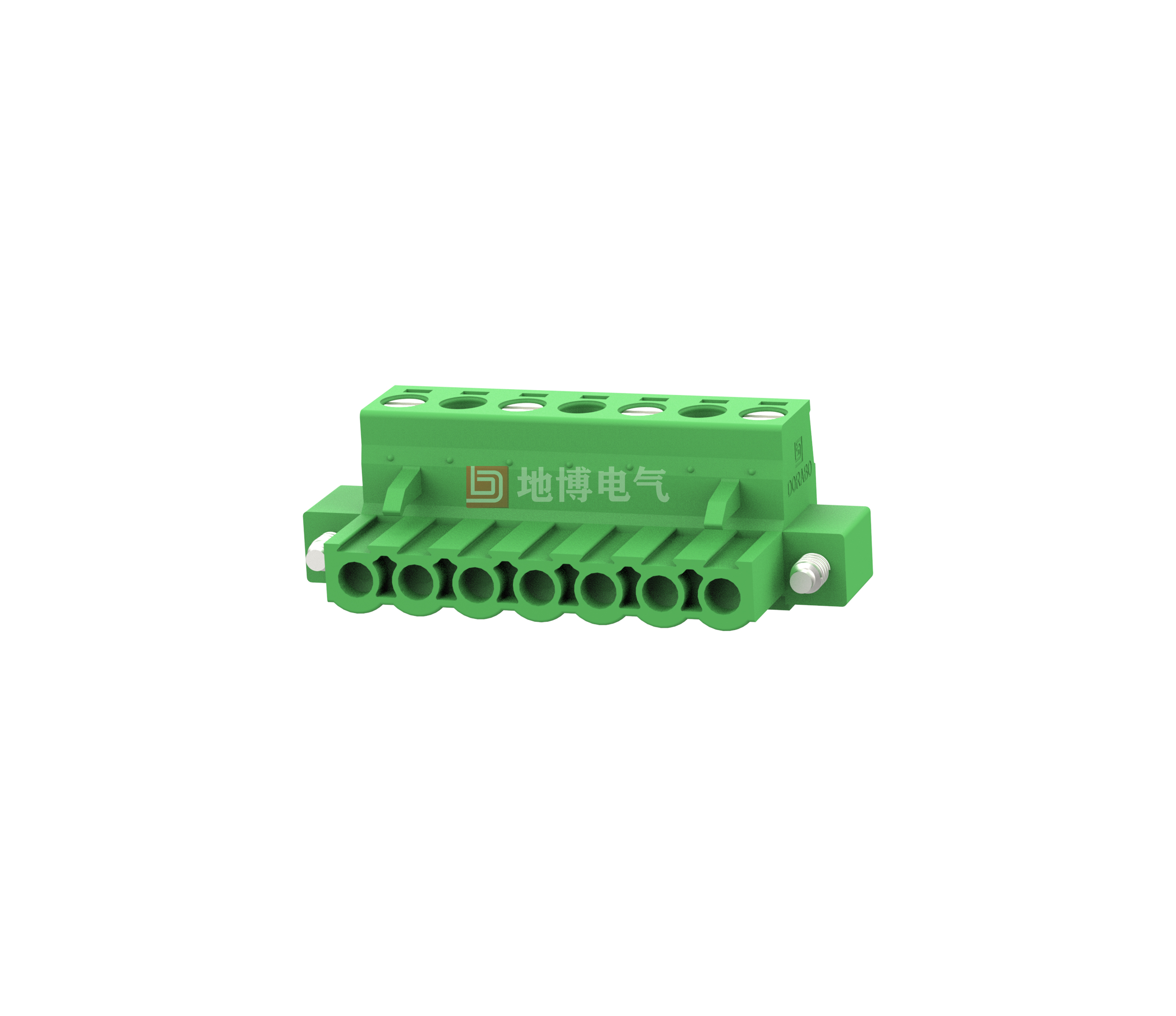

PCB Pluggable Connectors DB2EKM-10.16

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 15 A, Rated voltage (III/2): 600 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Series: DB2EKM, Pin pitch: 10.16 mm, Wiring method: Screw connection with crimp, Screw head size: L slot, Wire/PCB connection orientation: 0°, Latch: - without latch, Plug-in system: COMBICON DB2EKM, Interlocking: Screw connection without latch Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 0°, Clamping: - without clamping, Insertion system: COMBICON DB2EKM, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton

Advantage

☑Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Allows connection of two stranded wires
☑Bolt flanges guarantee a high degree of mechanical stability
0
Views: 375
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 - 600
    Rated Current [A]
    15 - 5
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    2.2KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 1000 1000
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    10.0，10.16/2~12
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB板孔径 PCB Hole Diameter [mm]
    /



    Size Chart
