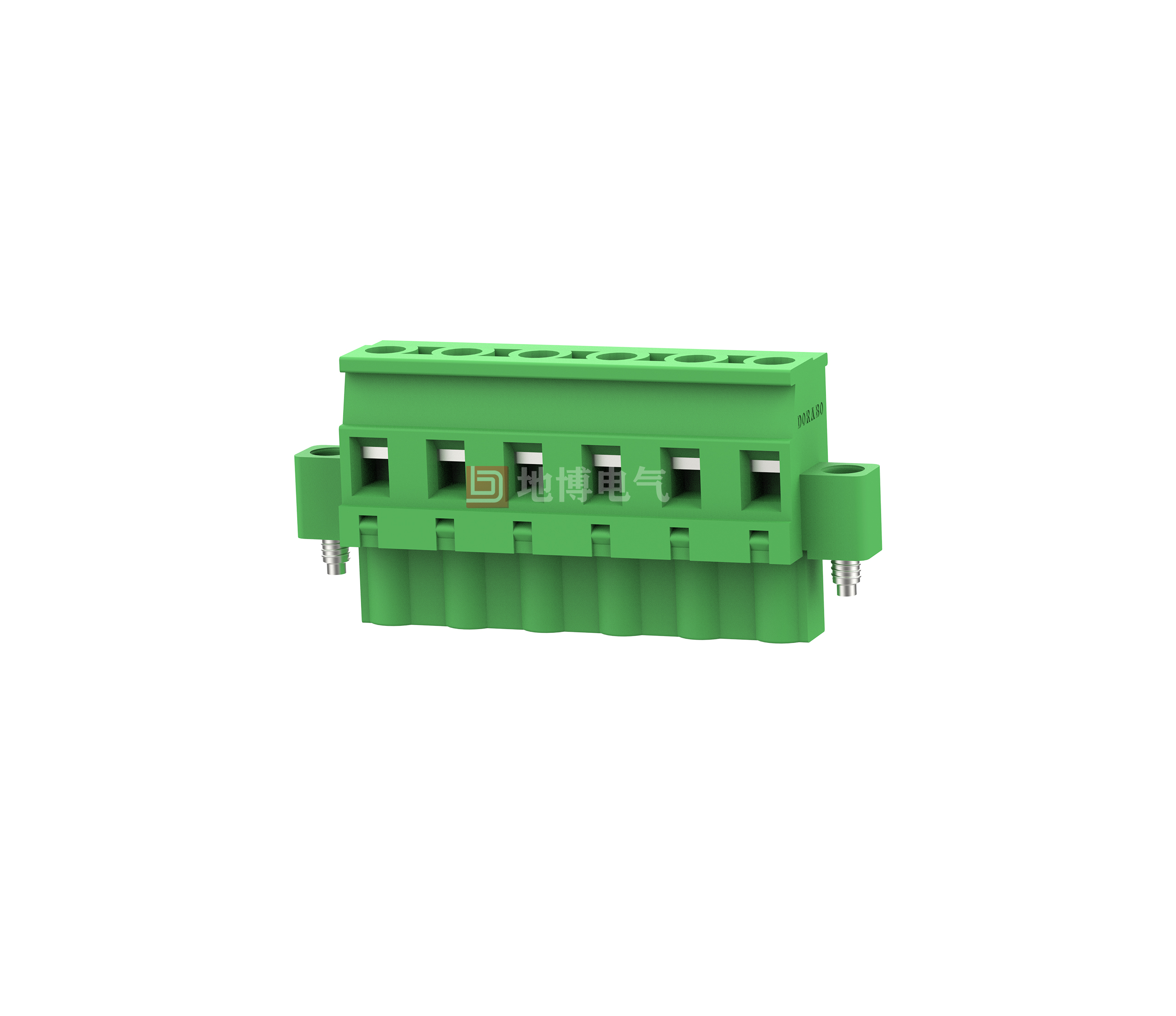

PCB Pluggable Connectors DB2EKBM-7.62

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: Green, Rated current: 12 A, Contact surface: Tin, Contact type: Hole connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connection capacity: 2-16, Series: DB2EKBM, Pin pitch: 7.62 mm, Wiring method: Screw connection with tab, Screw head size: L slotted, Closure: - Latch, Plug-in system: COMBICON DB2EKBM, Interlocking: Screw fastening, Mounting: Threaded flange Connection direction: -90°, Clamping: - locking, Insertion system: COMBICON DB2EKBM, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton

Advantage

☑Universal connection for worldwide use
☑Meets the more stringent safety requirements for "Ex eb" protection (meets the requirements of IEC 60079-7 for potentially explosive hazardous areas)
☑Bolt flanges guarantee a high degree of mechanical stability
☑Maximum contact force and low temperature rise
0
Views: 444
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    500 630 1000
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.5，7.62/2-16
    Stripping Length [mm]
    9-10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

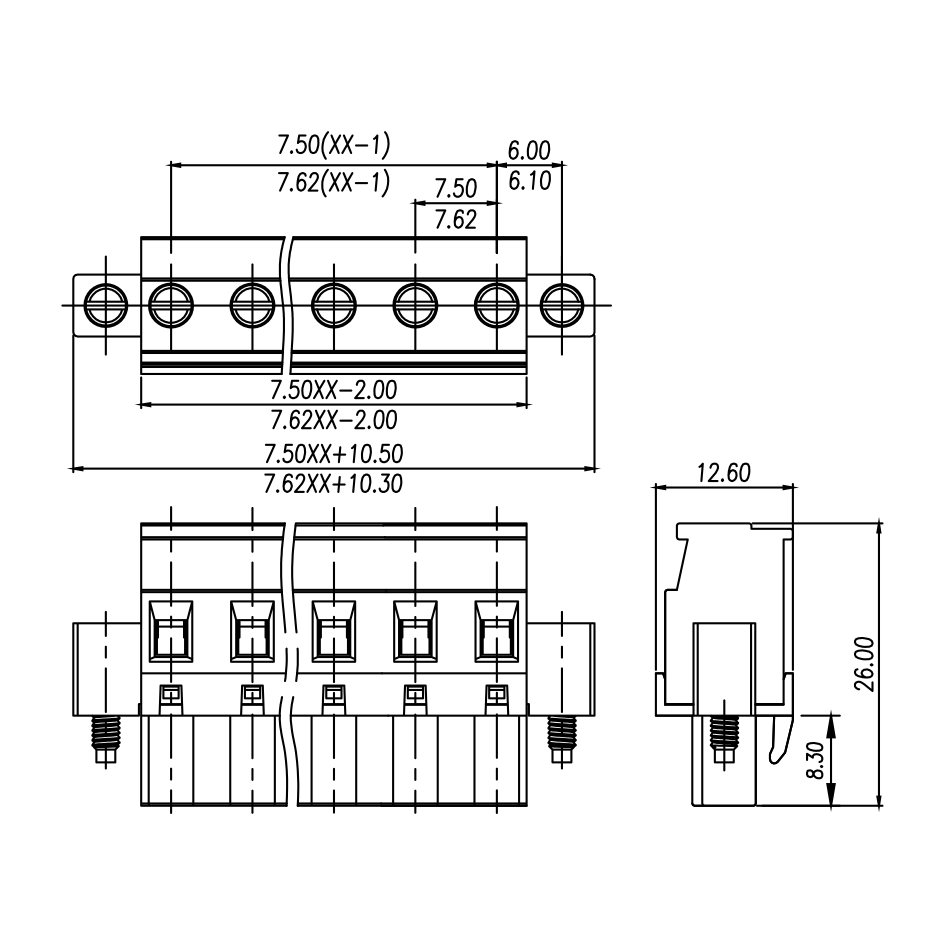

    Size Chart
