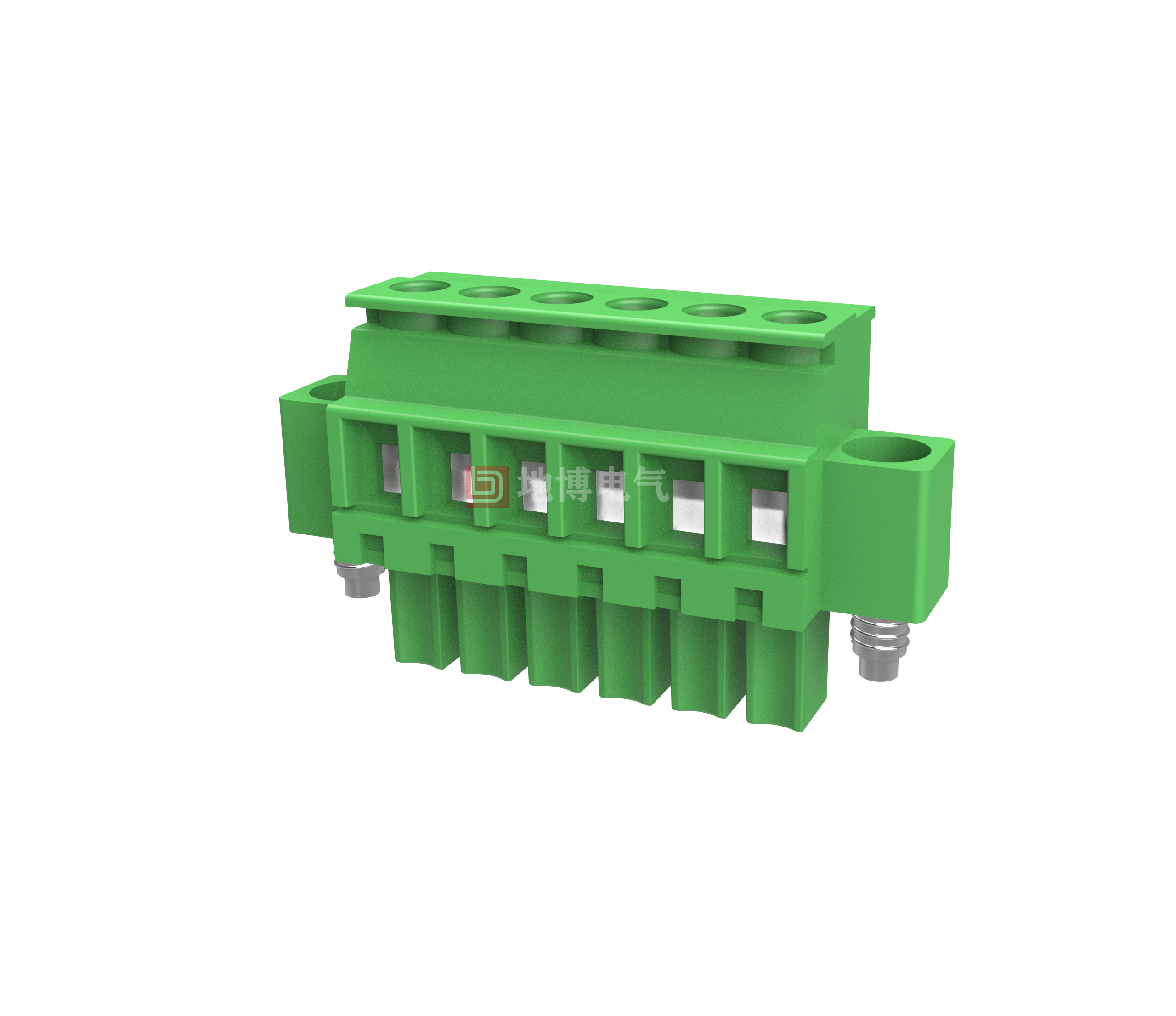

PCB Pluggable Connectors DB2EKBM-3.5

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKBM, Pin pitch: 3.5 mm, Wiring method: Screw connection with crimp, Screw head size: L slot, Wire/PCB connection direction: -90°, Number of solder pins per potential: 1 Screw connection with tabs, Screw head size: L slotted, Wire/PCB connection direction: -90°, Number of pins per potential: 1, Insertion system: COMBICON DB2EKBM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantage

☑Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Allows connection of two stranded wires
☑Bolt flanges guarantee a high degree of mechanical stability
0
Views: 326
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2-24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

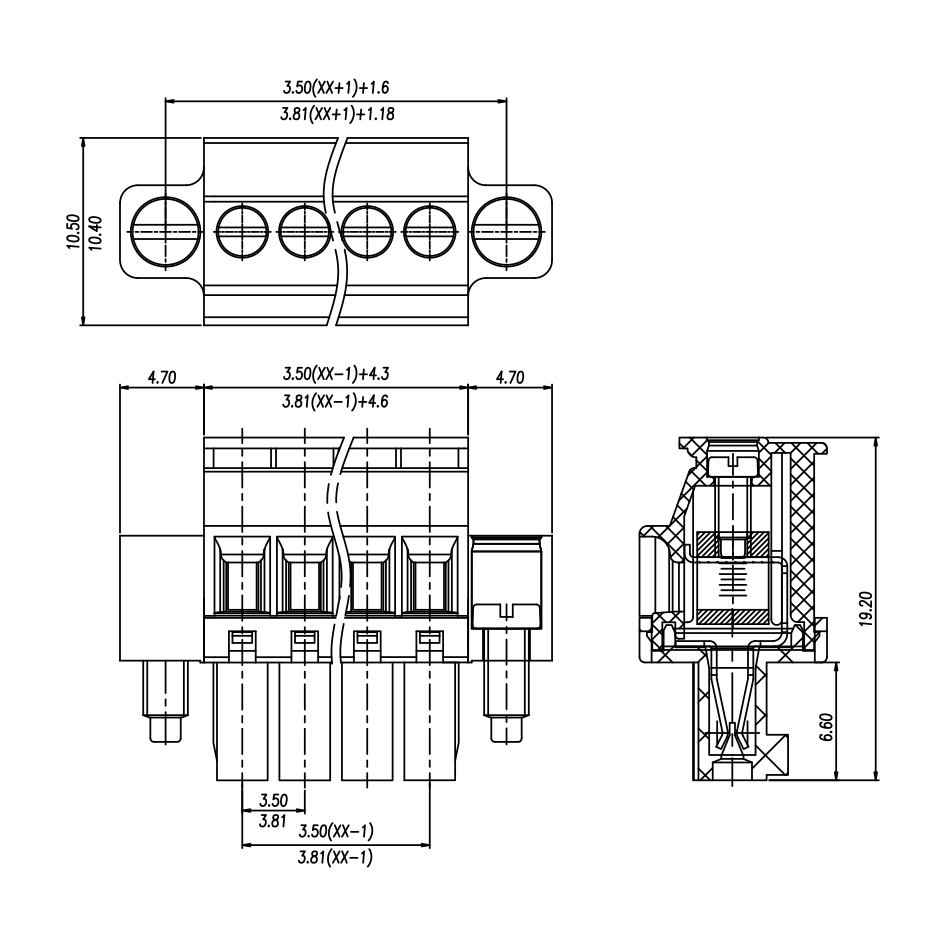

    Size Chart
