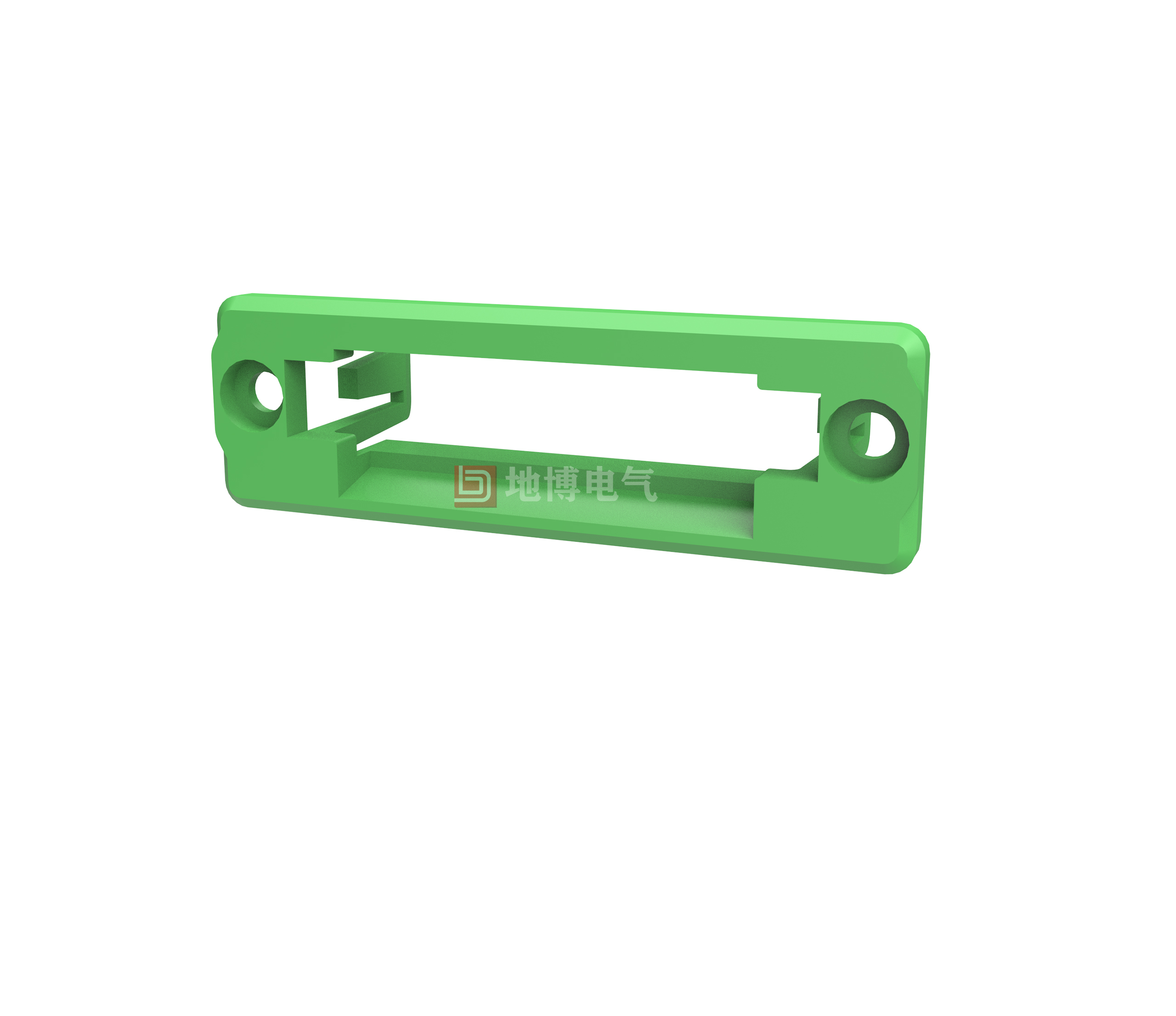

PCB plug-in connector frame DB2EWC-5.08

Pluggable connector frame, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Series: DB2EWC, Pin spacing: 5.08 mm, Wiring pattern: Screw connection with tab, Screw head size: L slot, Wire/PCB connection direction: 0°, Closure: - without latch, Mating system: COM : 5.08 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latch: - without latch, mating system: COMBICON DB2EWC, Interlock: without, Mounting: without, Package type: Carton

Advantages

☑ Universal connection for worldwide use
☑Using plug-in modules, PCBs can be easily changed
☑Reverse connector with multiple pin pins to provide anti-touch protection for device outputs or free hanging wire-to-wire connections
☑Can be used in combination with DB2EKM DB2EKRP series connectors
☑Maximum contact force with low temperature rise
0
Views: 313
Contact usDownload PDF View 3D Download CAD

  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

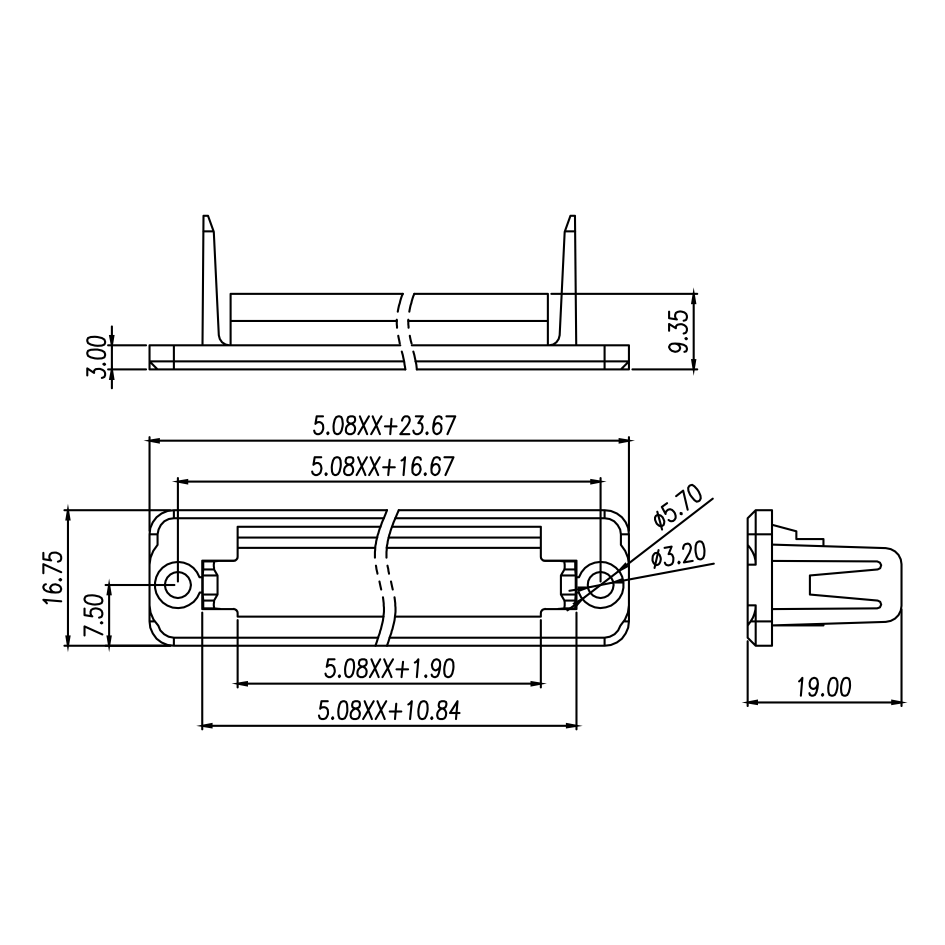

    Size Chart
