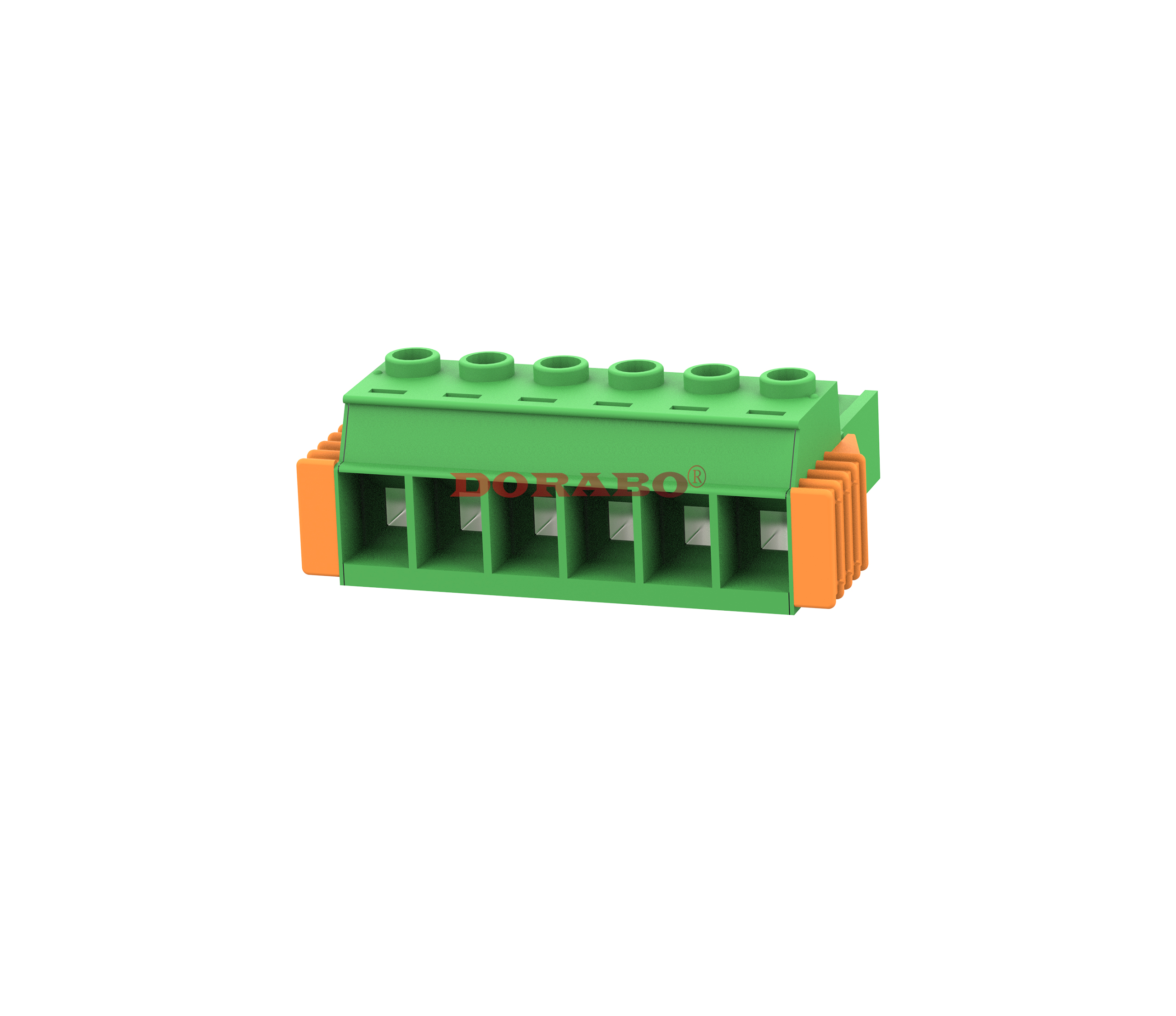

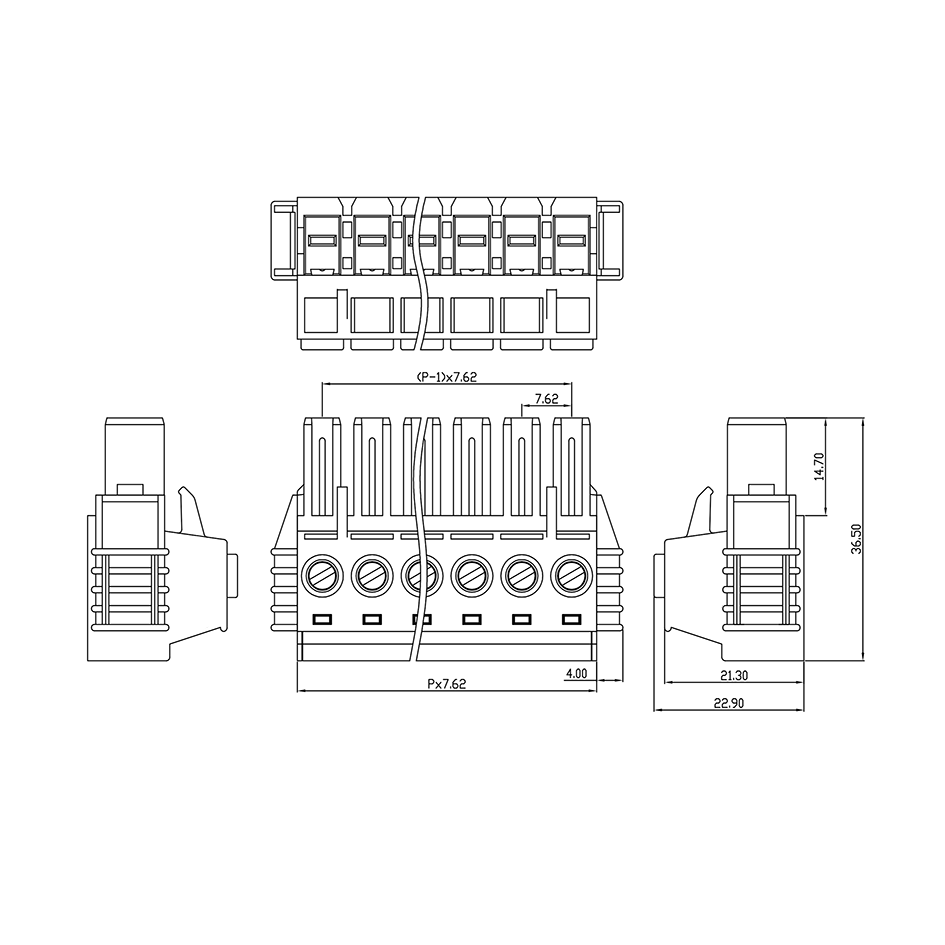

PCB connector, Rated cross-section: 6 mm 2, color: green, Rated current: 41 A, Rated voltage (III/2): 1000 V, Contact surface: Tin, Contact type: Socket plug, Potentials: 2-12, Number of rows: 1, Number of positions: 2-12, Connections: 2-12, Product range: DB3EKHG, Pitch: 7.62 mm, Connection: Screw connection with pressed sheets, Screw head size: H1L Phillips grub screws, for Torx slotted screwdriver, wire/PCB connection direction: 0 °, latch: - without latch, plugging and unplugging system: COMBICON DB3EKHG, interlock: locking device, mounting: Click & Lock bayonet, packaging type: carton
Advantage
☑ Universal connectivity for worldwide use
☑ Maximum contact force, low temperature rise
☑ It is allowed to connect two stranded wires
☑ The built-in steel double reed increases the reliability of the connection, especially in the presence of temperature and power fluctuations
☑ UL listed for 600 V in the smallest size
☑ The automatic plug-and-lock system prevents accidental disconnection
