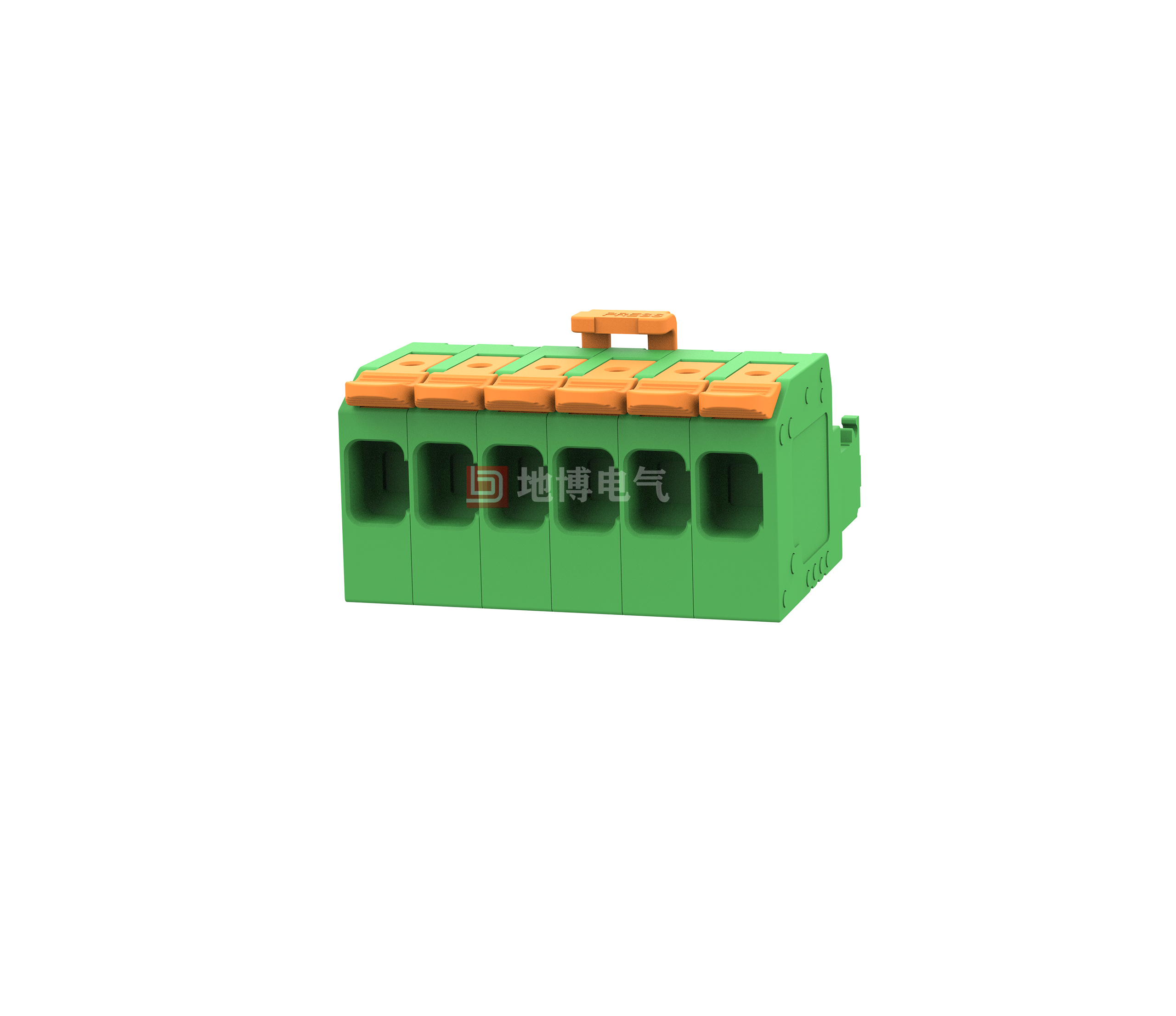

Pluggable connector, Cross-sectional rating: 6 mm2, Color: Green, Current rating: 41 A, Voltage rating (III/2): 1000 V, Contact surface: Tin, Contact type: Hole connector, Number of potentiometers: 2-12, Number of rows: 1, Number of digits: 2-12, Connections: 2-12, Series: DB3EKDL, Pin pitch: 7.62 mm, Wiring Pattern: In-line connection, Wire/PCB connection orientation: 0°, Latches: - without latch, Interpolation system: COMBICON DB3EKDL, Interlocking: without, Mounting: without, Packing type: Carton
Advantages
☑With tool-less lever, saves a lot of time when connecting and releasing with/without sleeve leads with/without sleeve
☑The lever position is clear at a glance and provides reliable feedback on whether the wiring area is open or closed
☑set contact force ensures stable contacts over time
☑saves time by enabling plug-and-play connections by closing the lever
☑Enhanced protection against electric shock, meets IEC /UL 61800-5-1 standard
