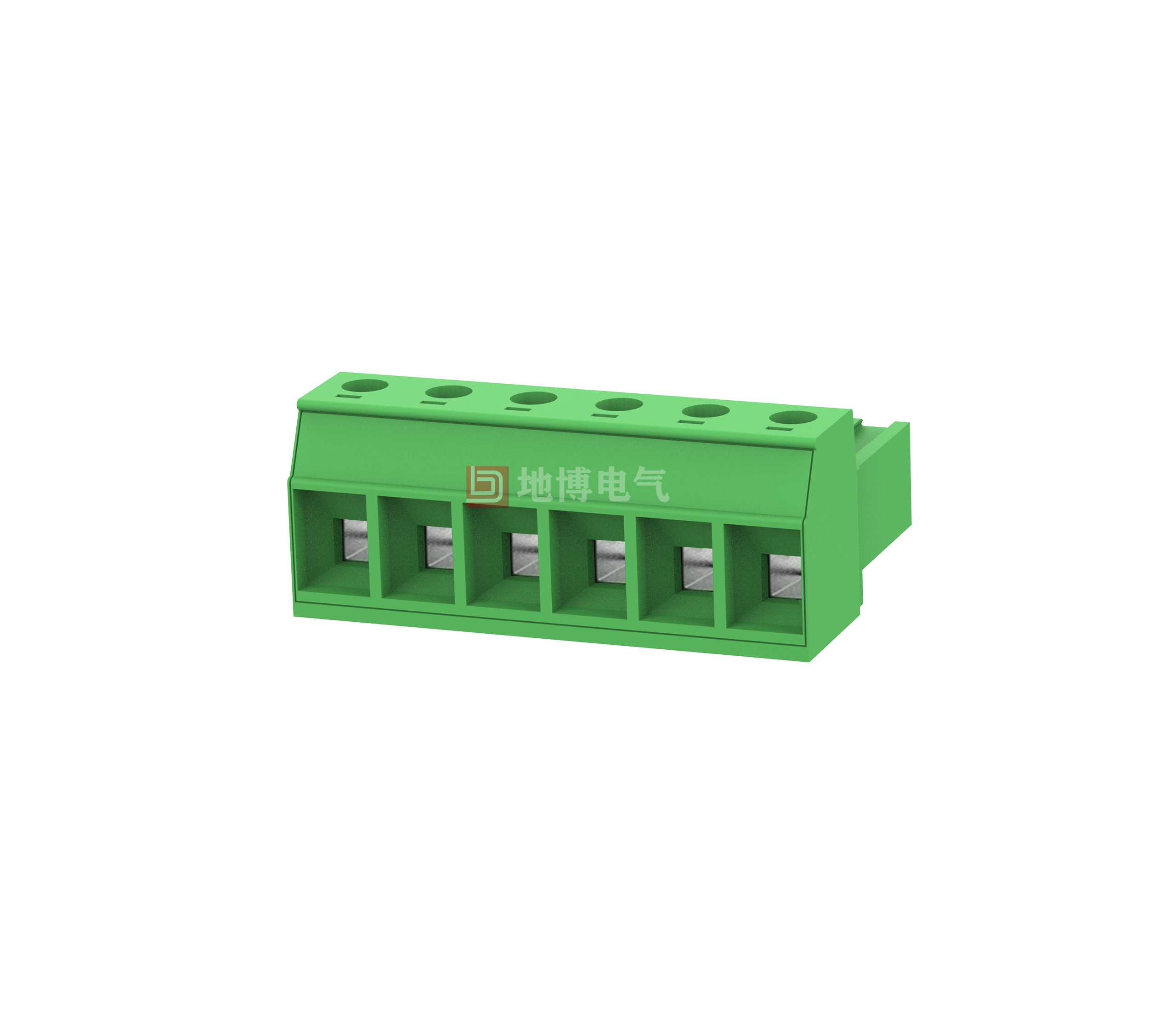

PCB plug-in connector DB3EK-7.62

Pluggable connector, Cross-sectional rating: 4 mm2, Color: Green, Current rating: 20 A, Voltage rating (III/2): 630 V, Contact surface: Tin, Contact type: Hole connector, Number of potentiometers: 2-16, Number of rows: 1, Number of digits: 2-16, Connections: 2-16, Series: DB3EK, Pin pitch: 7.62 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latches: - Latches, mating system: COMBICON DB3EK, Interlocking: without, Mounting: without, Package type: Carton

Advantages

☑Universal connectivity for global use
☑Maximum contact force with lower ramp-up lower
☑ allows two stranded wires to be connected
☑Built-in steel double reed improves connection reliability, especially in the presence of temperature and power fluctuations
0
Views: 339
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    30 - 10
    Wire Range [AWG]
    28-10
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 1000
    Rated Current [A]
    20 20 20
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5-4



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-16
    Stripping Length [mm]
    8-9
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

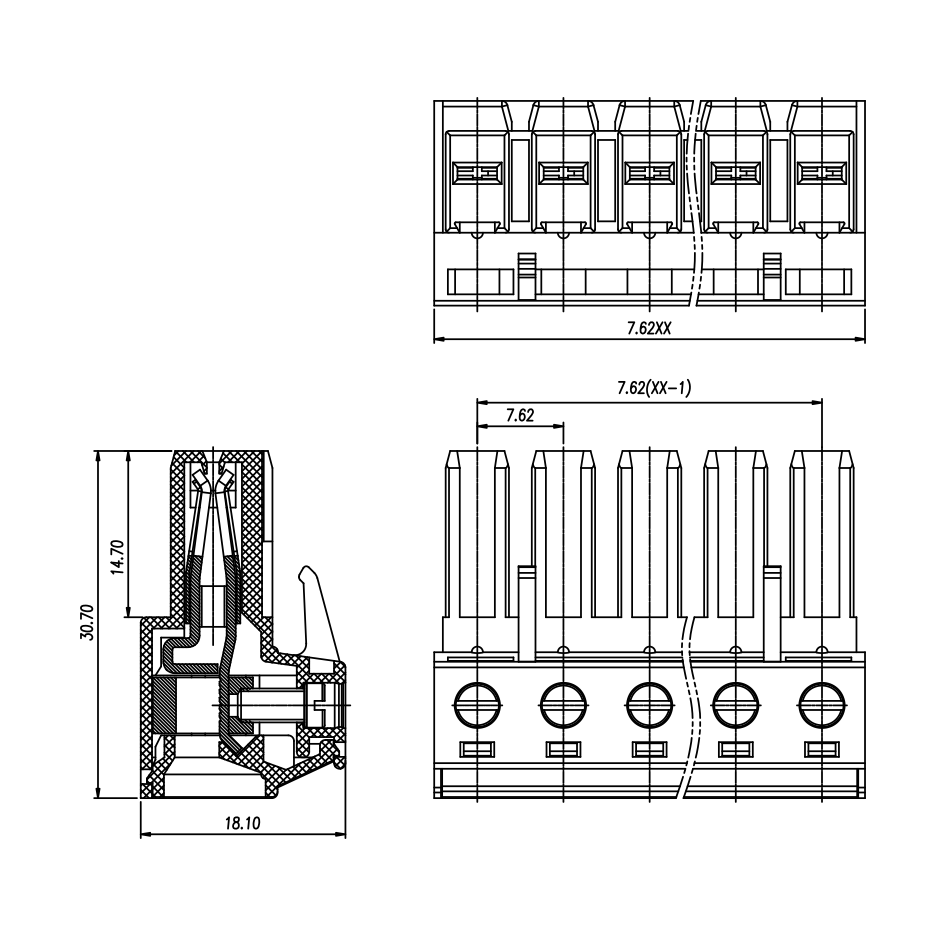

    Size Chart
