PCB plug-in connector DB3EKR-7.62

PCB connector, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2-16, number of rows: 1, number of positions: 2-16, number of connections: 2-16, product range: DB3EKR, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: Z1L Slotted Pozidriv, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON DB3EK, locking: without, mounting: without, type of packaging: packed in cardboard

Advantages

☑Well-known connection principle allows worldwide use

☑Low temperature rise, thanks to maximum contact force
☑Allows connection of two conductors
☑Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
☑600 V UL approval in the smallest of dimensions
0
Views: 339
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 /
    Rated Current [A]
    41 41 /
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    / 2 /
    Rated Voltage [V]
    / 100 /
    Rated Current [A]
    / 41 /
    Impulse withstand voltage [KV]
    / 6 /
    Conductor cross section [mm²]
    0.2-6.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-12
    Stripping Length [mm]
    10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

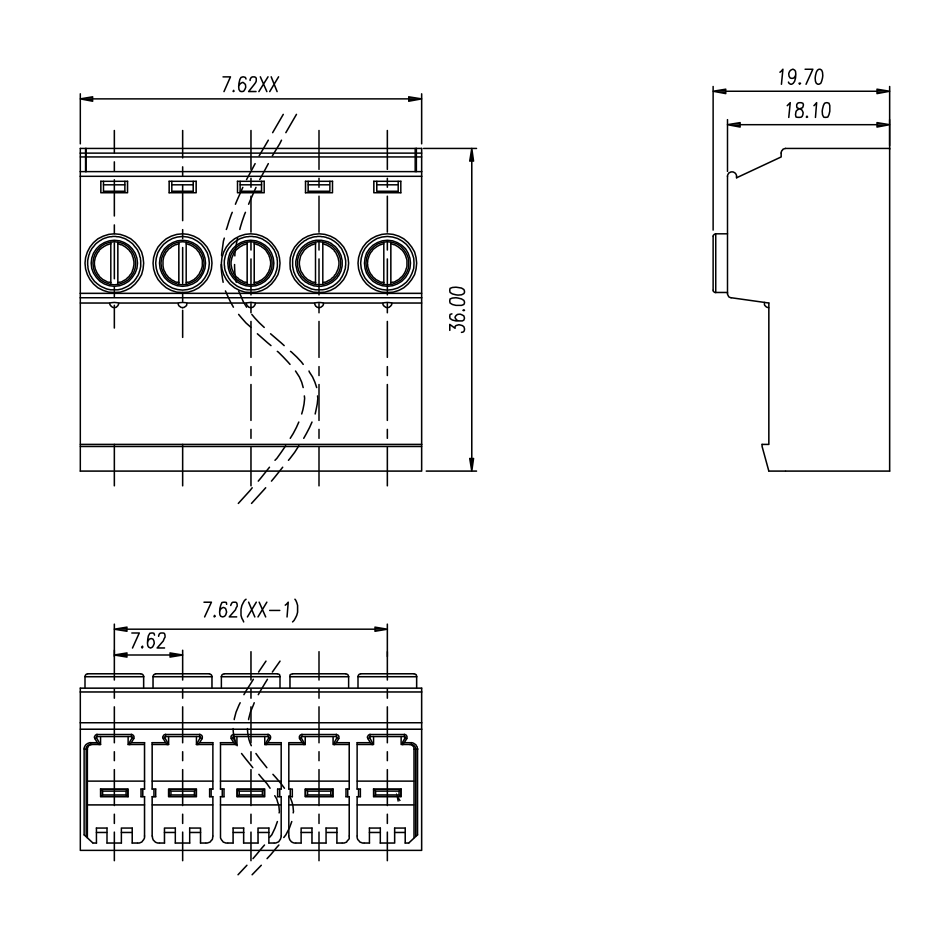

    Size Chart
