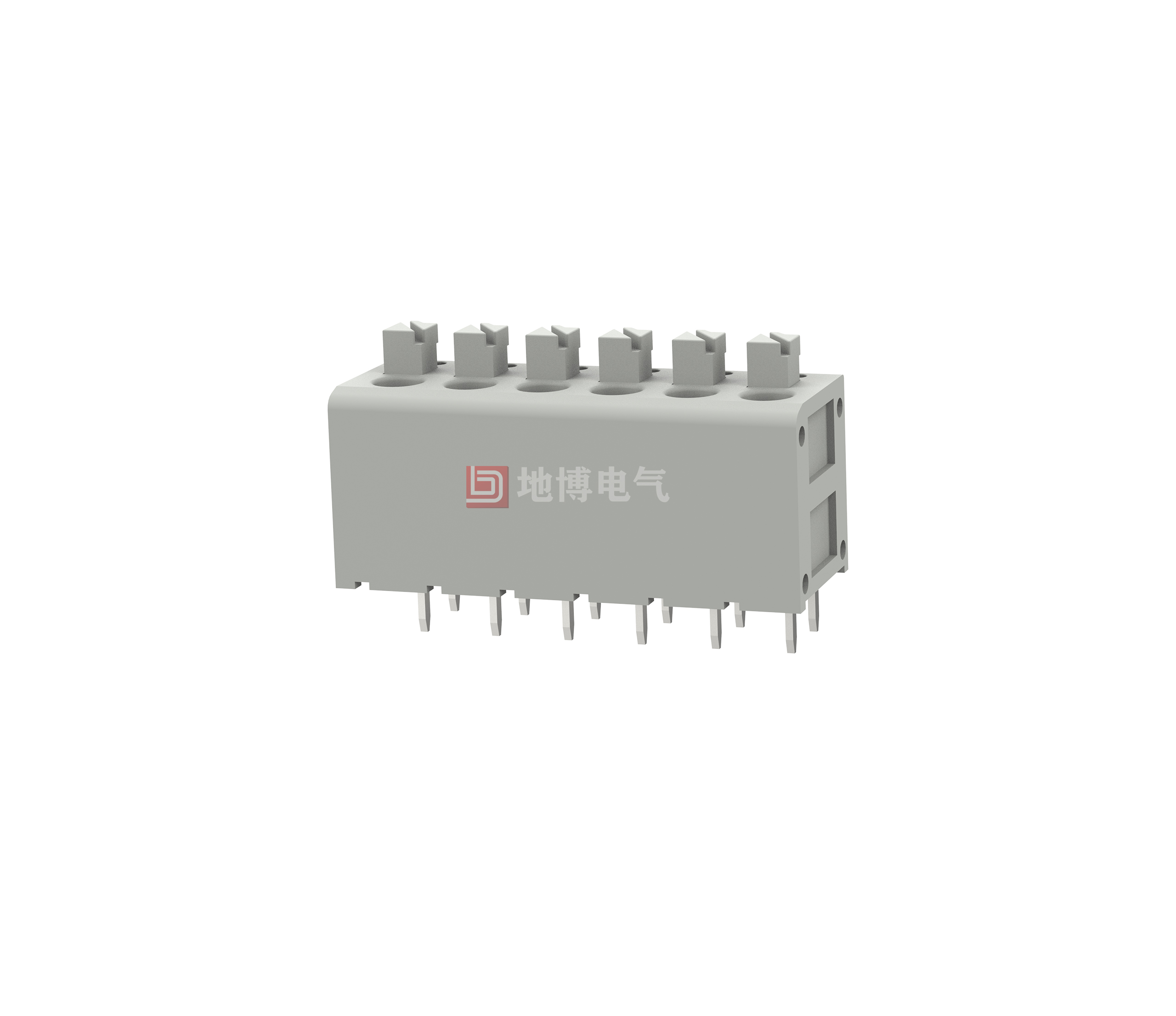

PCB plug-in connector DB331W-5.0

Pluggable connector, Cross-sectional rating: 1.5 mm2, Color: Green, Current rating: 10 A, Voltage rating (III/2): 400 V, Contact surface: Tin, Contact type: Hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Series: DB331W, Pin pitch: 5 mm, Wiring pattern: Screw connection with tab, Screw head size: L slotted, Wire/PCB contact orientation: 0°, Mating system: COMBICON DB31W, Interlocking: without, Mounting: without, Package type: 0°, Mating system: COMBICON DB31W, Interlocking: without Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Plug-in system: COMBICON DB31W, Interlocking: without, Mounting: without, Packing type: Carton

Advantages

☑Universal connectivity for global use

☑s maximum contact force with lower ramp
☑square connector with high wiring capacity
☑Features CLIP geometry that snaps into the device housing
0
Views: 403
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    28~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~1.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

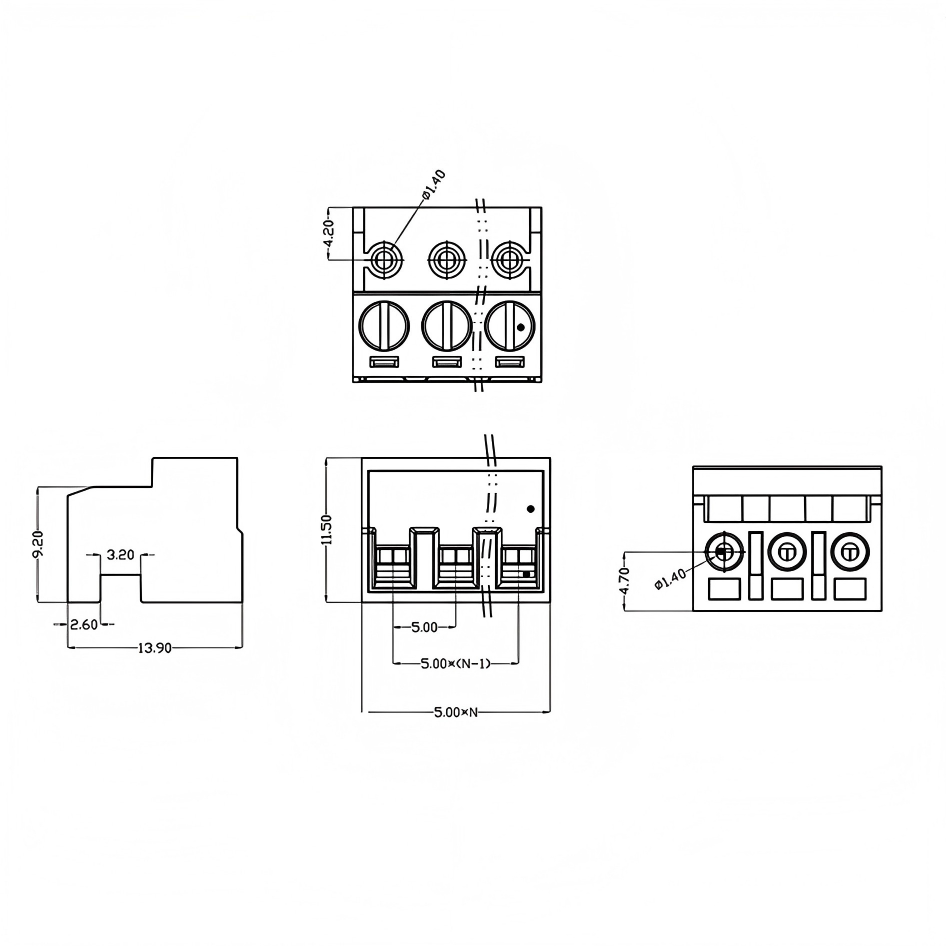

    Size Chart
