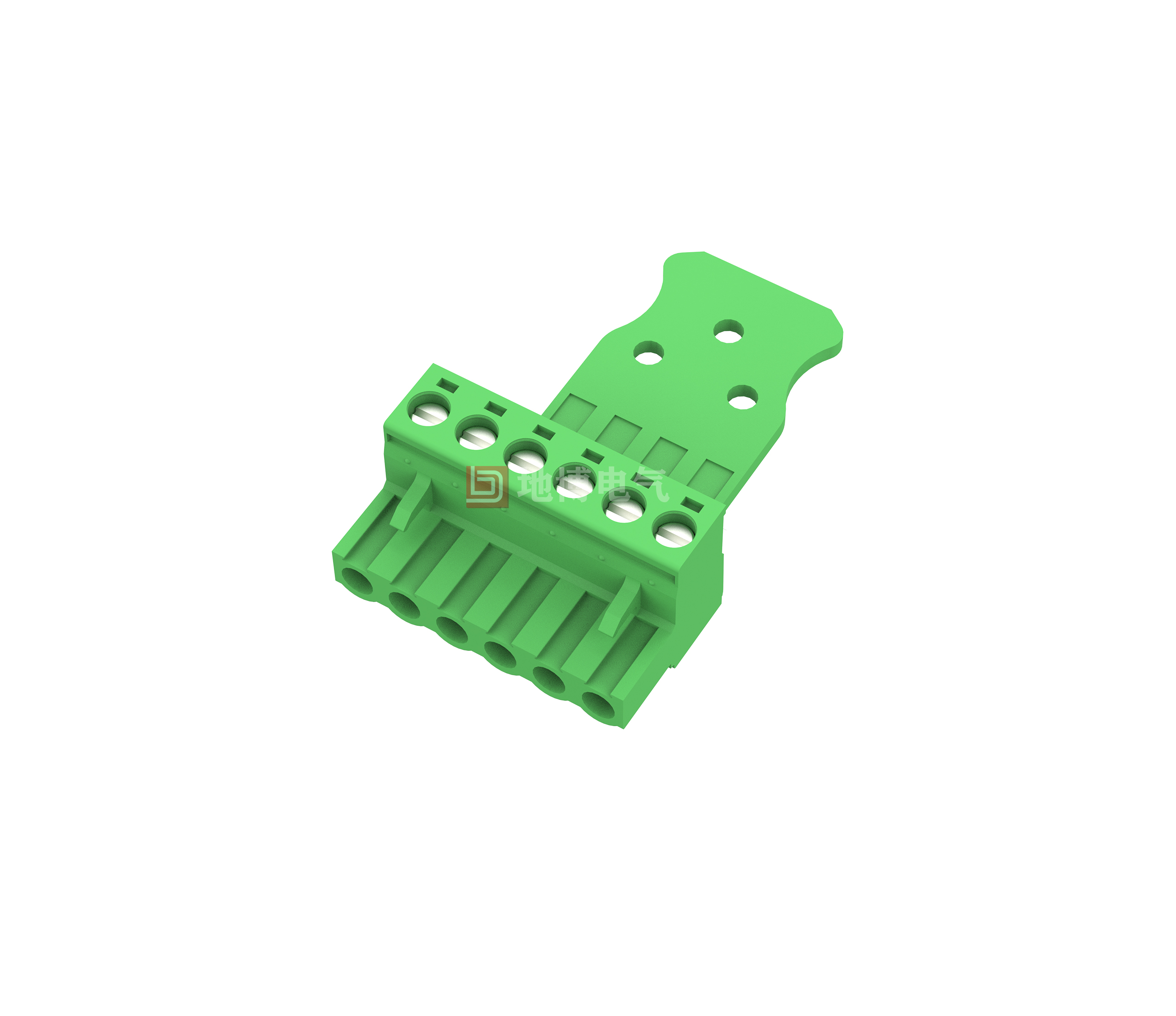

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Nominal operating current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKZ, Pin pitch: 5.08 mm, Wiring method: Screw connection with tabs, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latch: - latch, Insertion system: COMBICON DB2EKZ, Interlocking: without, Mounting: without, Packing type: carton
Advantage
☑ Universal connection for worldwide use
☑ Extraction aid allows easy handling and reduces tension at the contacts
☑ Allows connection of two stranded wires
