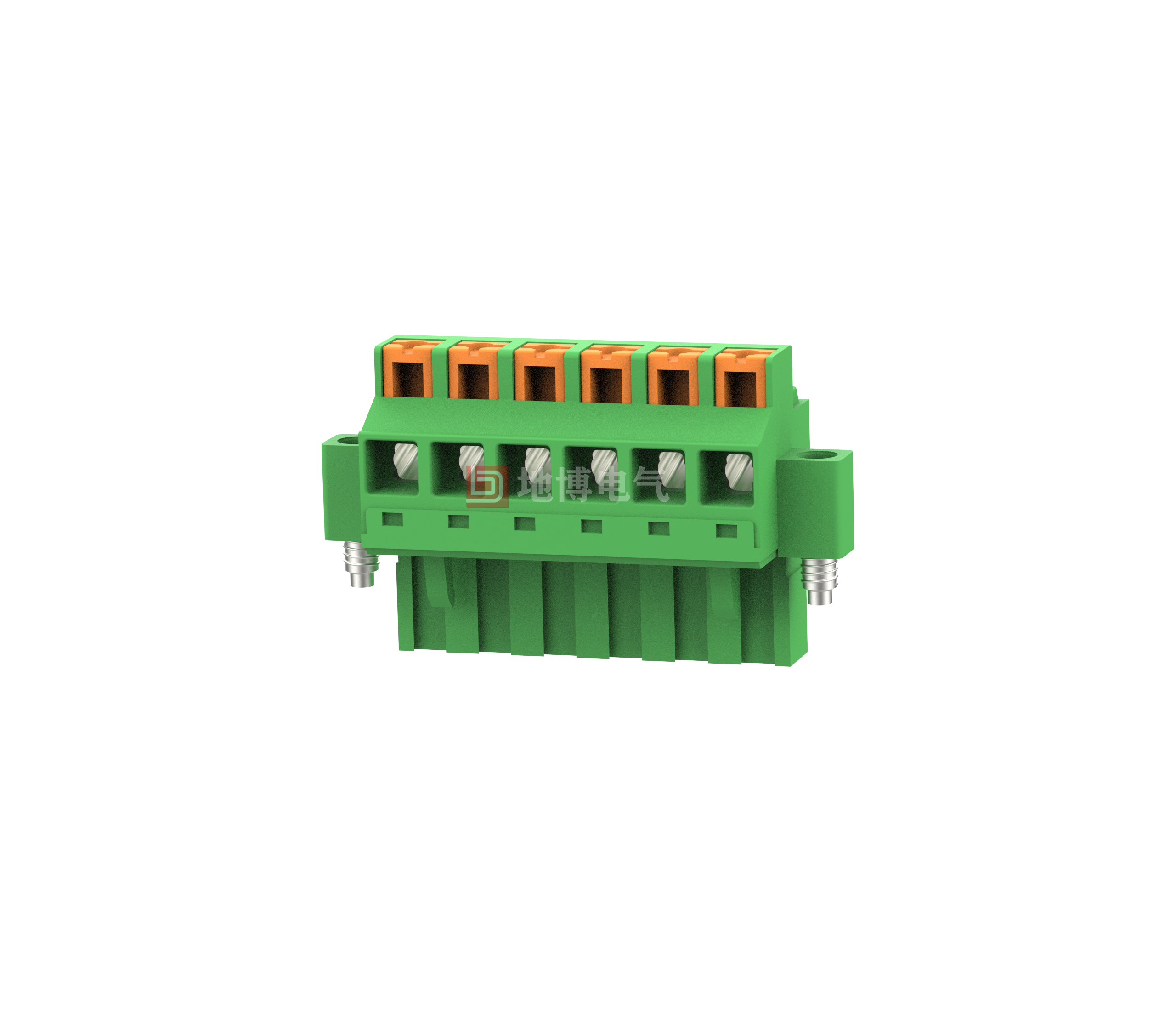

PCB plug-in connector DB2EKYAM-5.08

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKYAM, Pin pitch: 5.08 mm, Wiring method: Direct spring connection, Wire/PCB connection orientation: 90°, Closure: - Closure, Insertion system: COMBICON DB2EKYAM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantage

☑Wire connections perpendicular to the direction of operation, simplifying the wiring of DIN rail mounted equipment
☑Time-saving plug-in connection method, no tools required
☑Colour coded joystick for intuitive use
☑Quick and easy testing with built-in test elements
☑Can be used in combination with DB2E series connectors
☑Bolt flange guarantees high mechanical stability
0
Views: 353
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    500 630 1000
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.08/2~24
    Stripping Length [mm]
    9-10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

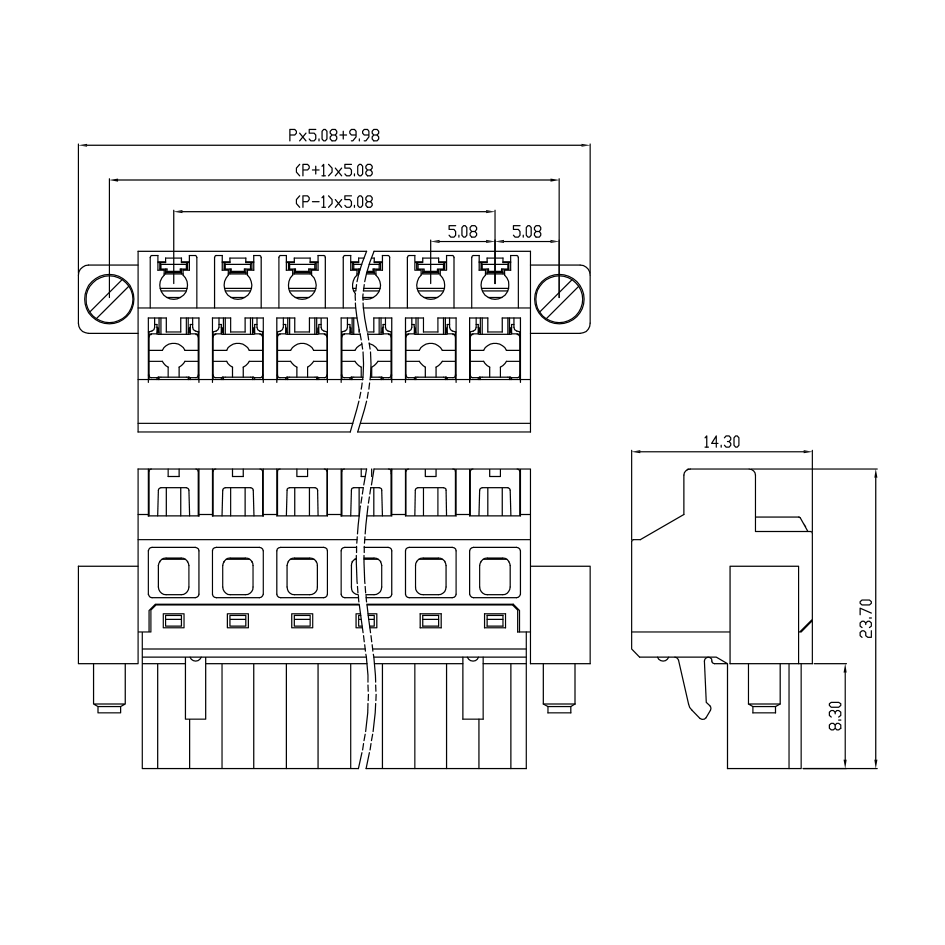

    Dimensional drawings
