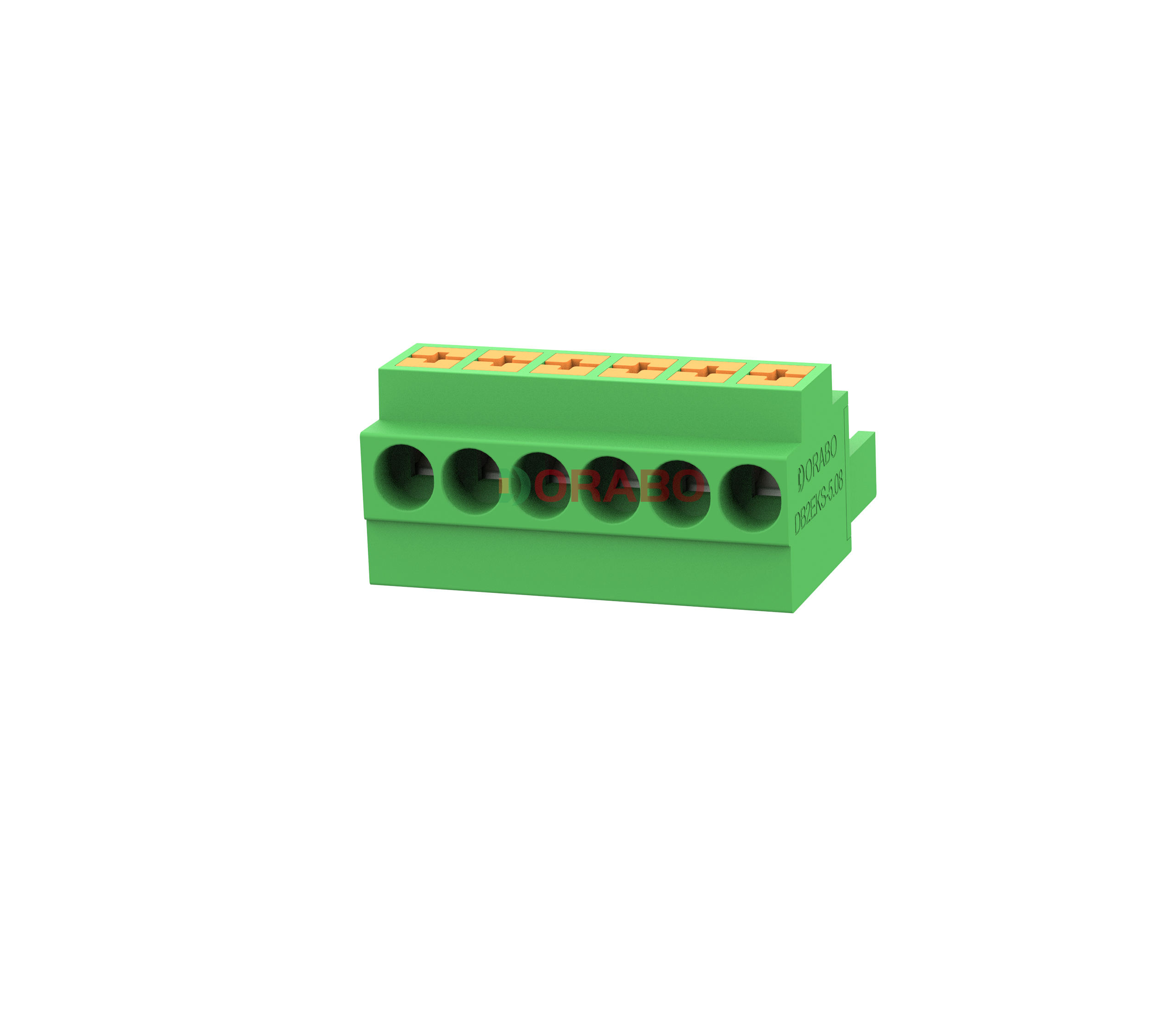

PCB Plug-in Connector DB2EKS-5.08

PCB connector, Rated cross-section: 2.5 mm2, color: Green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: Tin, Contact type: Socket, Potentials: 2-24, Rows: 1, Positions: 2-24, Connections: 2-24, Product family: DB2EKS-5.08, Pitch: 5.08 mm, Connection: Push-in spring, Conductor/PCB direction: 0 °, Latching: - Latching, Plugging system: COMBICON DB2EKS, Interlock: without, Mounting: without, Packing type: Carton

Advantage

☑ Time-saving plug-in connection without tools
☑ Color-coded joysticks make it easy to use intuitively
☑ With the built-in test components, testing can be done quickly and easily
☑ Can be combined with DB2E series connectors
0
Views: 229
Contact usDownload PDF View 3D Download CAD

  •

    Technical data - UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 15
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    18 18 18
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    85.08/2-24
    Stripping Length [mm]
    10-11
     Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

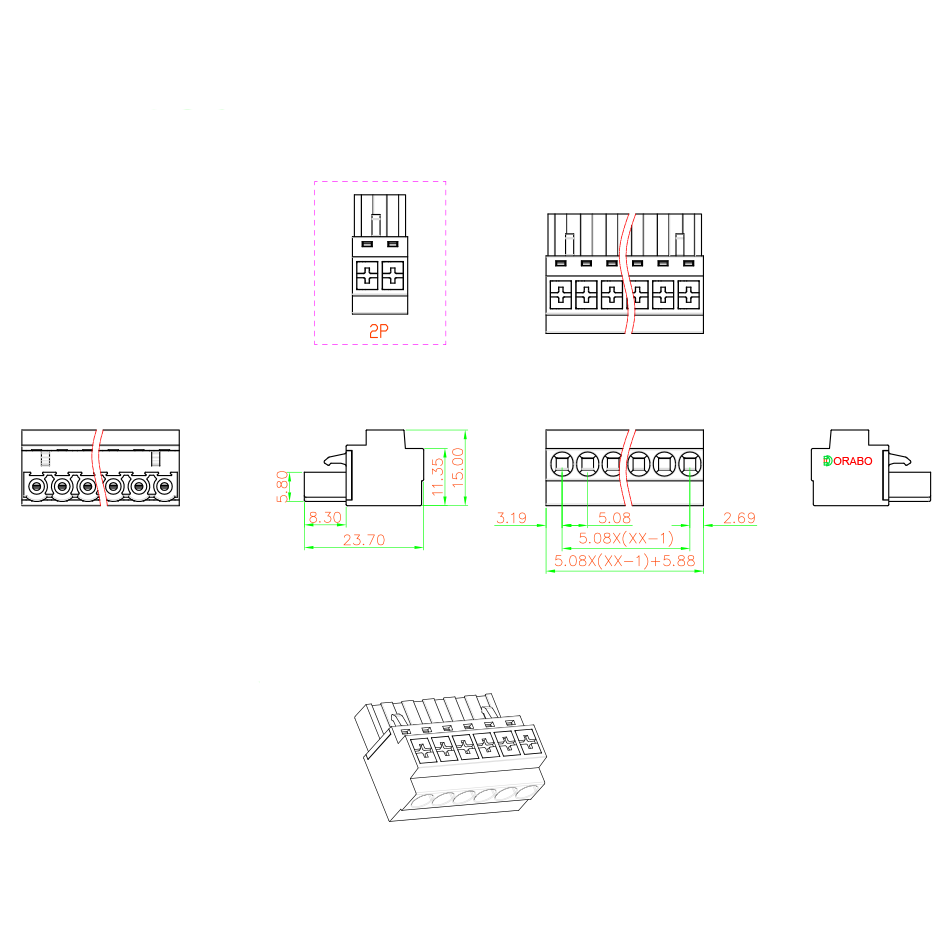

    Dimensional drawings
