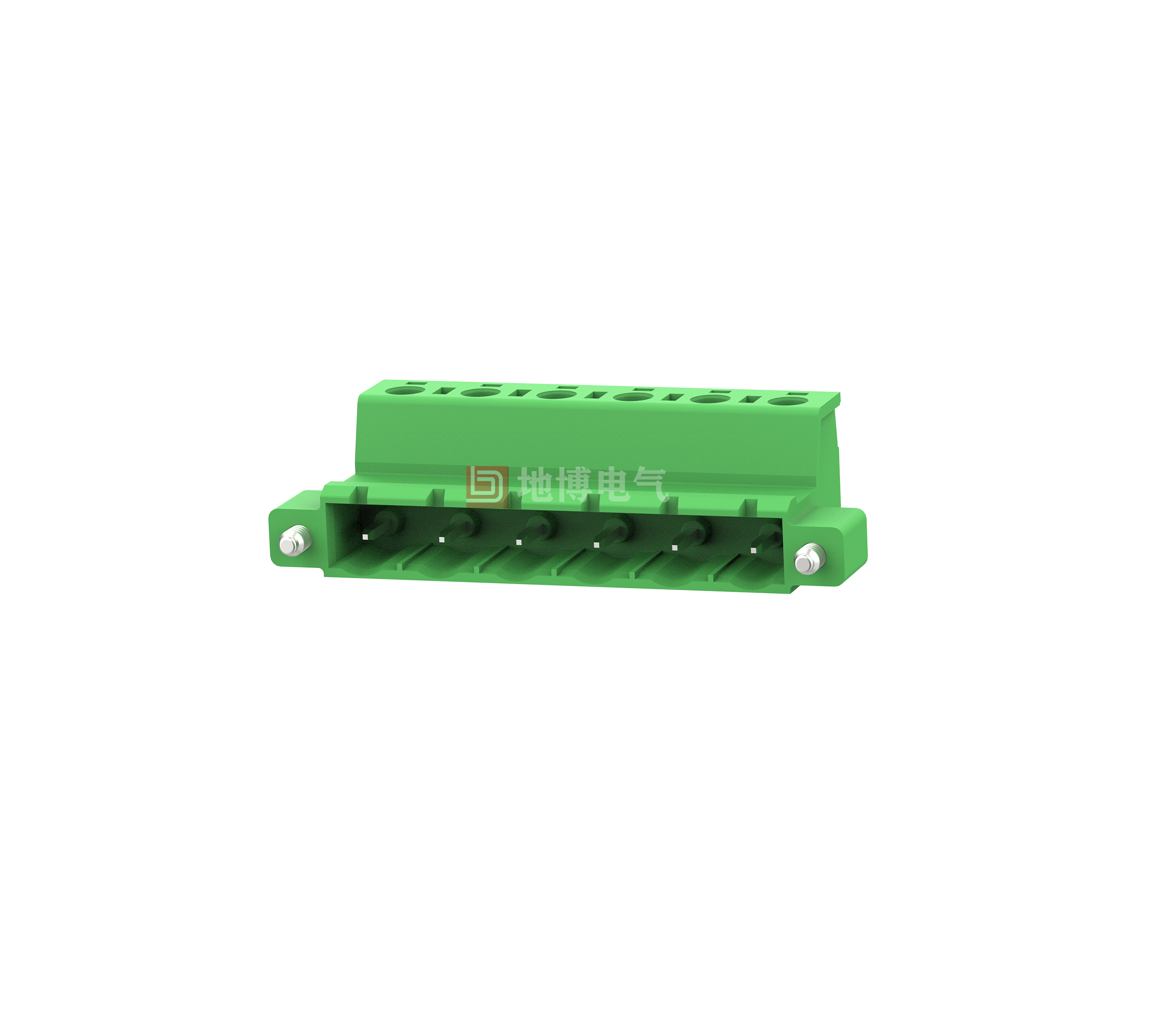

PCB plug-in connector DB2EKRM-7.62

Pluggable connector, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 630 V, Contact surface: Tin, Contact type: Pin connector, Number of potentiometers: 2-16, Number of rows: 1, Number of digits: 2-16, Connections: 2-16, Series: DB2EKRM, Pin pitch: 7.62 mm, Wiring pattern: Screw connection with tab, Screw head size: L slotted, Wire/PCB contact orientation: 0°, Closure: - without latch, Mating system: COM : 7.62 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latches: - without latch, Interlocking system: COMBICON DB2EKRM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantages

☑Universal connectivity for global use
☑s maximum contact force with lower ramp-up
☑Larger pin spacing for increased voltage requirements
☑Reverse connector with multiple pin pins to provide touch-proof protection for device output or free-hanging wire-to-wire connections



0
Views: 320
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 1000
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2~16
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /



    Size Chart
