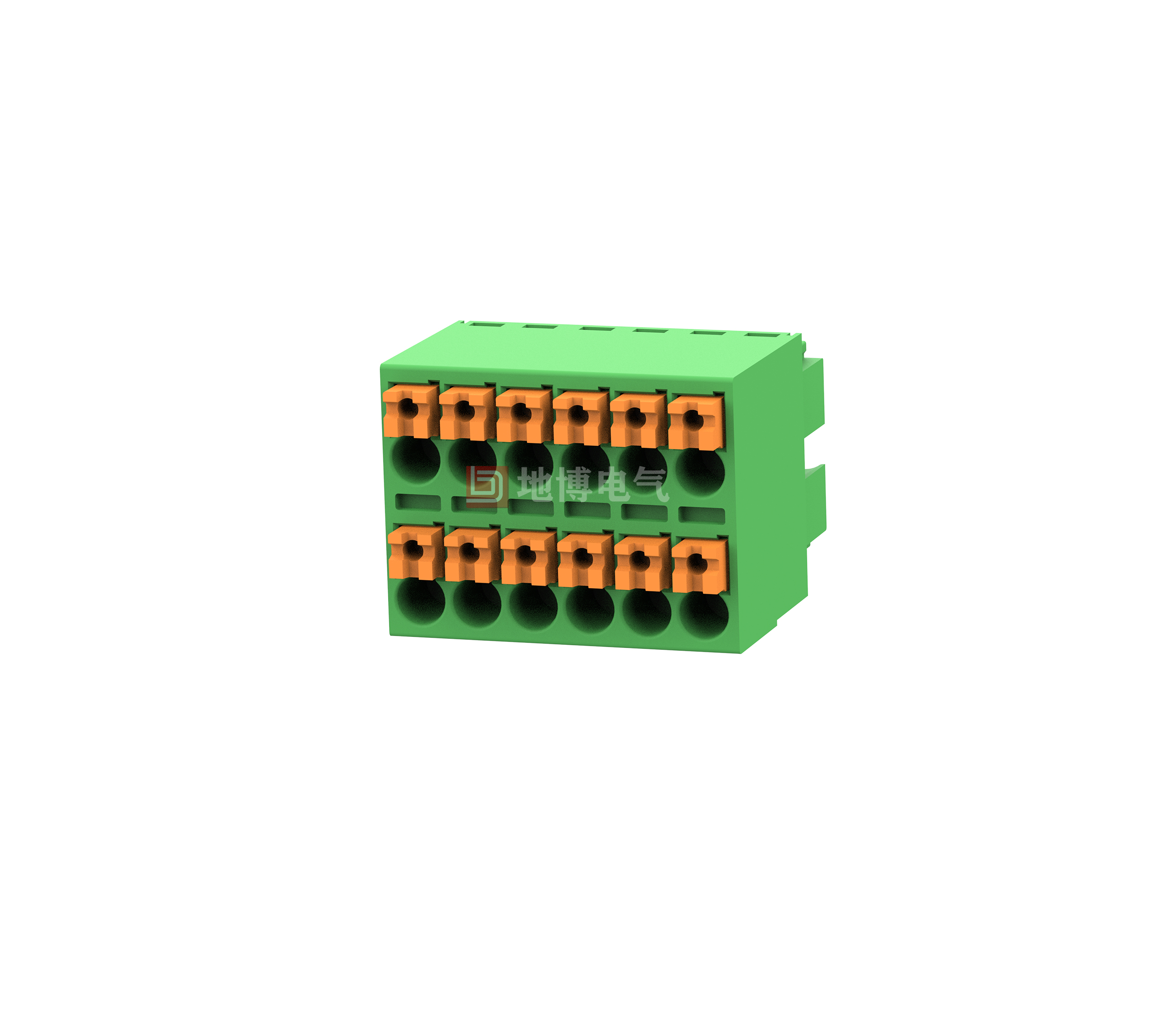

Plug, Rated cross-section: 1.5 mm 2, color: Green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact type: Female connector, Number of potentials: 2-24, Number of positions: 2-24, Number of positions: 2-24, Connection volume: 4-48, product range: DB2EKNN, pitch: 3.81 mm, Connection: Push-in spring connection, Conductor/PCB connection direction: 0 °, Plug-in system: COMBICON DB2EKNN, Interlock: with/out, Mounting: without, Packing type: Carton
Advantage
☑ Time-saving plug-in connection without tools
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Color-coded joysticks make it easy to use intuitively
☑ Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
