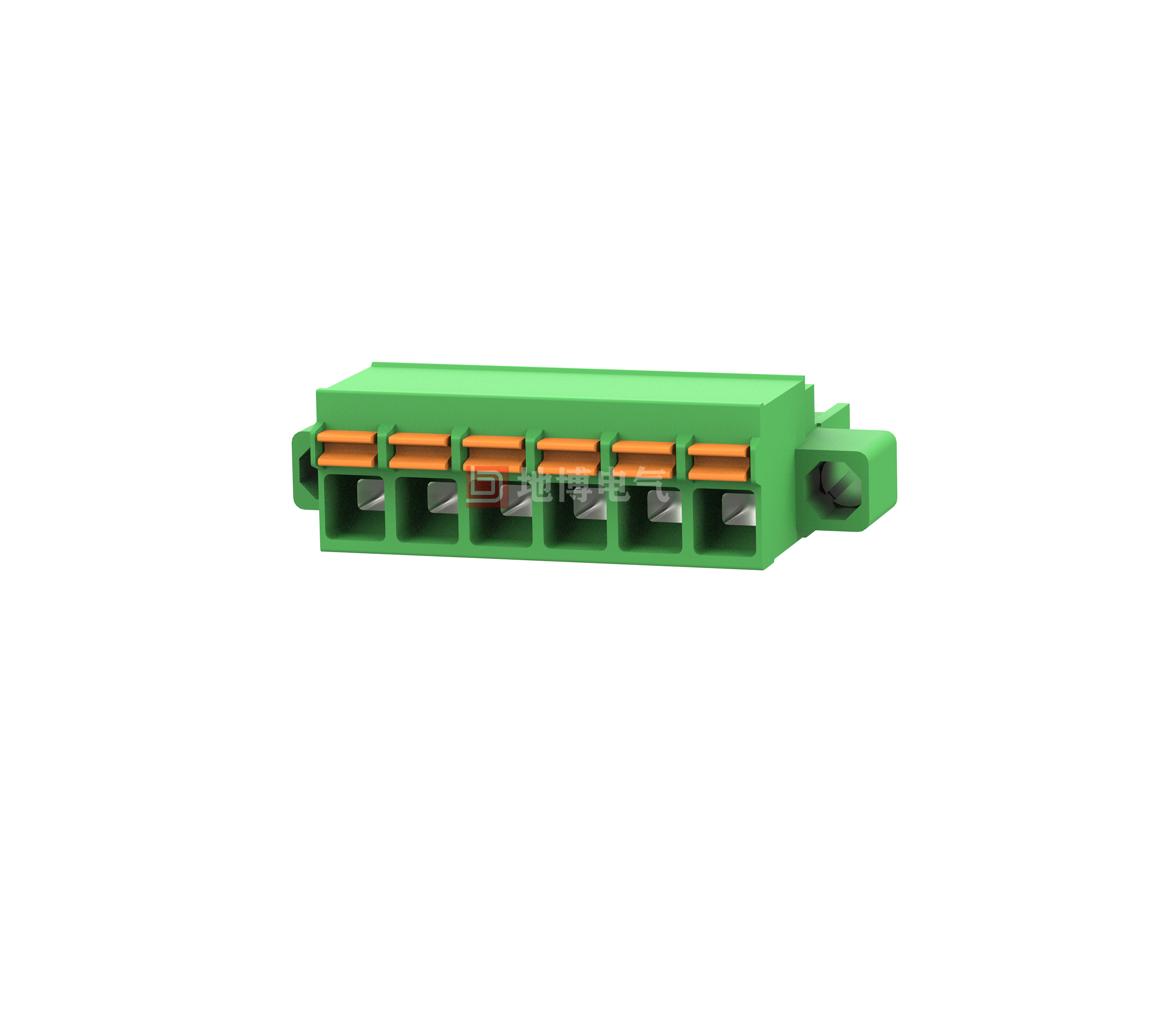

PCB plug-in connector DB2EKNM-5.0

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKNM, Pin pitch: 5.0 mm, Wiring: straight Spring-loaded connection, Wire/PCB connection direction: 0°, Closure: - Closure, Insertion system: COMBICON DB2EKNM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantage

☑Time-saving plug-and-play connection, no tools required
☑Color-coded joystick for intuitive use
☑Minimal design for each wire cross-section
☑Set contact force guarantees stable contacts over time
☑Can be used in combination with DB2E series connectors
0
Views: 486
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    24-16
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    11-12
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

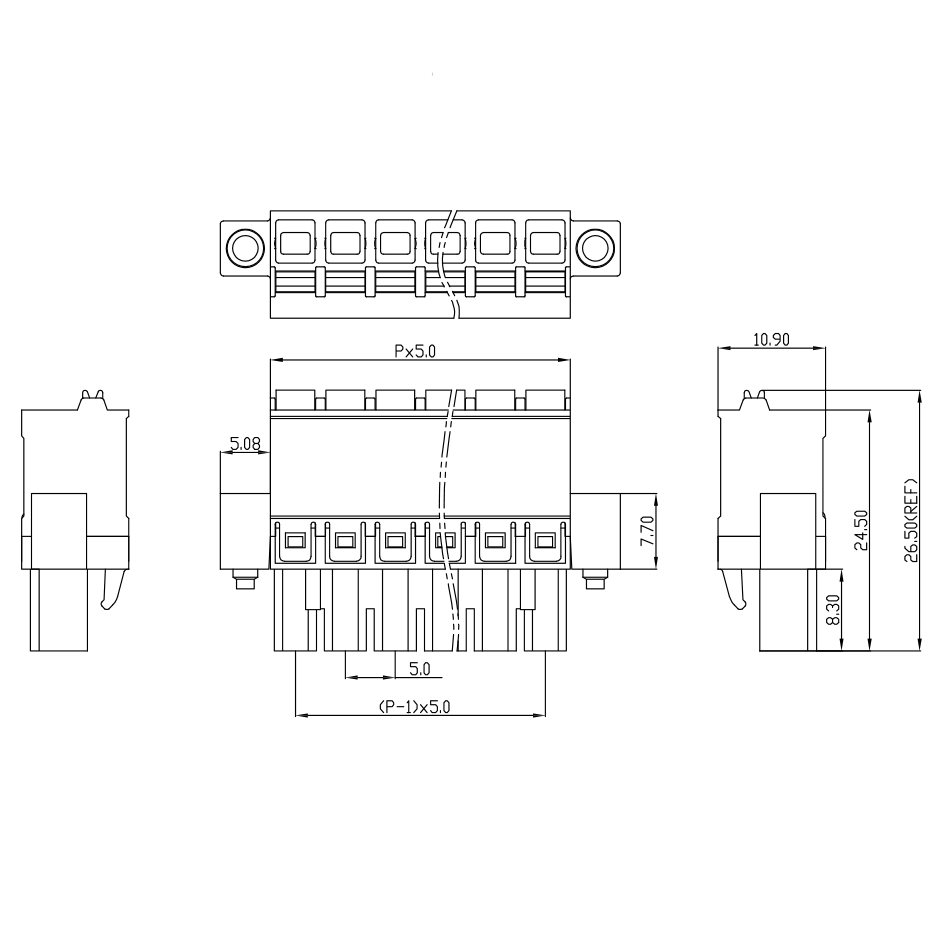

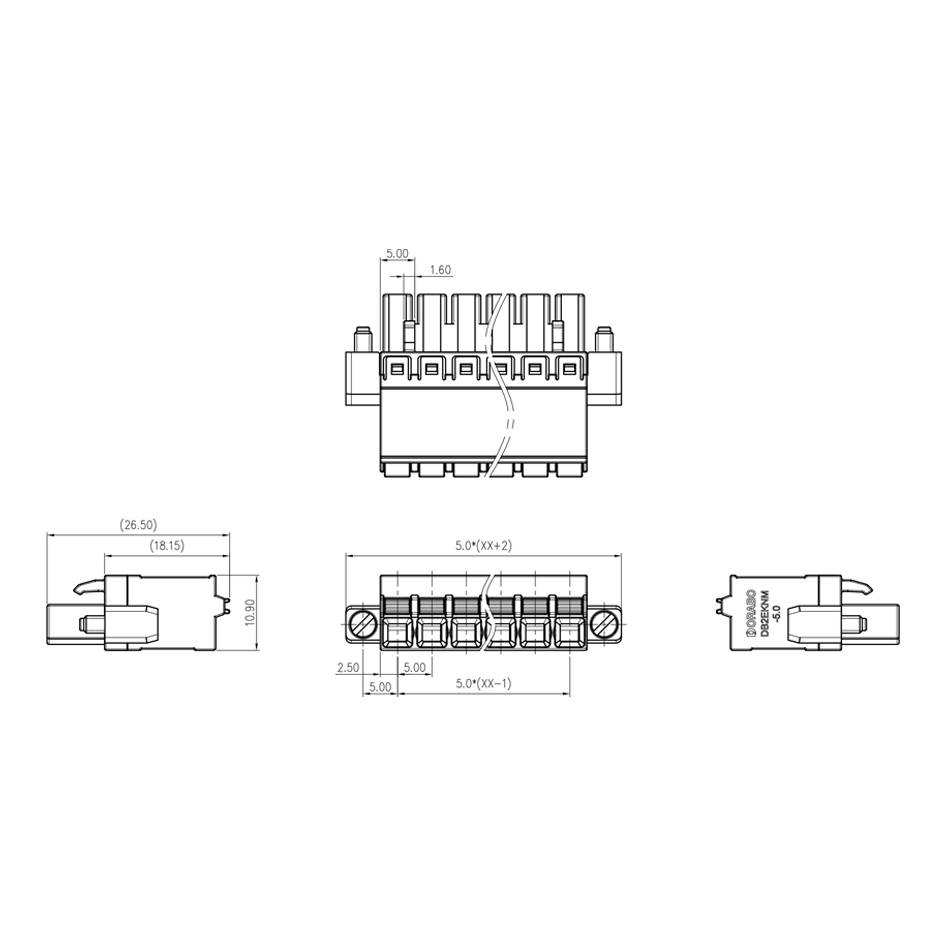

    Size Chart
