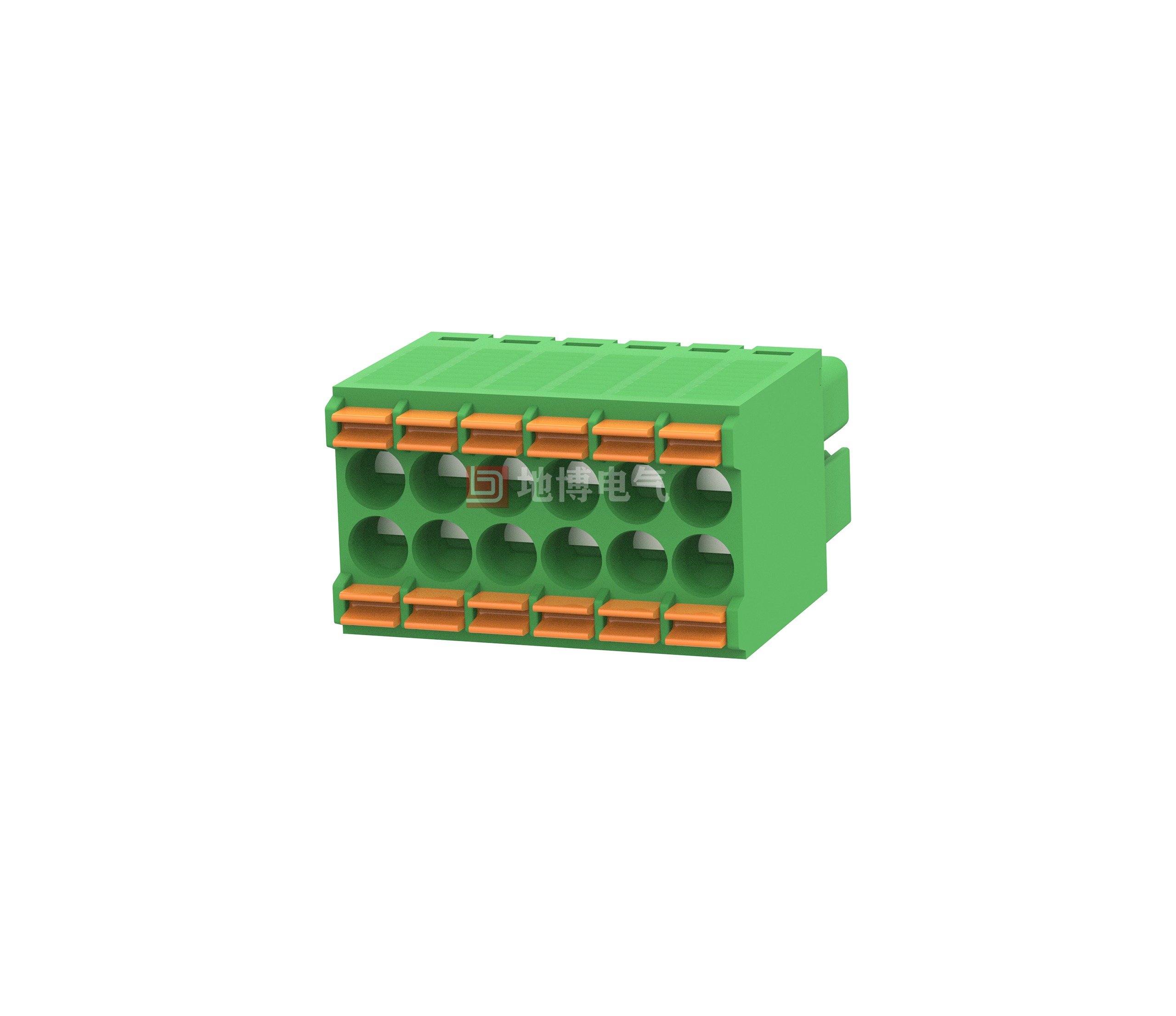

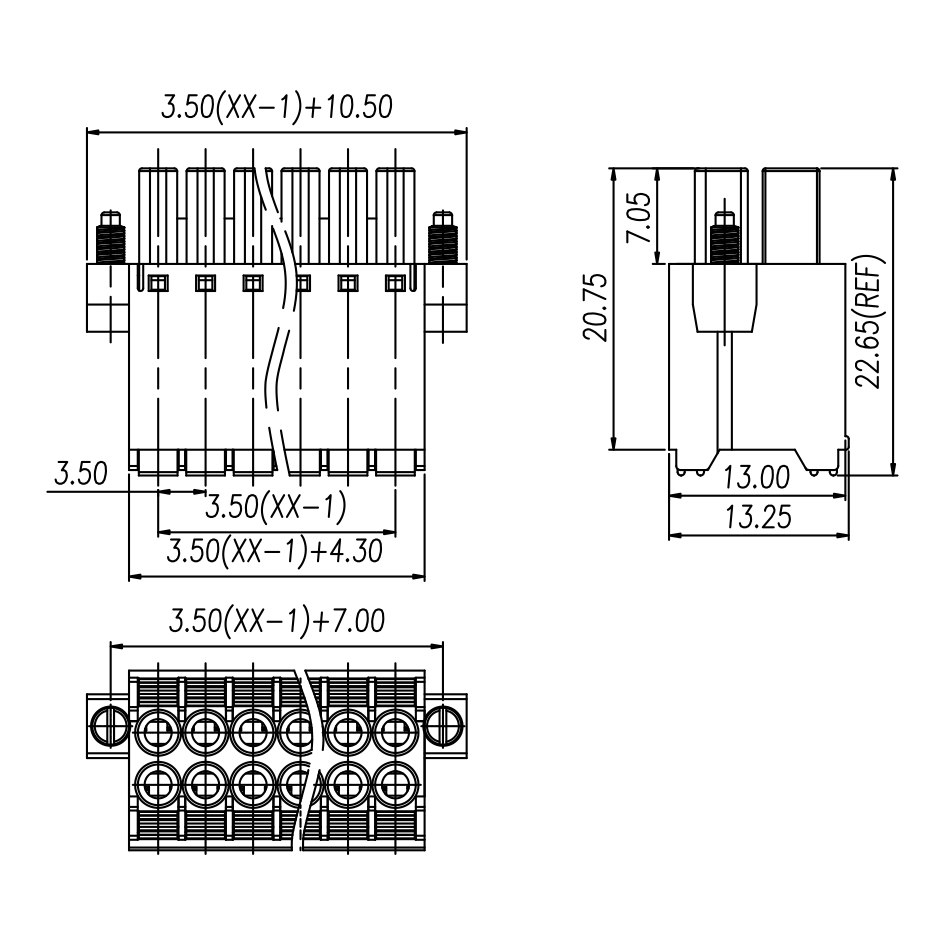

Plug, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 2, Number of digits: 2-24, Connection capacity: 4-48, Series: DB2EKNHM, Pin spacing: 3.5 mm, Wiring method: Pull-back spring Connection, Wire/PCB connection direction: 0°, Insertion system: COMBICON DB2EKNHM, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Color-coded joystick for intuitive use
☑Optimised installation in limited spaces: wires can be operated and connected from one direction
☑Bolt flange guarantees a high degree of mechanical stability
