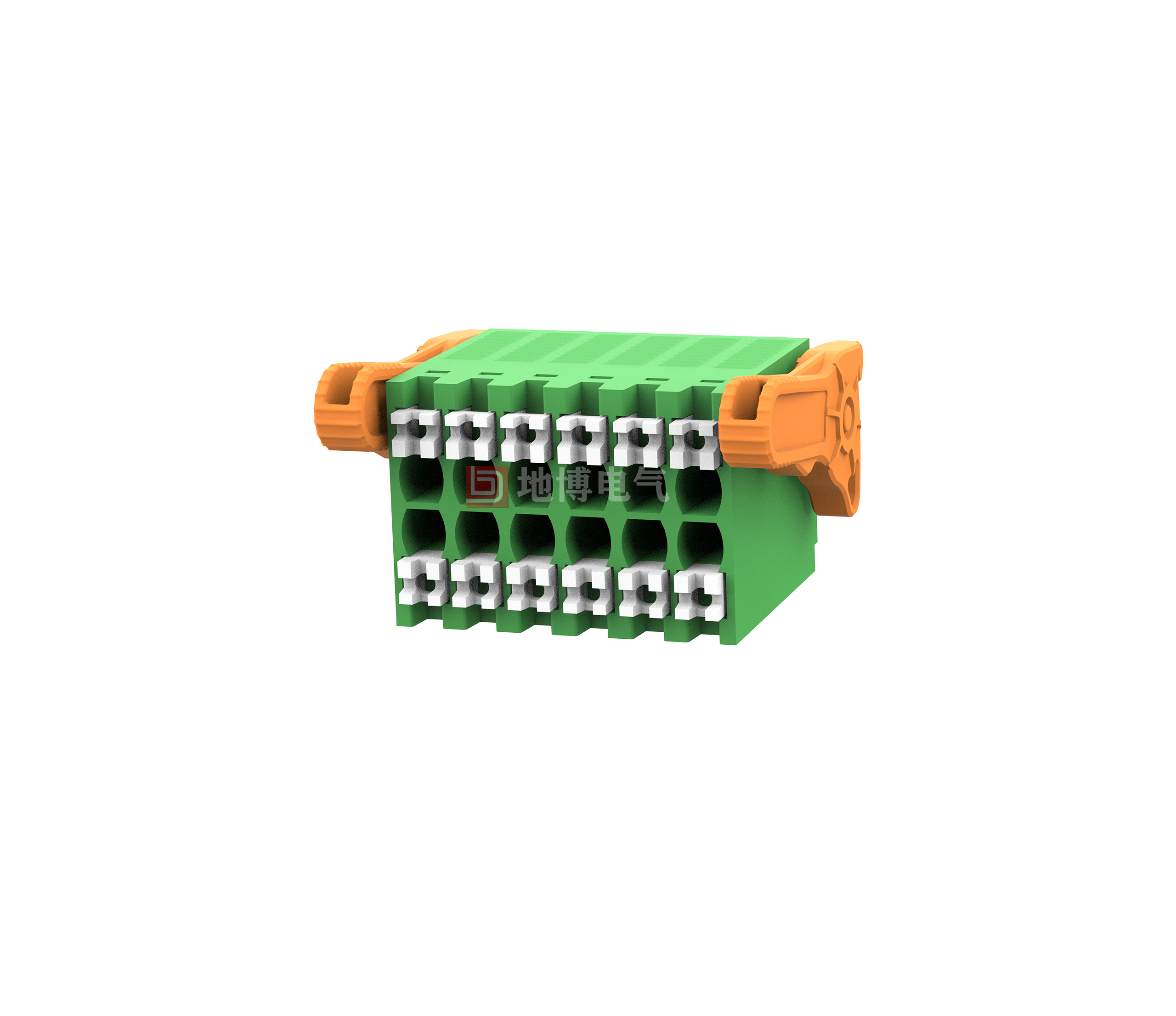

Plug, Nominal cross-section: 1.5 mm2, Colour: Green, Rated current: 9.5 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact type: Hole connector, Number of potentials: 2-24, Number of rows: 2, Number of digits: 2-24, Connection capacity: 4-48, Series: DB2EKNHBG, Pin pitch: 3.5 mm, Wiring method: Pull-back Spring connection, Wire/PCB connection direction: 0°, Insertion system: COMBICON DB2EKNHBG, Interlocking: Snap lock, Mounting: Locking & release ejector, Packing type: Carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Color-coded joystick for intuitive use
☑Optimised installation in limited space: wires can be operated and connected from one direction
☑Contrasting locking & release levers for easy automatic locking and intuitive release operations
