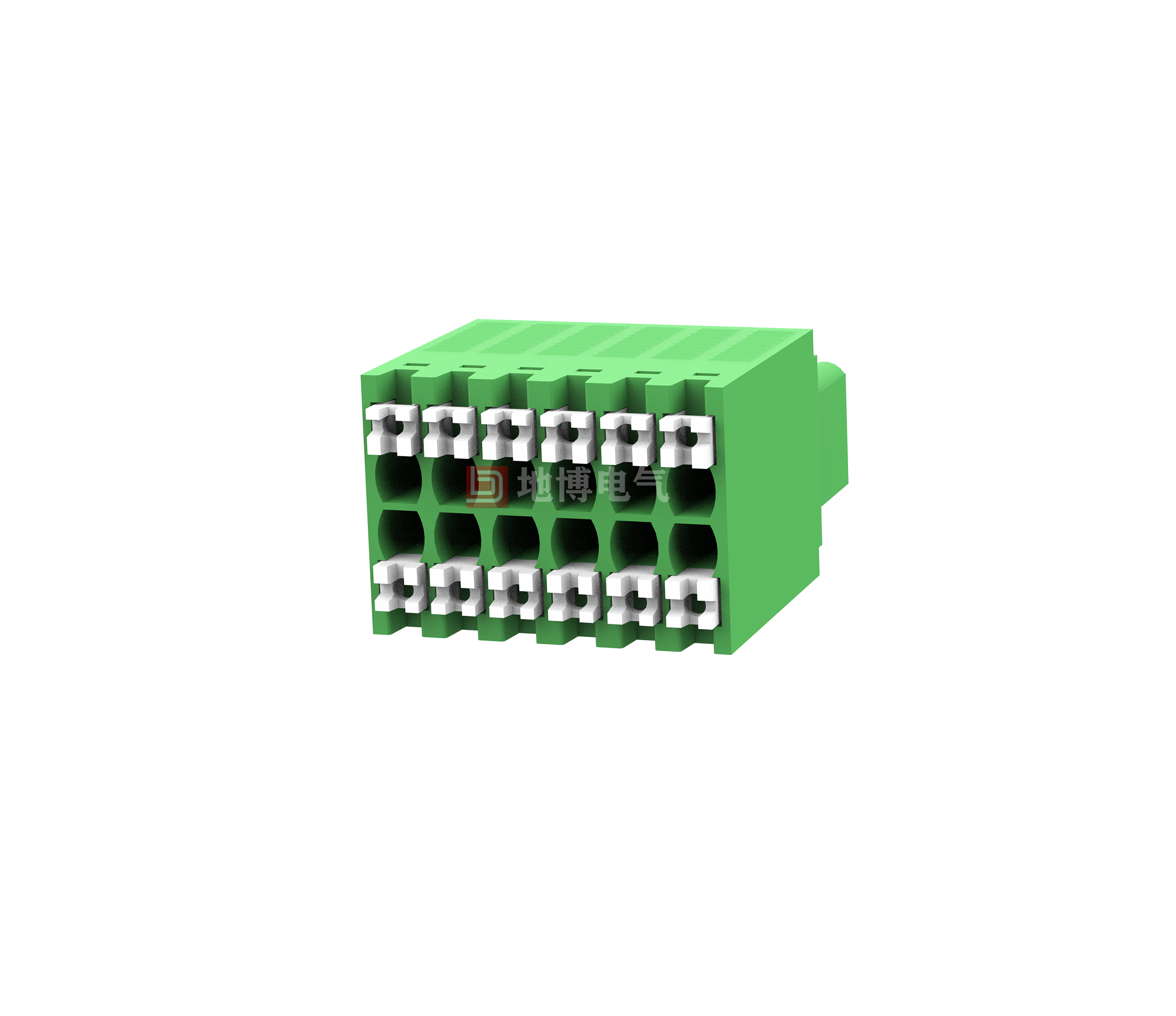

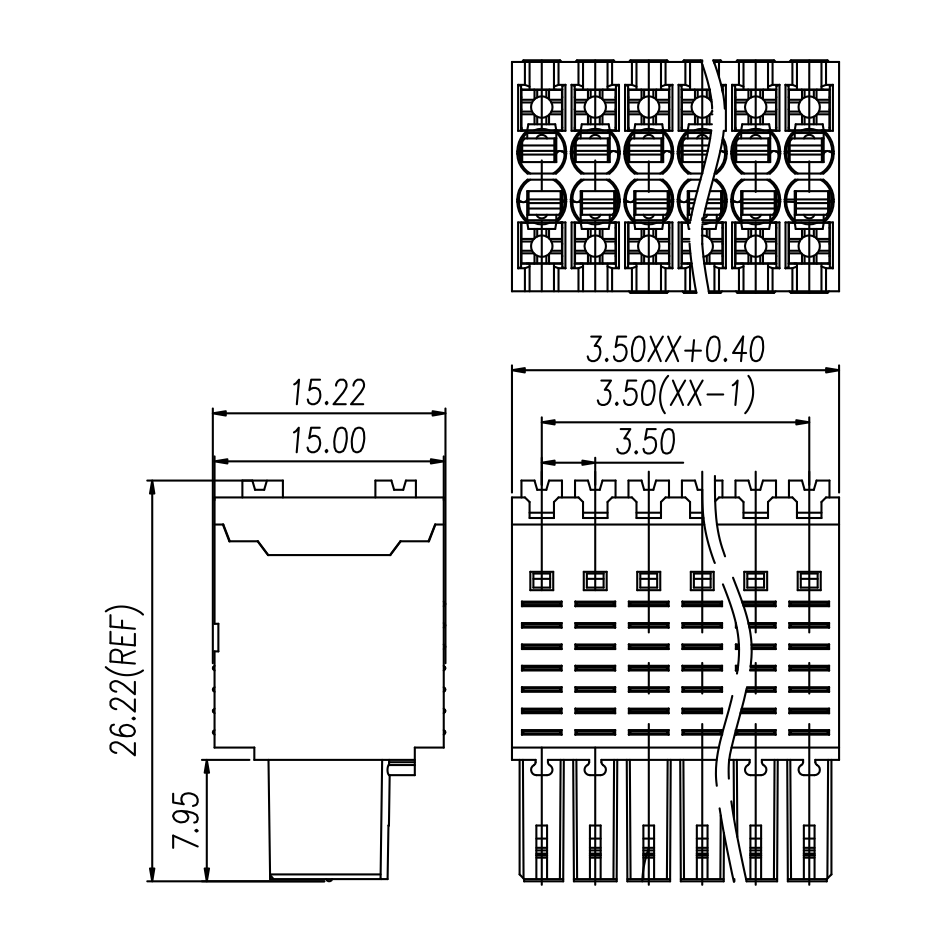

Plug, Nominal cross-section: 1.5 mm2, Colour: Green, Rated current: 9.5 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact type: Hole connector, Number of potentials: 2-24, Number of rows: 2, Number of digits: 2-24, Connection capacity: 4-48, Series: DB2EKNHB, Pin pitch: 3.5 mm, Wiring method: Pull-back Spring connection, Wire/PCB connection direction: 0°, Insertion system: COMBICON DB2EKNHB, Interlocking: without, Mounting: without, Packing type: carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Color-coded joystick for intuitive use
☑Optimised installation in limited space: the wires can be operated and connected from one direction
