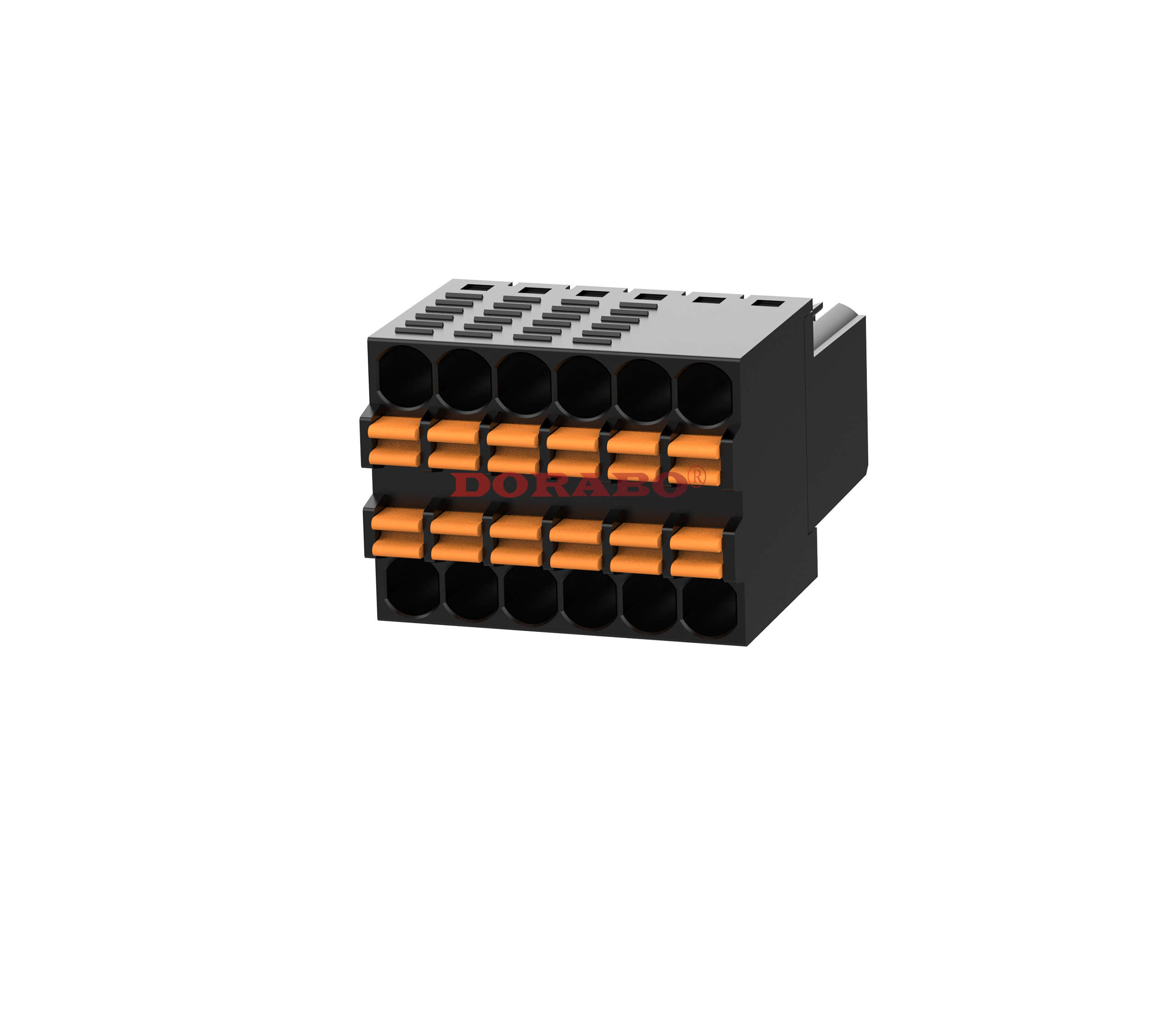

PCB Plug-in Connector DB2EKNHB-2.54

Plug-in connector, Rated cross-section: 0.5 mm2, Colour: black, Rated current: 6 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: eyelet, Number of potentials: 4-48, Number of rows: 2, Number of positions: 4-48, Number of connections: 4-48, Series: DB2EKNHB, Pin spacing: 2.54 mm, Wiring condition: straight, Plug-in spring-loaded connection, Direction of lead/PCB connection: 0°, Plug-in system: COMBICON DB2EKNHB, Interlocking: without, Mounting: without, Packaging type: straight Spring-loaded connection, Connection direction: 0°, Insertion system: COMBICON DB2EKNHB, Interlocking: without, Mounting: without, Packaging type: Carton package

Advantages

☑Tin-plated contacts for long-term stability of the transmission quality
☑Time-saving plug-and-play connection, no tools required
☑Set contact force ensures long term stability of the contacts
☑Colour-coded joystick for easy and intuitive use
☑Optimised installation in confined spaces: wires can be handled and connected from one direction
0
Views: 426
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    5 - 5
    Wire Range [AWG]
    30~20
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    6 6 6
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~0.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    2.54/2*2~2*24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
     Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /



    Dimension Drawing
