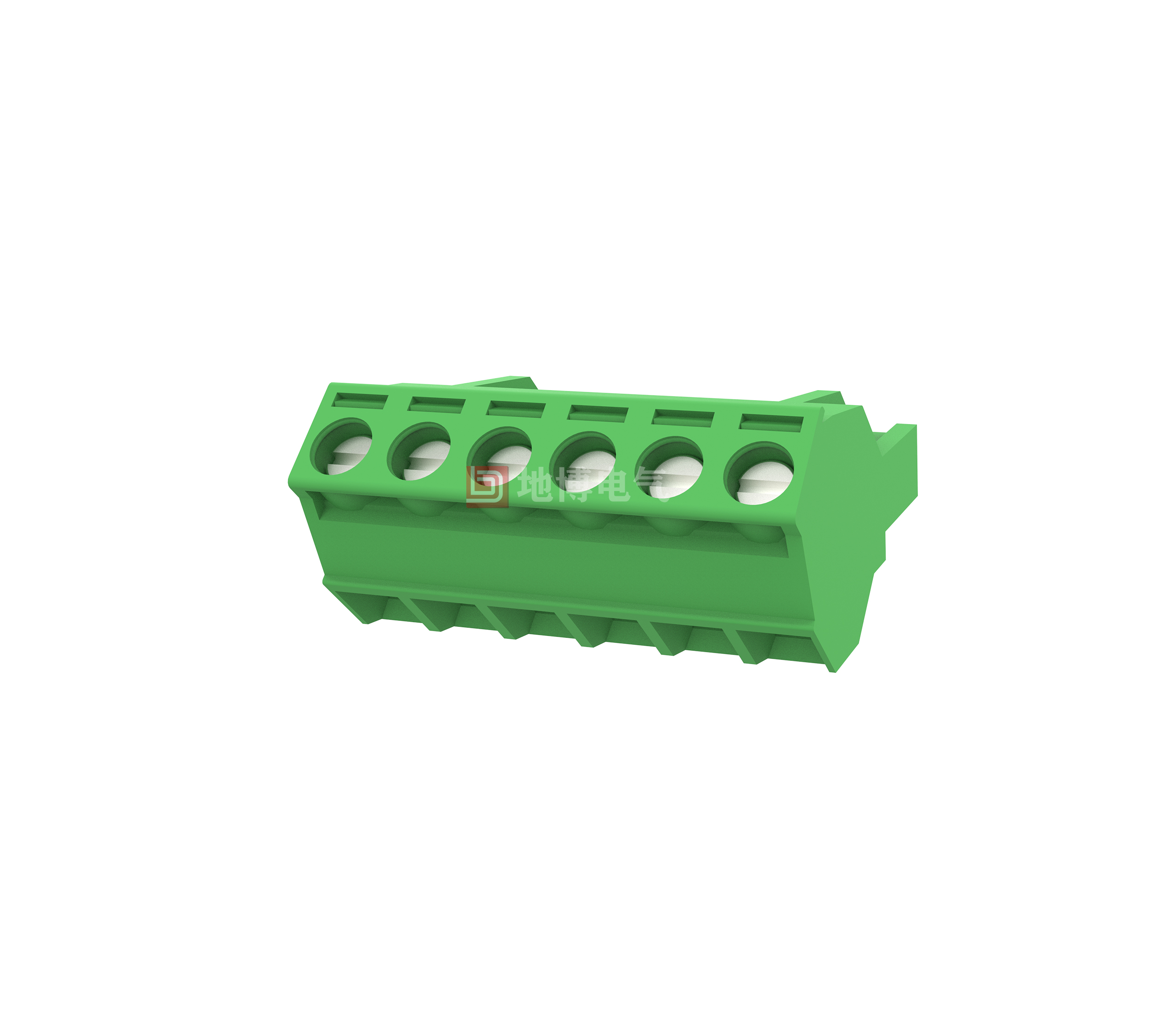

PCB plug-in connector DB2EKL-5.08

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKL, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L slot, Wire/PCB connection direction: -45°, Latch: - latch, Plug-in system: COMBICON DB2EKL, Interlocking: without latch, Plug-in system: COMBICON DB2EKL, Interlocking: without latch Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: -45°, Closure: - latch, Insertion system: COMBICON DB2EKL, Interlocking: without, Mounting: without, Packing type: carton

Advantage

☑Universal connection for worldwide use
☑Optimised installation in limited spaces: operation and connection of wires from one direction
☑Connection with bent wire, possibility to operate and connect wires from one direction
☑Maximum contact force with low temperature rise
0
Views: 401
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2~24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

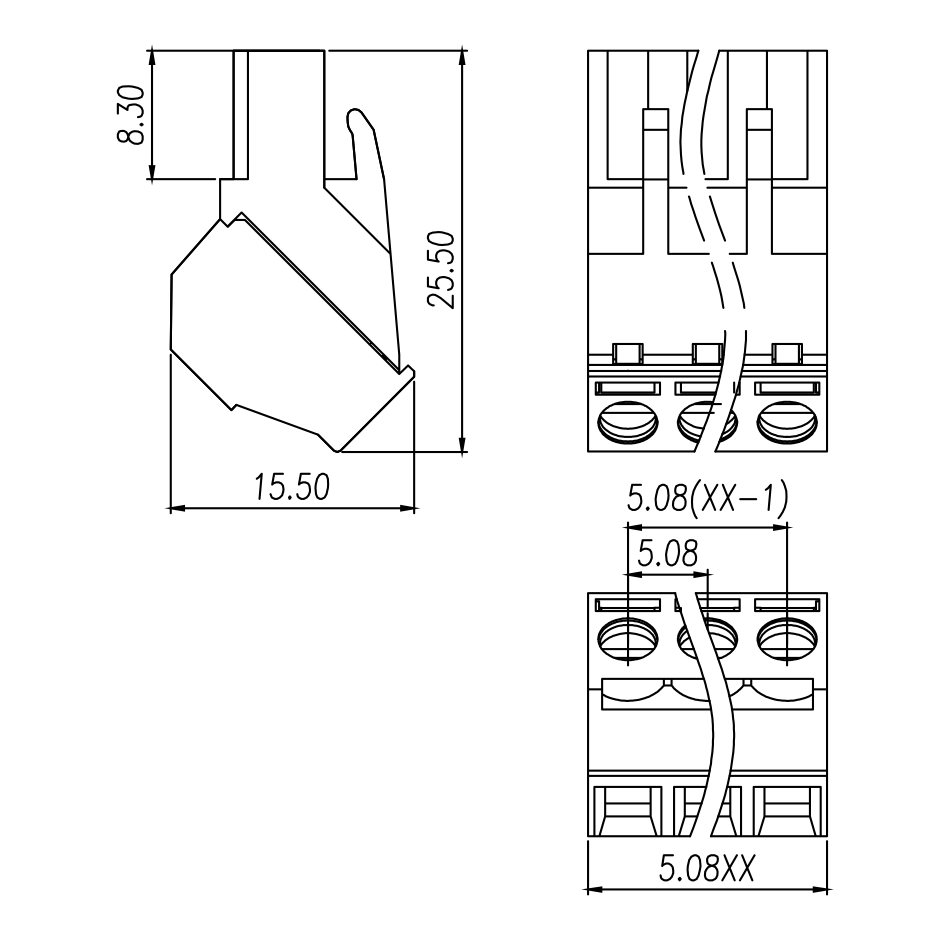

    Size Chart
