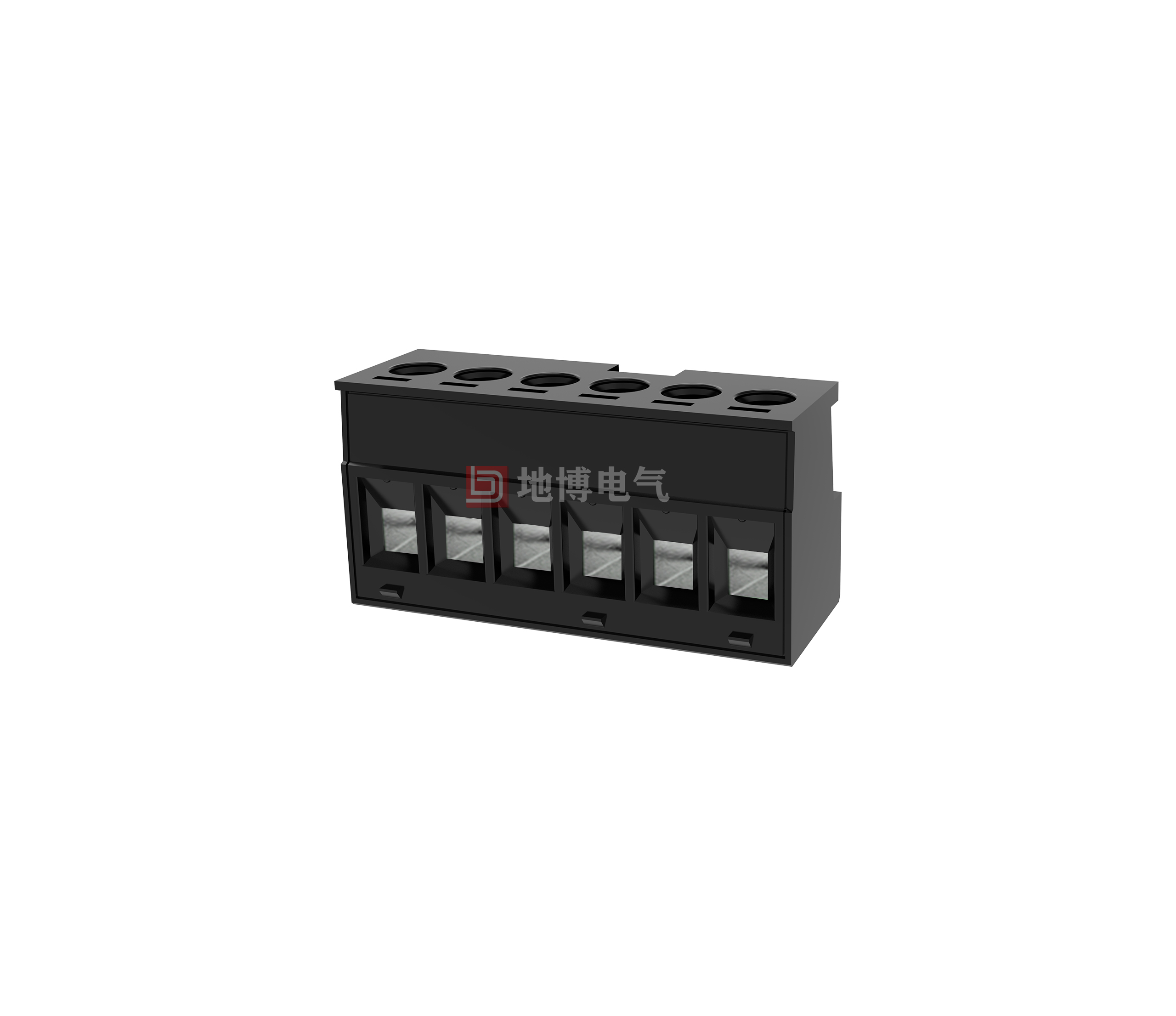

PCB plug-in connector DB2EKJ-5.08

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKJ, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L slot, Wire/PCB connection orientation: 0°, Closure: - Closure, Plug-in system: COMBICON DB2EKJ, Interlocking: without, Interlocking: without, Closure: - Closure, Plug-in system: COMBICON DB2EKJ, Interlocking: without, Screw connection with crimp, Screw head size: L slot, Wire/PCB connection orientation: 0°, Closure: - Closure Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 0°, Closure: - Closure, Insertion system: COMBICON DB2EKJ, Interlocking: without, Mounting: without, Packing type: carton
