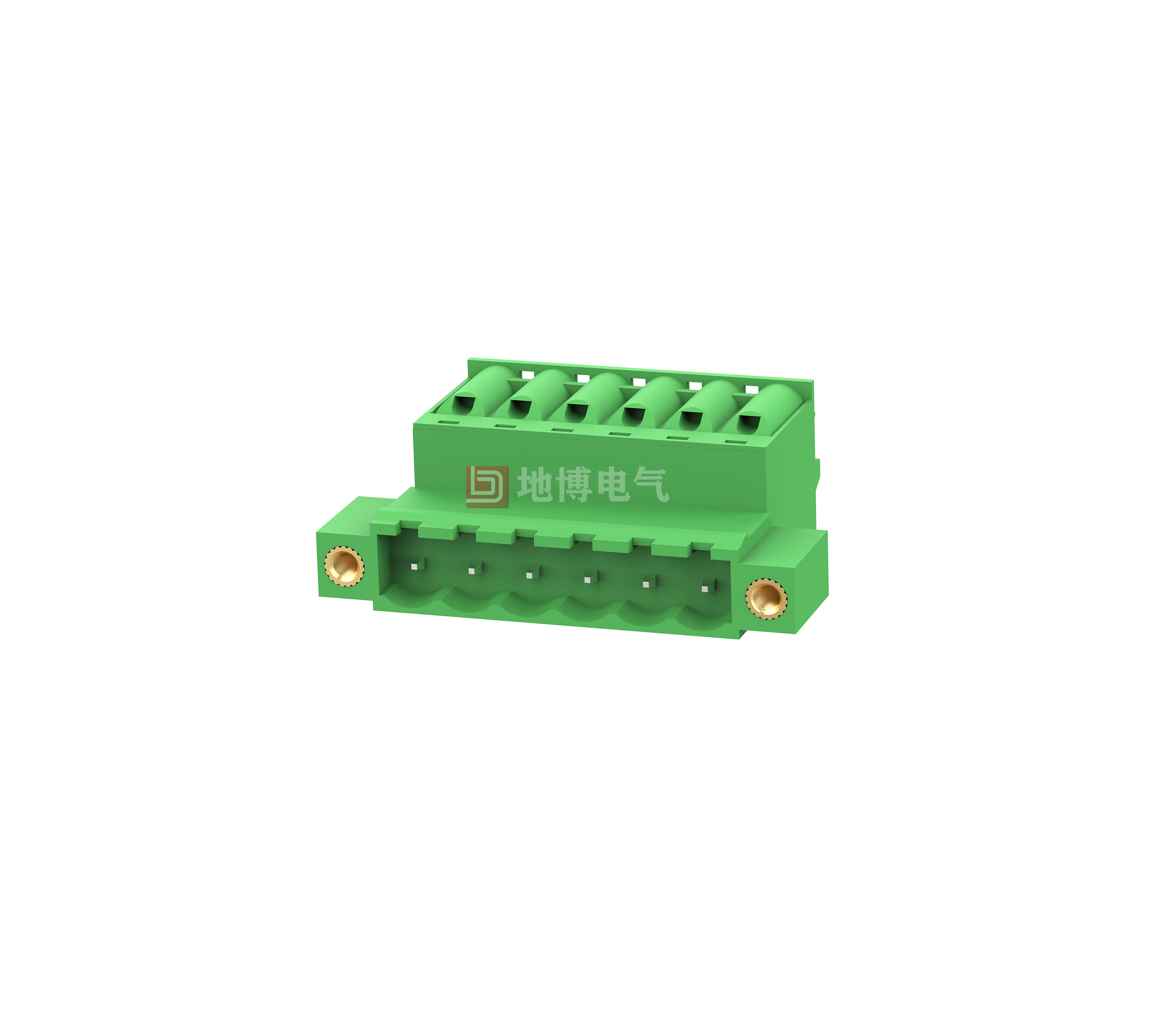

PCB plug-in connector DB2EKDRP-5.08

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 16 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKDRP, Pin pitch: 5.08 mm, Wiring method: Direct spring connection, Wire/PCB connection orientation: 0°, Latching: - without latch, Insertion system: COMBICON DB2EKDRP, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton

Advantage

☑ A large number of pre-assembled wires can be economically connected
☑ Extraction aids for easy handling and reduced tension at the contacts
☑ Bolt flange guarantees a high degree of mechanical stability
☑ Can be used in combination with DB2E series connectors
0
Views: 302
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /
