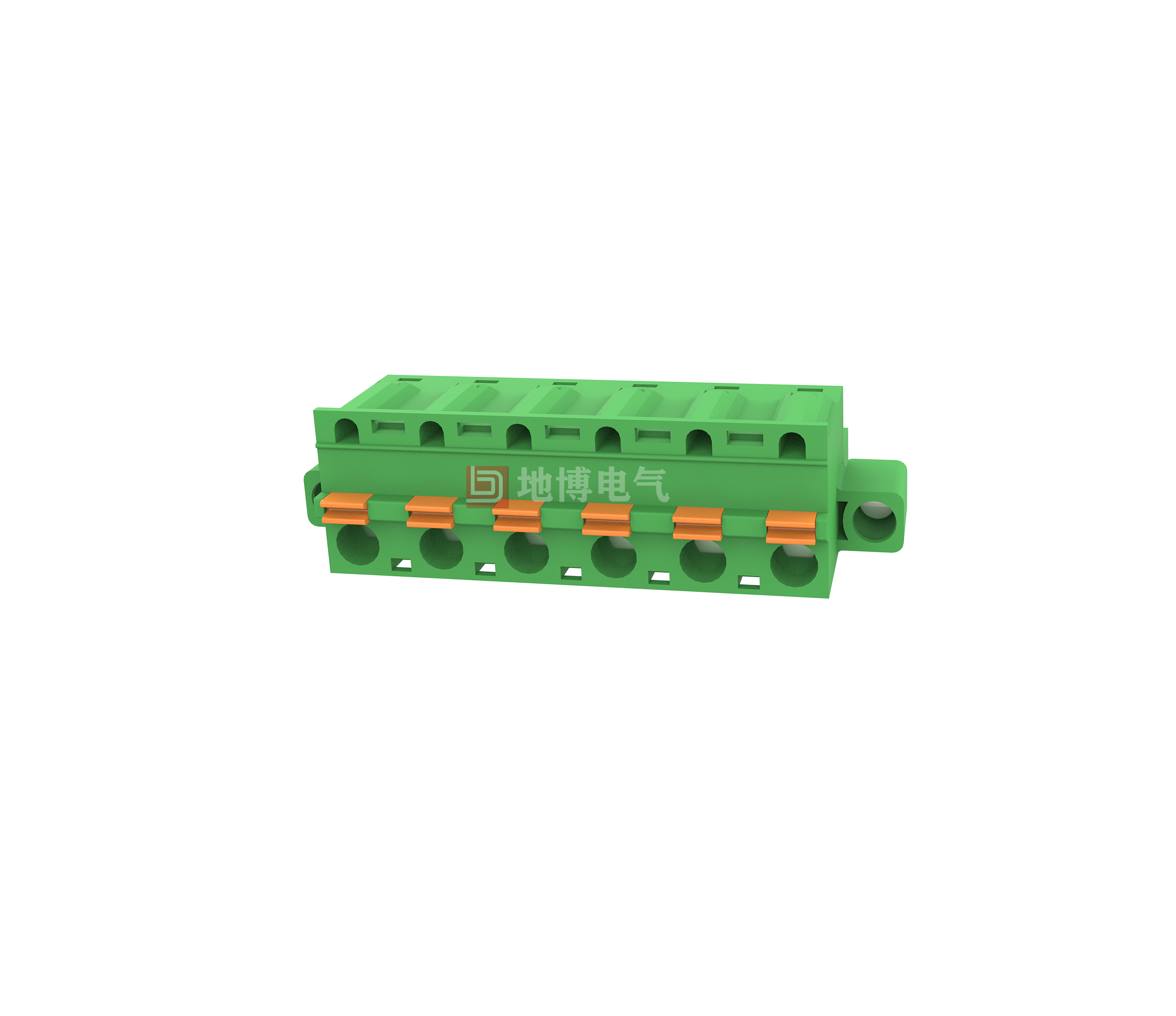

PCB plug-in connector DB2EKDM-7.62

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connection capacity: 2-16, Series: DB2EKDM, Pin pitch: 7.62 mm, Wiring method: Straight spring connection, Wire/PCB connection direction : 0°, Latch: - Latch, Insertion system: COMBICON DB2EKDM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantage

☑Meets the more stringent safety requirements for "Ex eb" protection (meets the requirements of IEC 60079-7 for potentially explosive hazardous areas)
☑Time-saving plug-and-play connection, no tools required
☑Colour coded joystick for intuitive use
☑Quick and easy testing with built-in test elements
☑Large pin spacing for increased voltage requirements
☑Bolt flange guarantees a high degree of mechanical stability
0
Views: 317
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 1000
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-16
    Stripping Length [mm]
    7-9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /



    Size Chart
