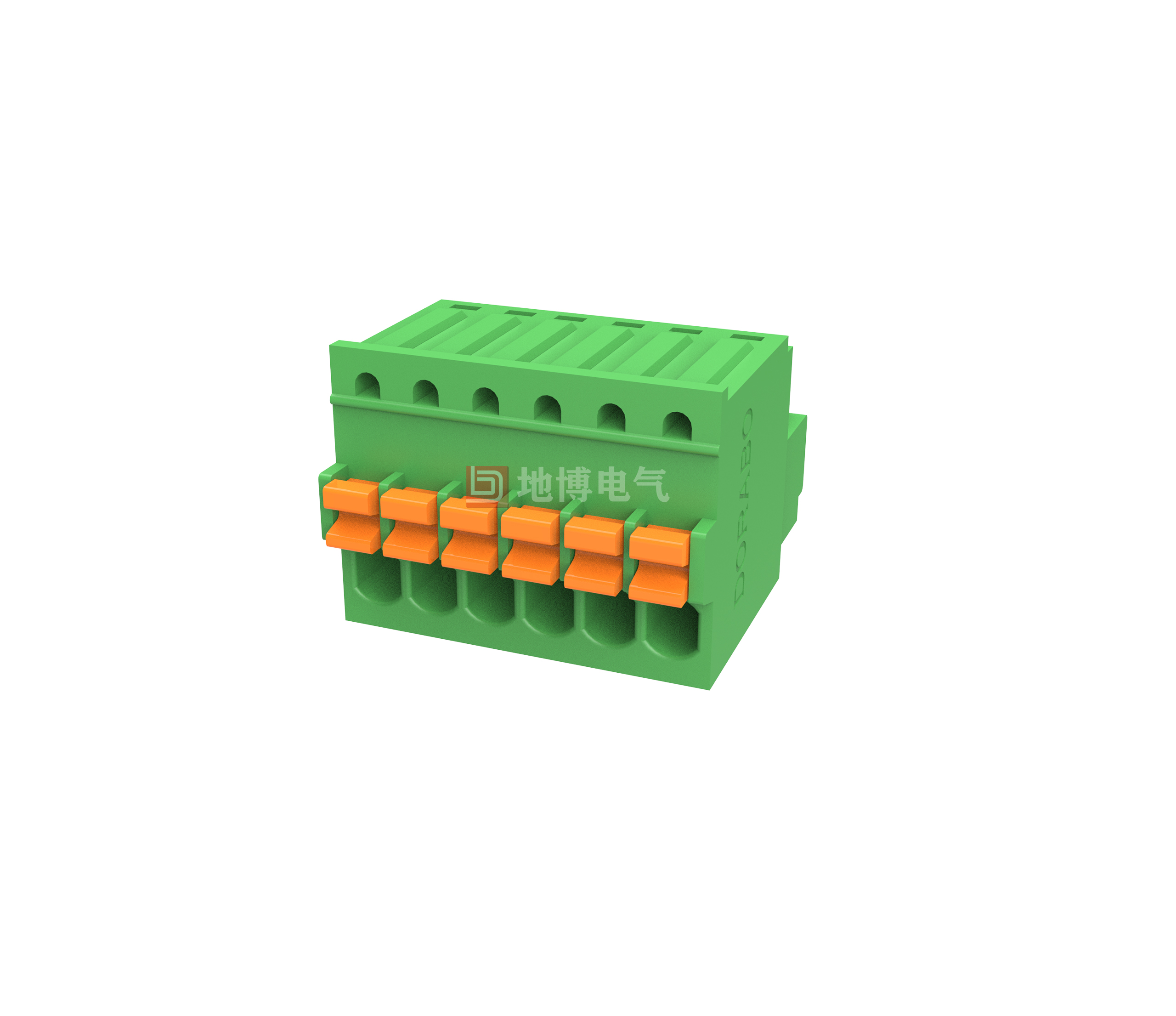

PCB plug-in connector DB2EKD-2.5

Plug-in connector, Nominal cross-section: 0.5 mm2, Colour: green, Nominal operating current: 4 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2-24, Series: DB2EKD, Pin pitch: 2.5 mm, Wiring method: straight Interlocking: without, Mounting: without, Packing type: carton

Advantage

☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Quick and easy testing with built-in test elements
1+
Views: 383
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - -
    Rated Current [A]
    5 - -
    Wire Range [AWG]
    26~20
    Dielectric Voltage-Withstand
    1.3KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    100 160 320
    Rated Current [A]
    5 5 5
    Impulse withstand voltage [KV]
    1.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~0.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni piated



    General Parameters



    Pitch/Poles [mm]/[P]
    2.5/2~24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

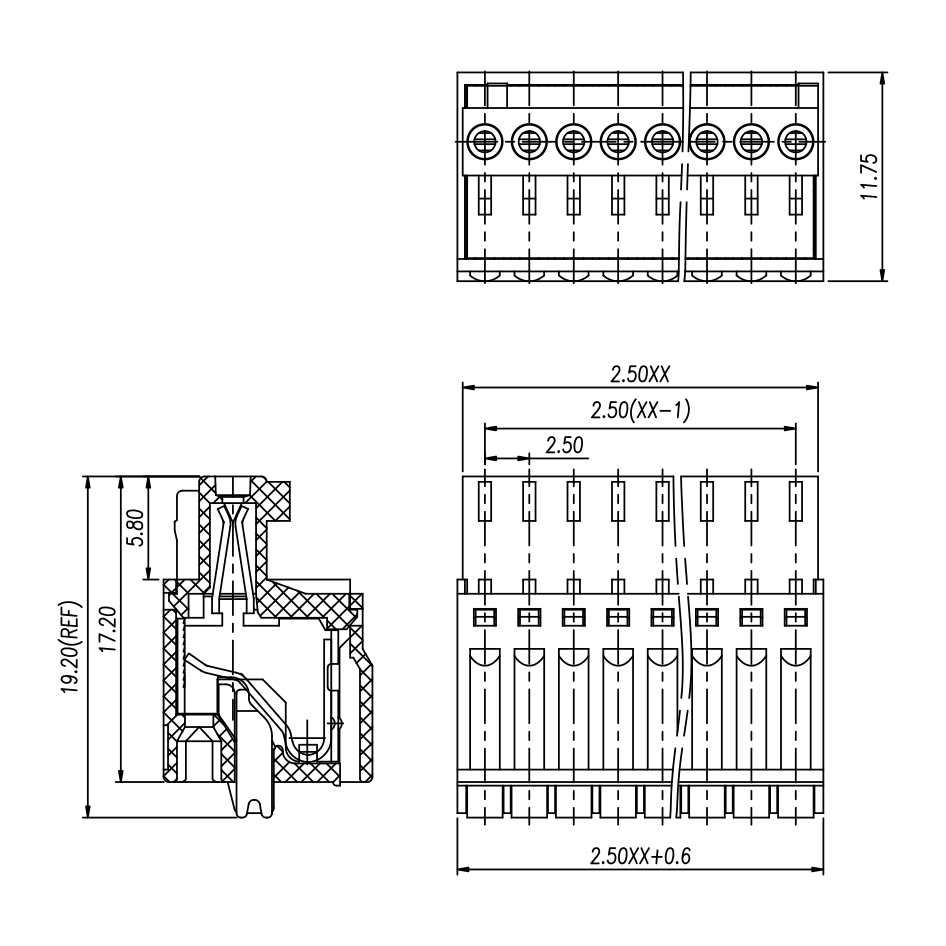

    Size Chart
