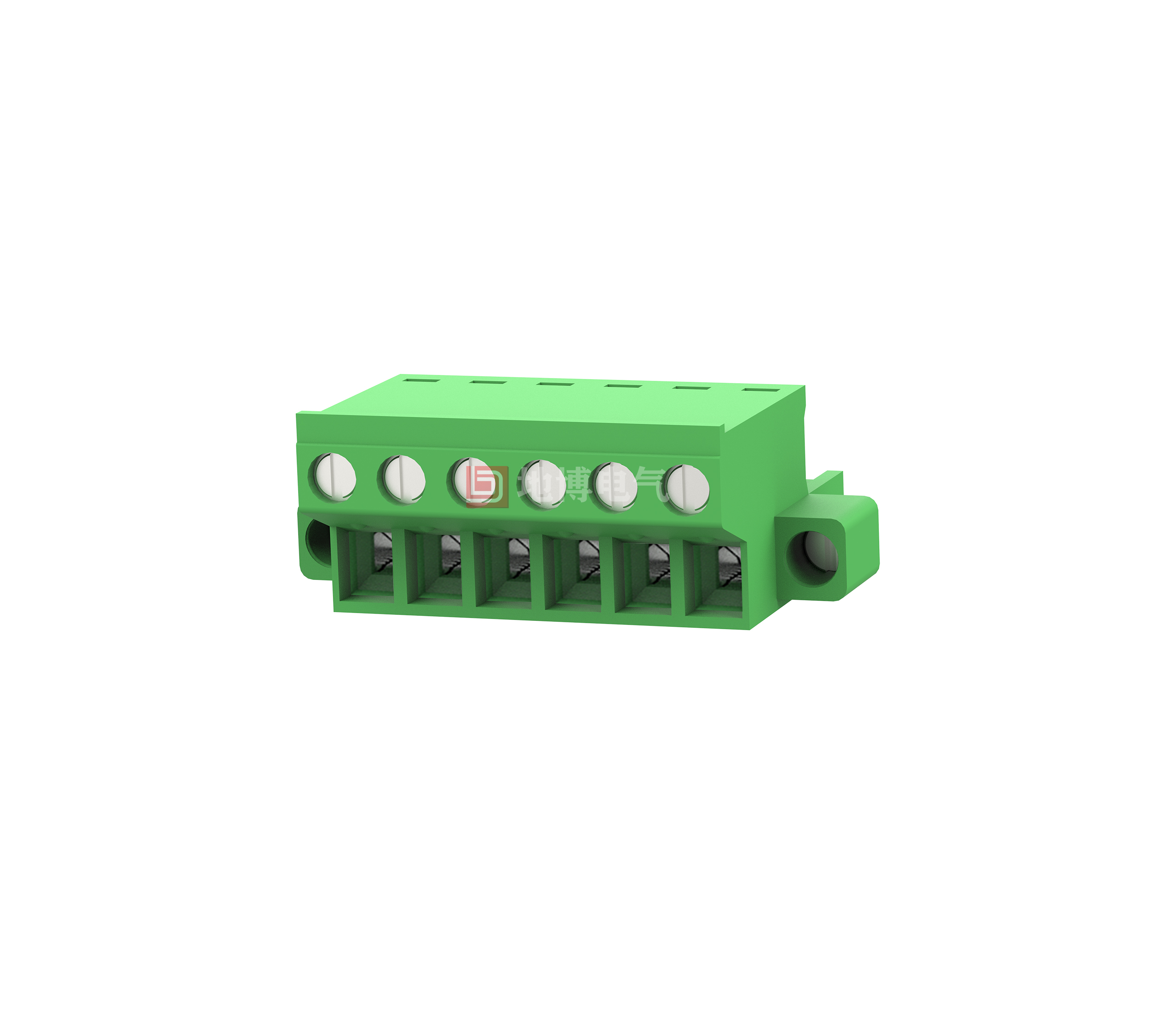

PCB plug-in connector DB2EKCM-5.08

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Nominal operating current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2-24, Series: DB2EKCM, Pin pitch: 5.08 mm, Wiring method : Front screw connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Closure: - Closure, Insertion system: COMBICON DB2EKCM, Interlocking: Screw fastening, Mounting: Threaded flange, Packing type: Carton

Advantage

☑Universal connection for worldwide use
☑ Optimised installation in limited spaces: wires can be operated and connected from one direction
☑Bolt flange guarantees a high degree of mechanical stability
☑Maximum contact force with low temperature rise
☑Allows the connection of two stranded wires
0
Views: 308
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    9-10
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

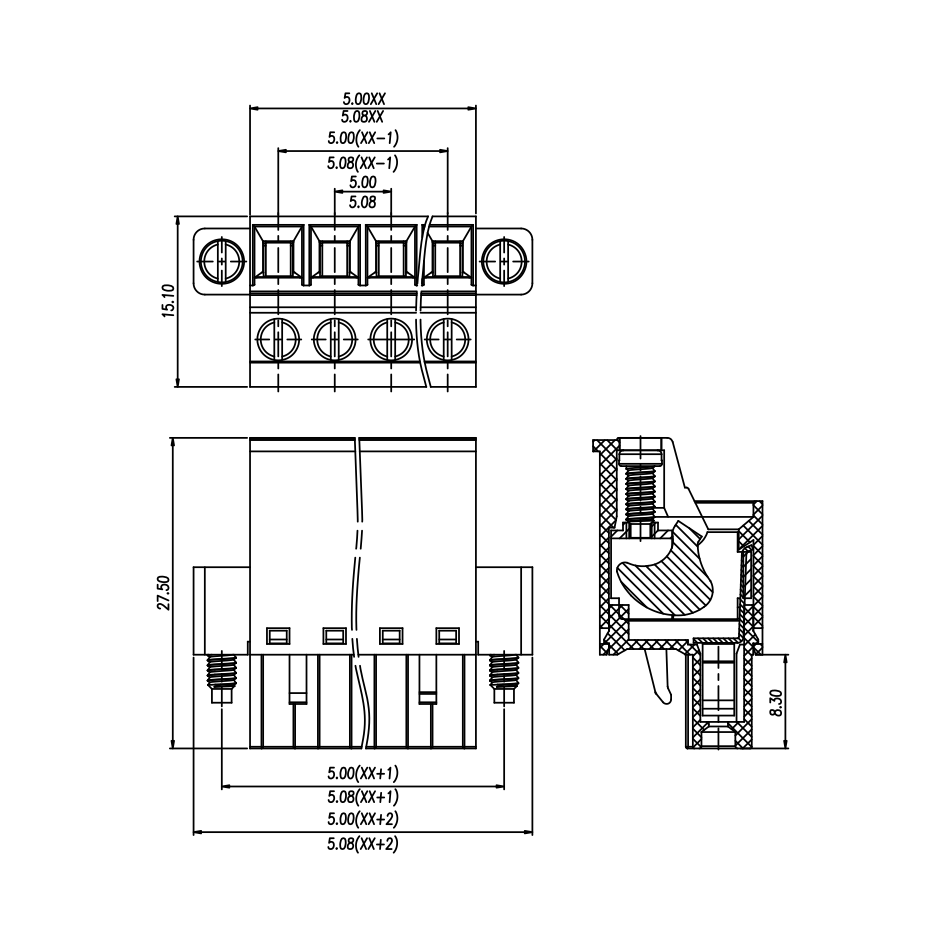

    Size Chart
