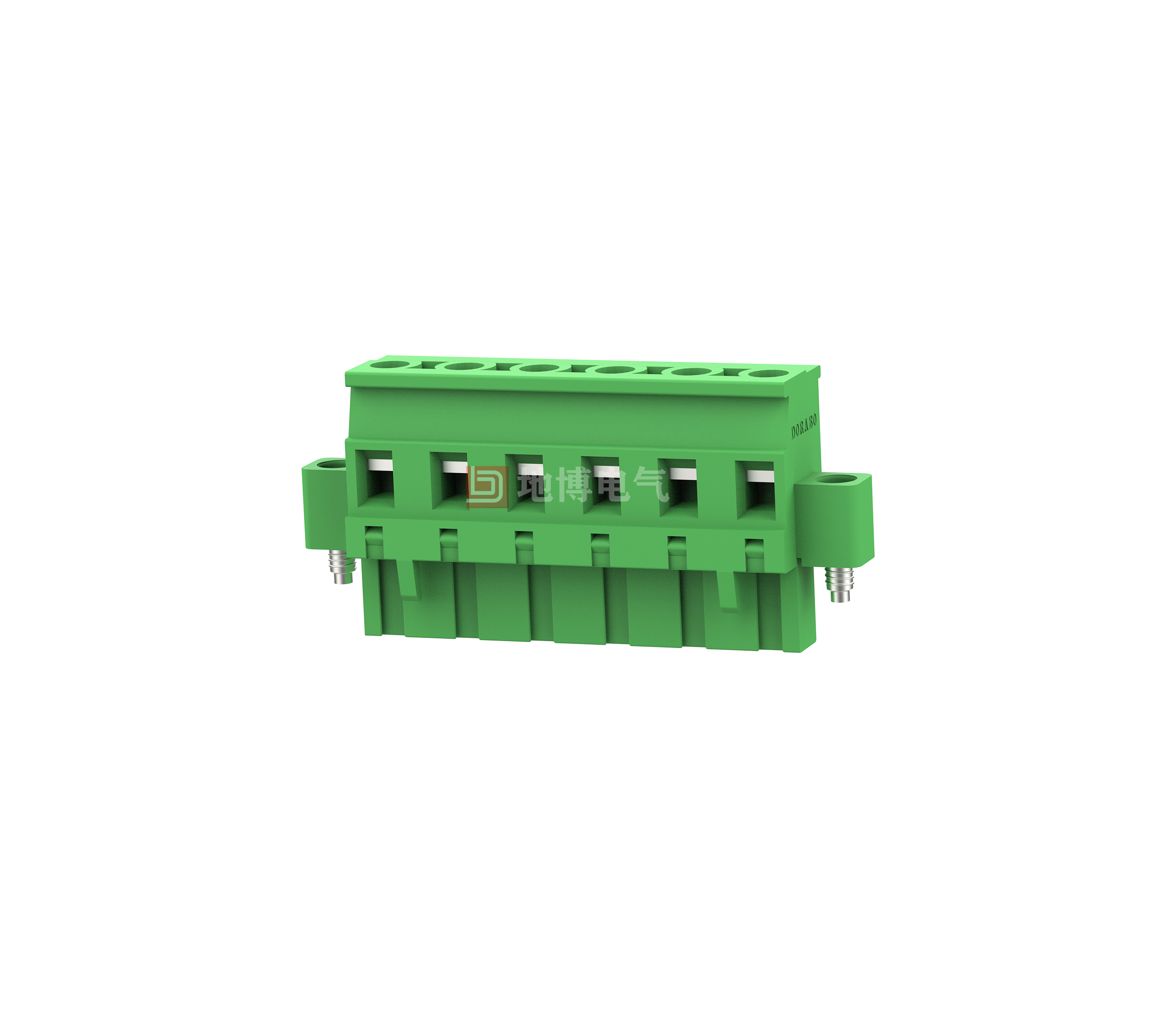

PCB plug-in connector DB2EKAM-7.62

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 630 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connection capacity: 2-16, Series: DB2EKAM, Pin pitch: 7.62 mm, Wiring method: screw connection with crimp, Screw head size: L-slot, Wire/PCB connection direction: 90°, Closure: - latch, Plug-in system: COMBICON DB2EKAM, Interlocking: screw tight, Interlocking: latch Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 90°, Closure: - locking, Insertion system: COMBICON DB2EKAM, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton

Advantage

☑ Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Larger pin spacing for increased voltage requirements
☑Allows connection of two stranded wires
☑Bolt flange for high mechanical stability
0
Views: 328
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    500 630 1000
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.5，7.62/2~24
    Stripping Length [mm]
    9-10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

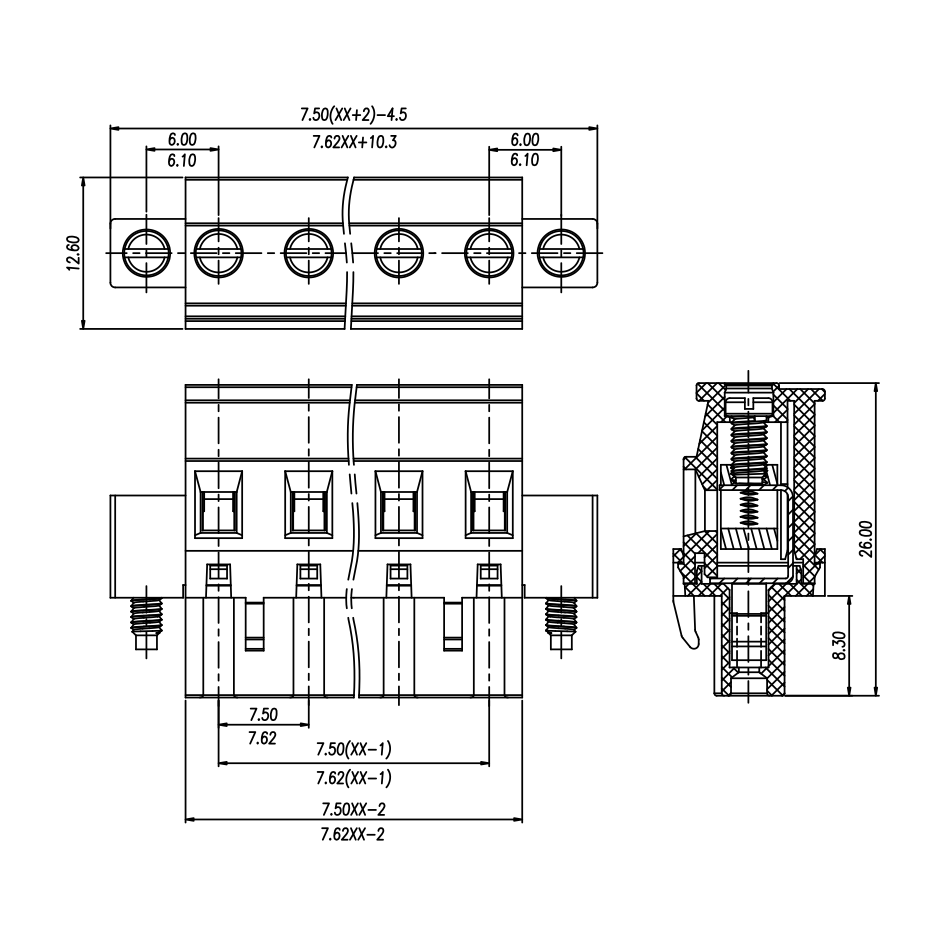

    Dimensional drawing
