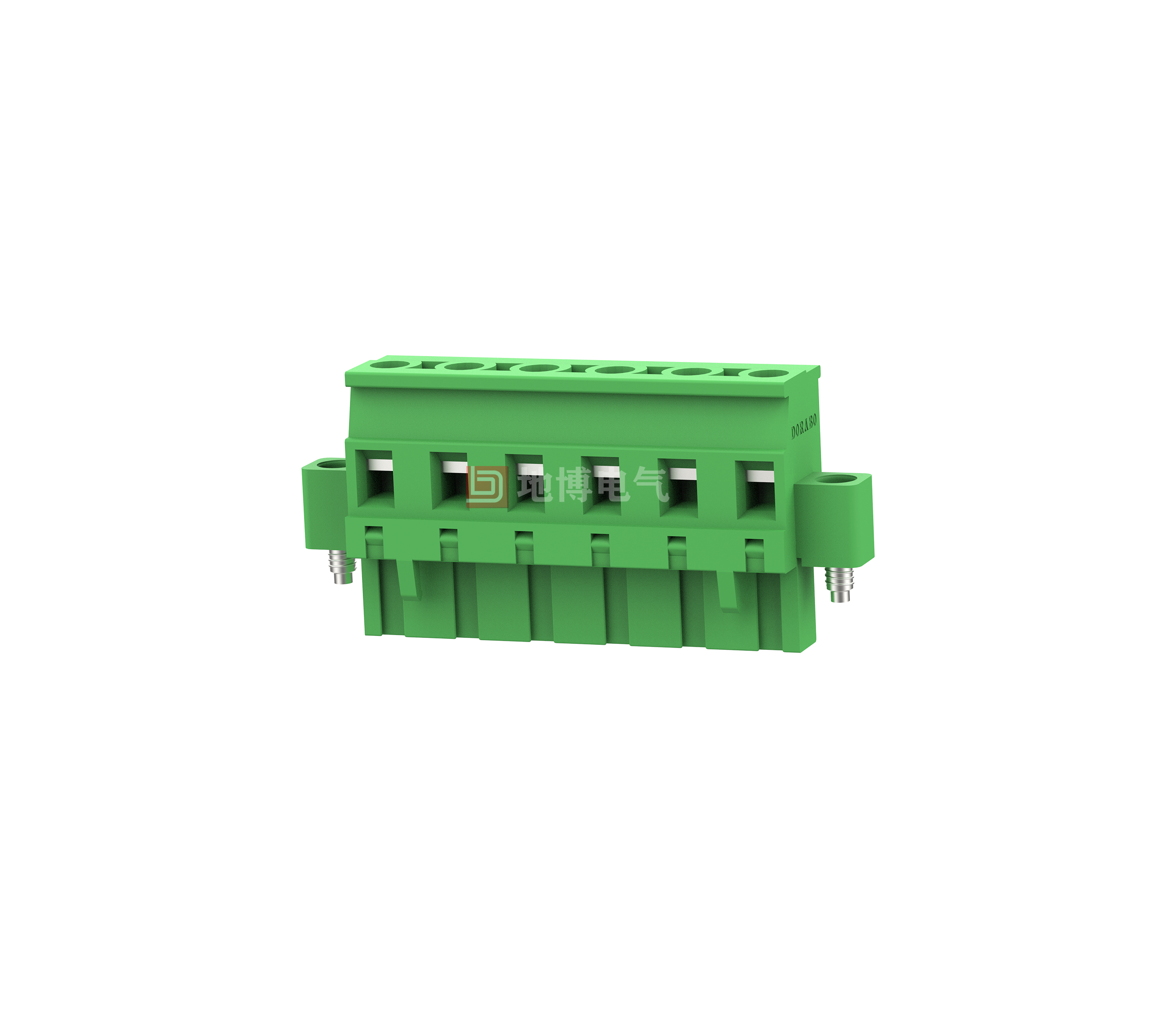

PCB plug-in connector DB2EKAM-7.5

Plug-in connector, rated cross section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 630 V, contact surface: tin, contact type: hole-type connector, number of electric digits: 2-24, number of rows: 1, number of digits: 2-24, connection quantity: 2-24, product series: DB2EKAM, pin pitch: 7.5 mm, wiring mode: screw connection with compression piece, screw head specification: L slot, wire/PCB connection direction: 90 °, Latch: - Latch, plugging system: COMBICON DB2EKAM, interlock: screw fastening, installation: threaded flange, packaging type: carton packaging

Advantage

☑Universal connection mode, which can be used worldwide
☑Maximum contact force, low temperature rise
☑Larger needle pitch can meet the increased voltage requirements
☑Allow connection of two strands
☑Bolt flange ensures high mechanical stability
0
Views: 321
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    500 630 1000
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.5，7.62/2~24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /



    Dimensional drawing
