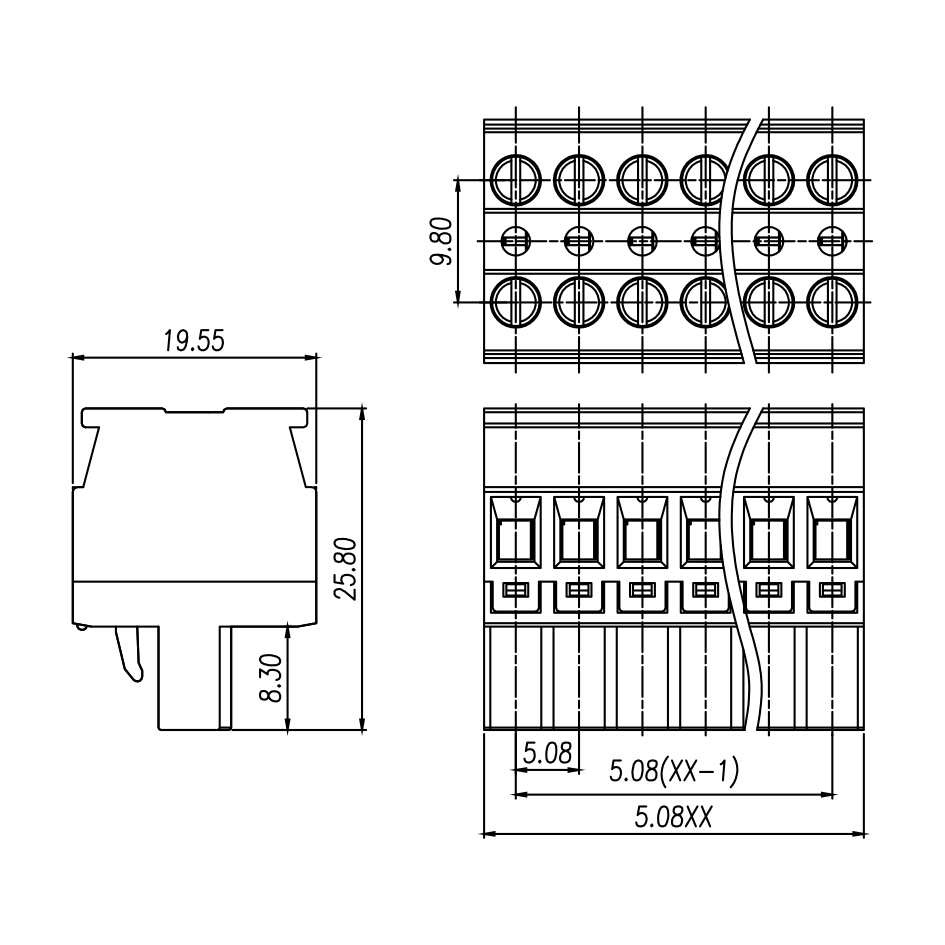

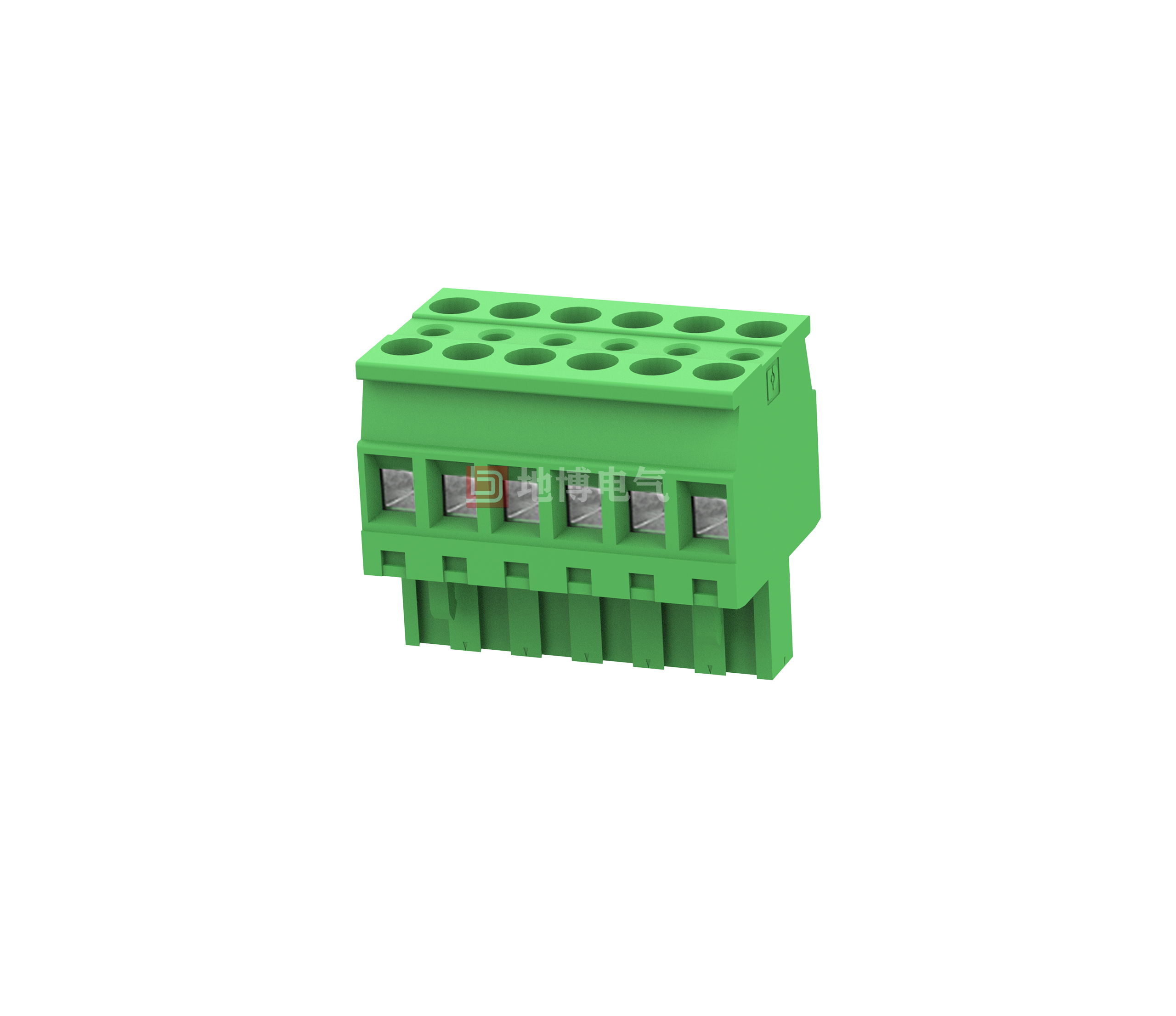

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 400 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 4-48, Number of rows: 1, Number of digits: 4-48, Connection capacity: 4-48, Series: DB2EKAH, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L-slot, Wire/PCB connection direction: 90°, Latch: - without latch, Plug-in system: COMBICON DB2EKAH, Interlocking: - without latch, Plug-in system: COMBICON Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 90°, Clamping: - without clamping, Insertion system: COMBICON DB2EKAH, Interlocking: screw fastening, Mounting: threaded flange, Packing type: carton
Advantage
☑Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Easy potential distribution, suitable for BUS bus applications
