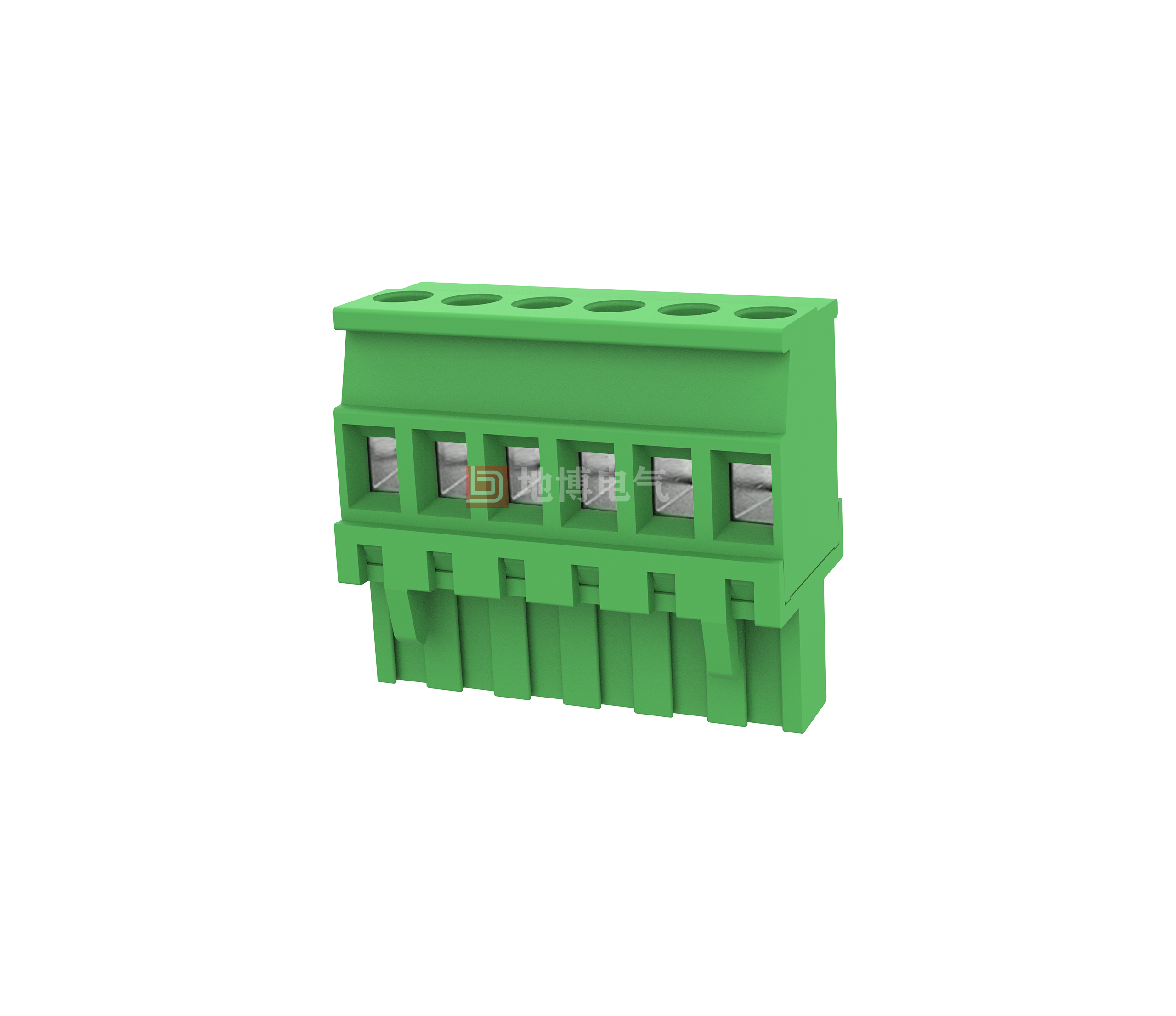

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: -24, Series: DB2EKA, Pin pitch: 5.08 mm, Wiring method: screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 90°, Closure: - latch, Plug-in system: COMBICON DB2EKA, Interlocking: without, Mounting: not with, Mounting: not with Screw connection, Screw head size: L slotted, Wire/PCB connection direction: 90°, Closure: - Closure, Insertion system: COMBICON DB2EKA, Interlocking: without, Mounting: without, Packing type: carton
Advantage
☑Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Allows connection of two stranded wires
