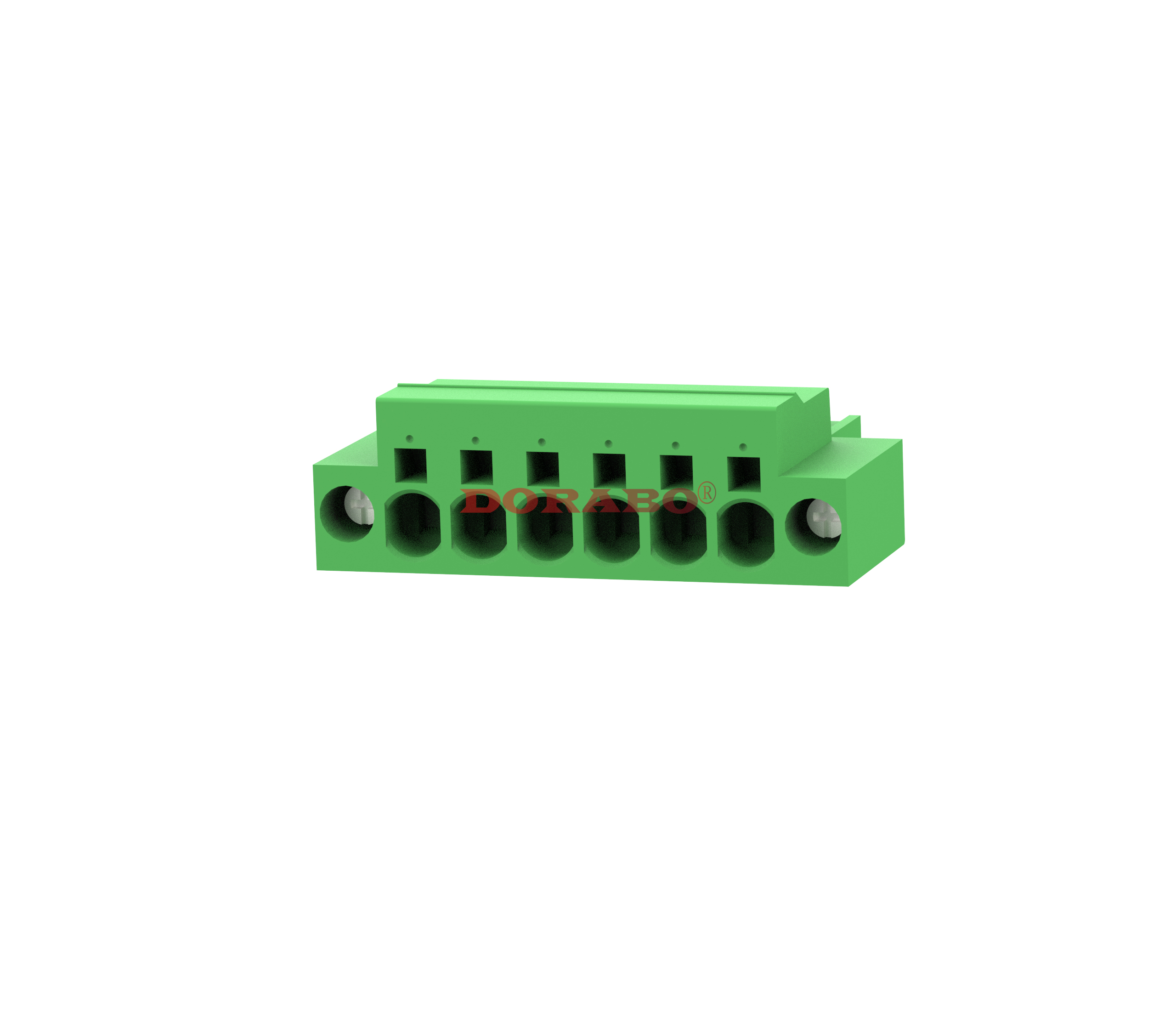

PCB plug-in connector DB2EAKM-7.62

PCB connector, Rated cross-section: 6 mm 2, color: green, Rated current: 35 A, Rated voltage (III/2): 600 V, Contact surface: Tin, Contact type: Female connector, Number of potentials: 2-16, Number of rows: 1, Number of positions: 2-16, Connection volume: 2-16, product range: DB2EAKM, pitch: 7.62 mm, Connection: Push-in spring, Conductor/PCB connection: 0 °, Latching: - Latch, Plugging and unplugging system: COMBICON DB2EAKM, Interlock: Screw locking, Mounting: Threaded flange, Packing type: Carton

Advantage

☑ Time-saving plug-in connection without tools
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Color-coded joysticks make it easy to use intuitively
☑ The built-in steel double reed increases the reliability of the connection, especially in the presence of temperature and power fluctuations
0
Views: 167
Contact usDownload PDF View 3D Download CAD

  •

    Technical data - UL/CUL



    Rank Use Group
    B C D
    Rate Voltage [V]
    600 - 600
    Rated Current [A]
    35 - 5
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    2.2KV



    Technical Data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    6.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.62/2-16
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB板孔径 PCB Hole Diameter [mm]
    /

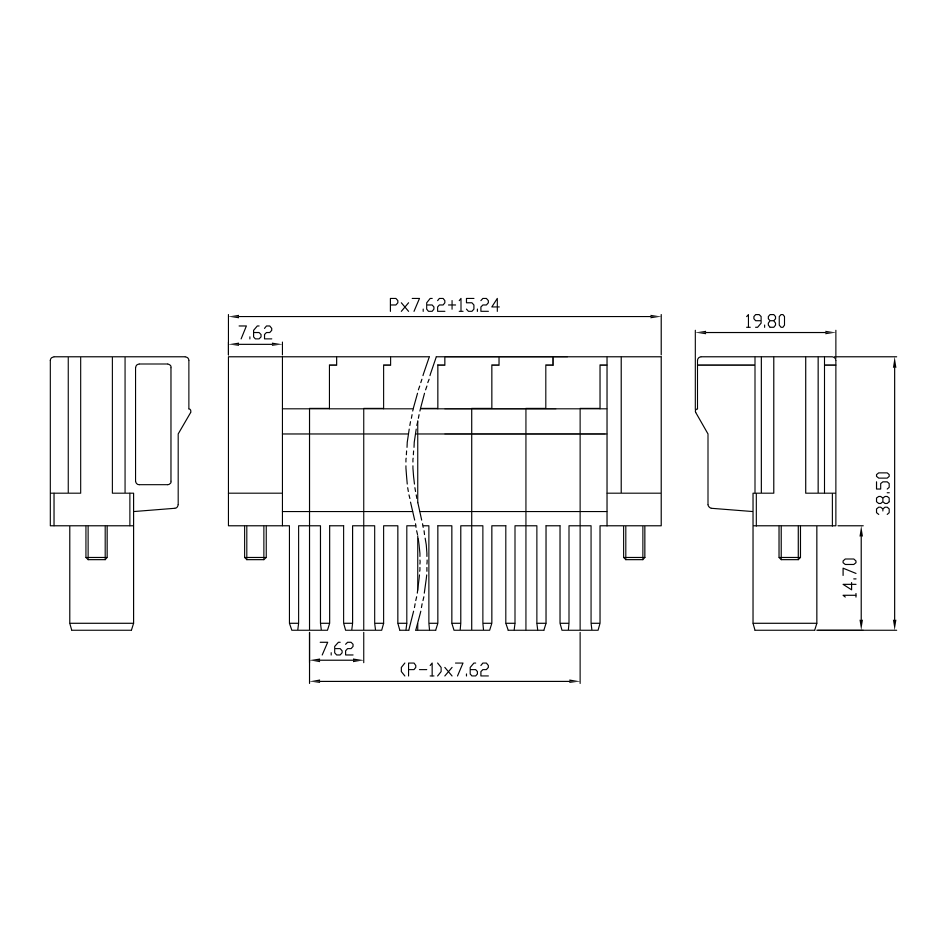

    Dimensional drawings
