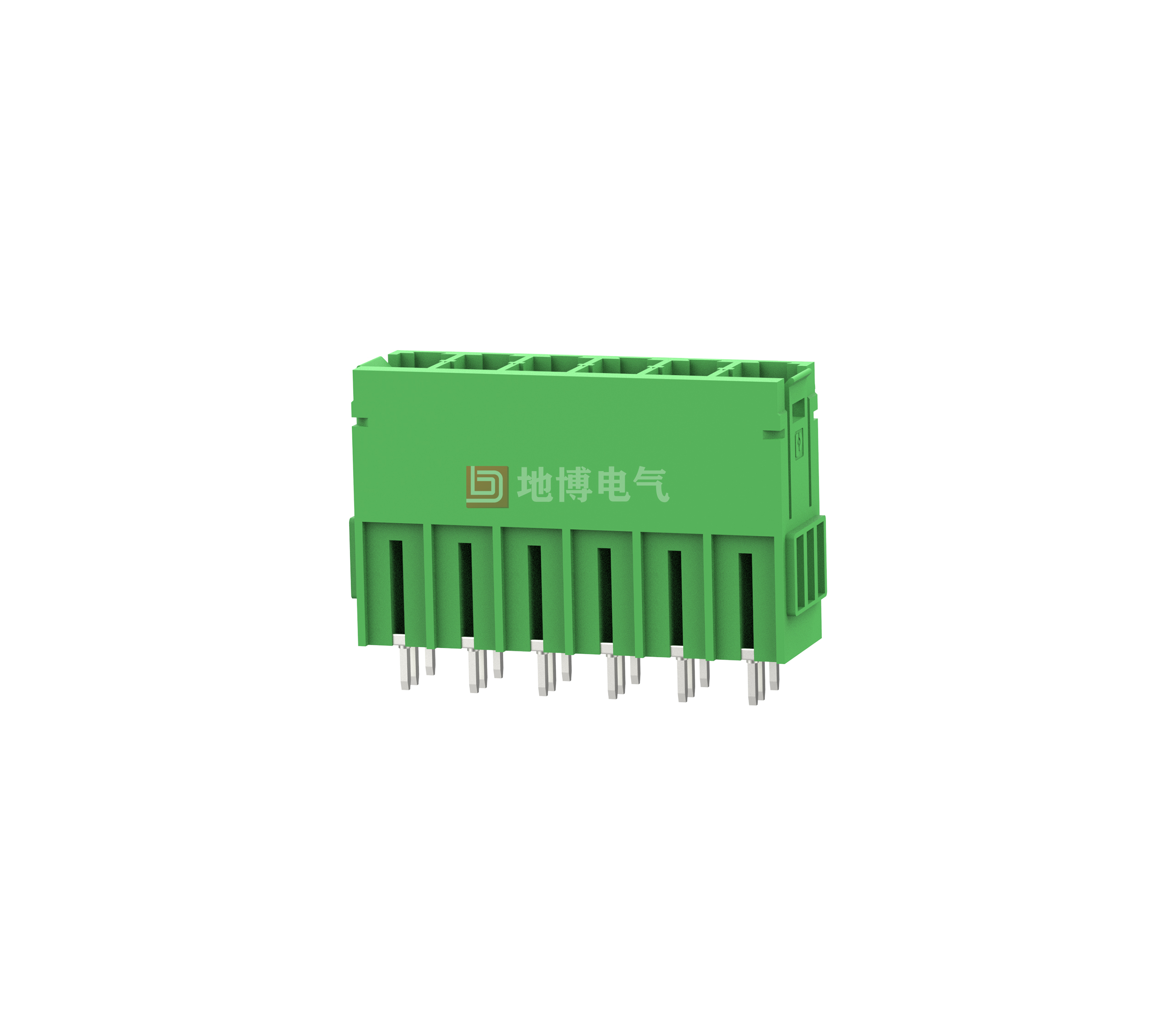

PCB socket DB3EVH-7.62

PCB Housing, Cross-sectional rating: 6 mm2, Color: Green, Current rating: 41 A, Voltage rating (III/2): 630 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-12, Number of rows: 1, Number of bits: 2-12, Connections: 2-12, Series: DB3EVH, Pin pitch: 7.62 mm, Mounting: wave solder, Pin alignment: straight, Pin [P]: 4.2 mm, Number of pins per potential: 3, Insertion system: COMBICON DB3EVH, Pin connector style alignment: standard, Interlock: without, Mounting: without, Package type: carton

Advantages

☑Universal mounting for global use
☑Standard socket - Also for connectors with automatic plug-and-play system
☑Ensures a high degree of flexibility in device design - only one socket is required for connectors that utilize different connection technologies
0
Views: 706
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    41 41 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 630 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plat



    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-12
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB Hole Diameter [mm]
    Ø1.6



    Size Chart





    PCB opening diagram
