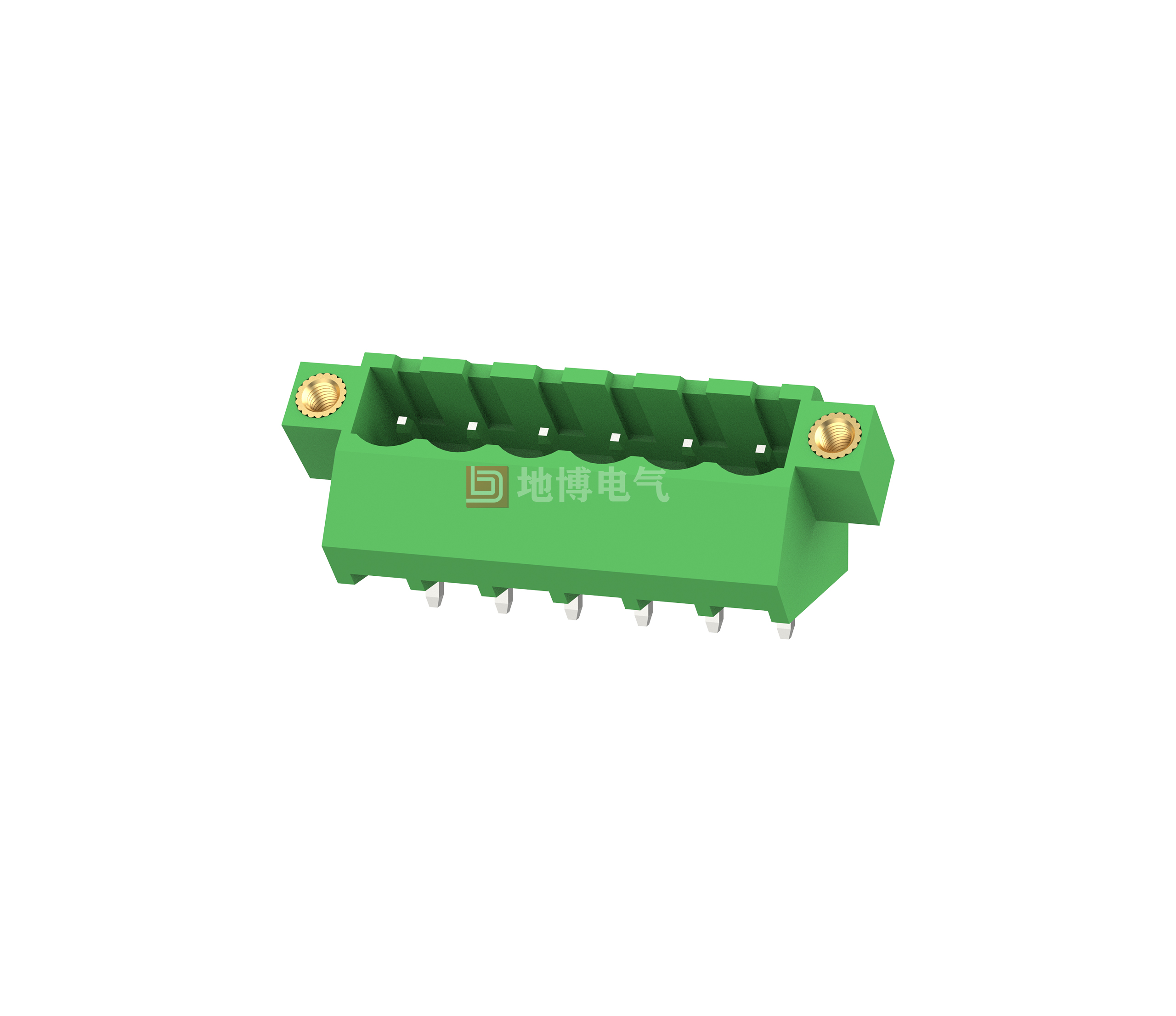

PCB socket DB2ELM-5.08

Printed Circuit Board Housing, Nominal Cross Section: 2.5 mm2, Color: Green, Nominal Operating Current: 16 A (see Temperature Load Curve), Rated Voltage (III/2): 320 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Positions: 2-24, Number of Rows: 1, Number of Positions: 2-24 Number of Positions: 2-24, Number of Connections: 2-24, Product Family: DB2ELM, Pin Pitch: 5.08 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Solder Pins [P]: 3.9 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2ELM, Pin Connector Style Alignment: Standard, Interlocking: Screw Fastening, Mounting: Screw Flange Package Type: Carton

Advantages

☑ Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
☑Universal mounting for global use
☑Bend connection enables multi-row layout on PCB
☑Bolt-on flange for high mechanical stability
0
Views: 722
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    ∅1.7







    Dimensional drawings





    PCB cut-out diagram
