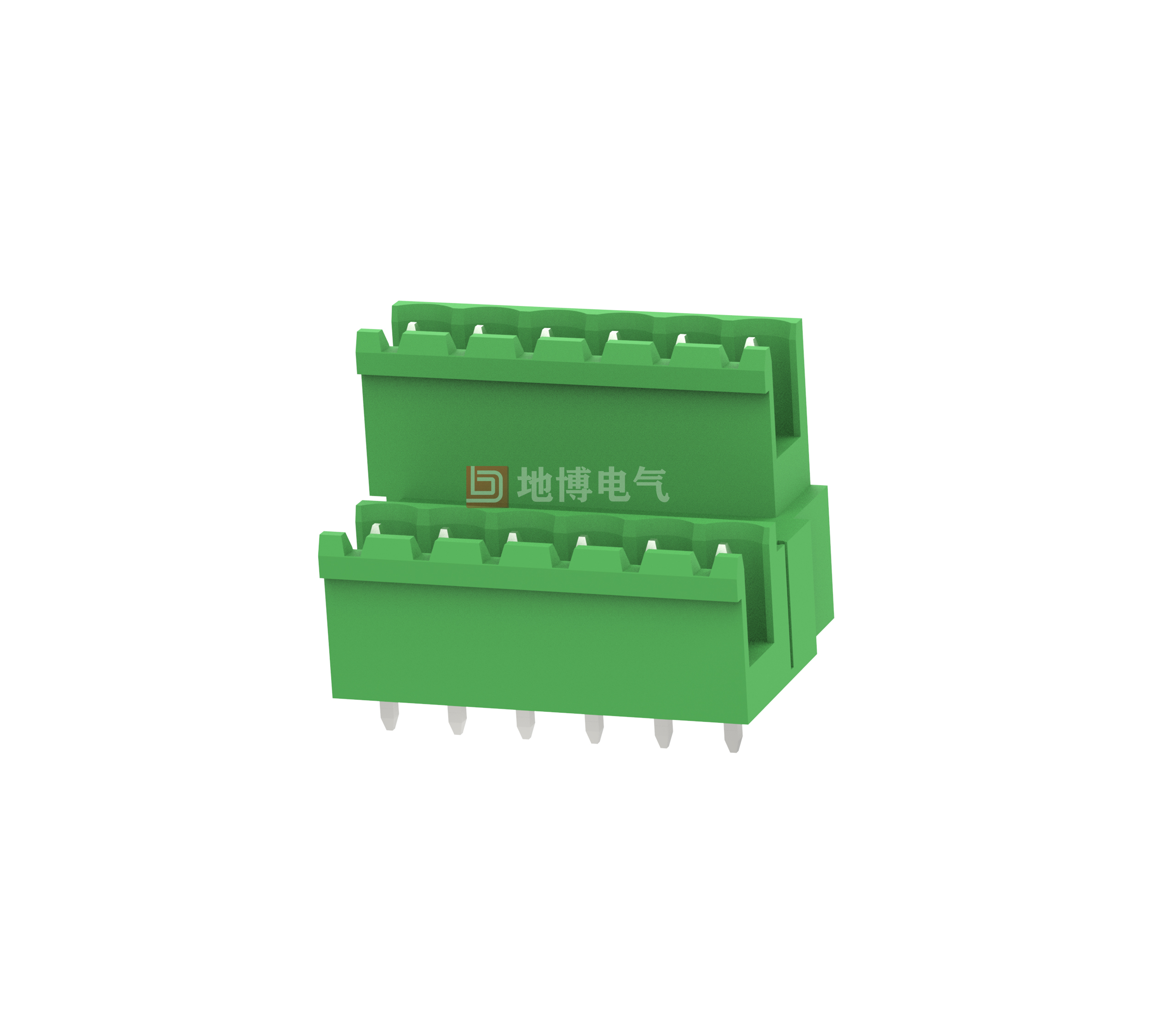

PCB Housing, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 10 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of bits: 4-48, Connections: 4-48, Series: DB2EVT, Pin pitch: 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight, Solder pin [P]: 3.9 mm, Number of pins per potential: 1, Insertion system: COMBICON : 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight alignment, Solder pin [P]: 3.9 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2EVT, Pin connector style alignment: Standard, Interlocking: Without, Mounting: Without, Package type: Carton, The product can be composed of connectors of different bit numbers! When used in combination with DB2EK or DB2EKD plug components, both DB2EK (or DB2EKD) and DB2EK plugs (or DB2EKD) must be used.
Advantages
☑ Ensure high flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
☑s pluggable module for easy PCB replacement
☑Universal mounting for worldwide use
☑Multi-layer wire Connections for high contact density
