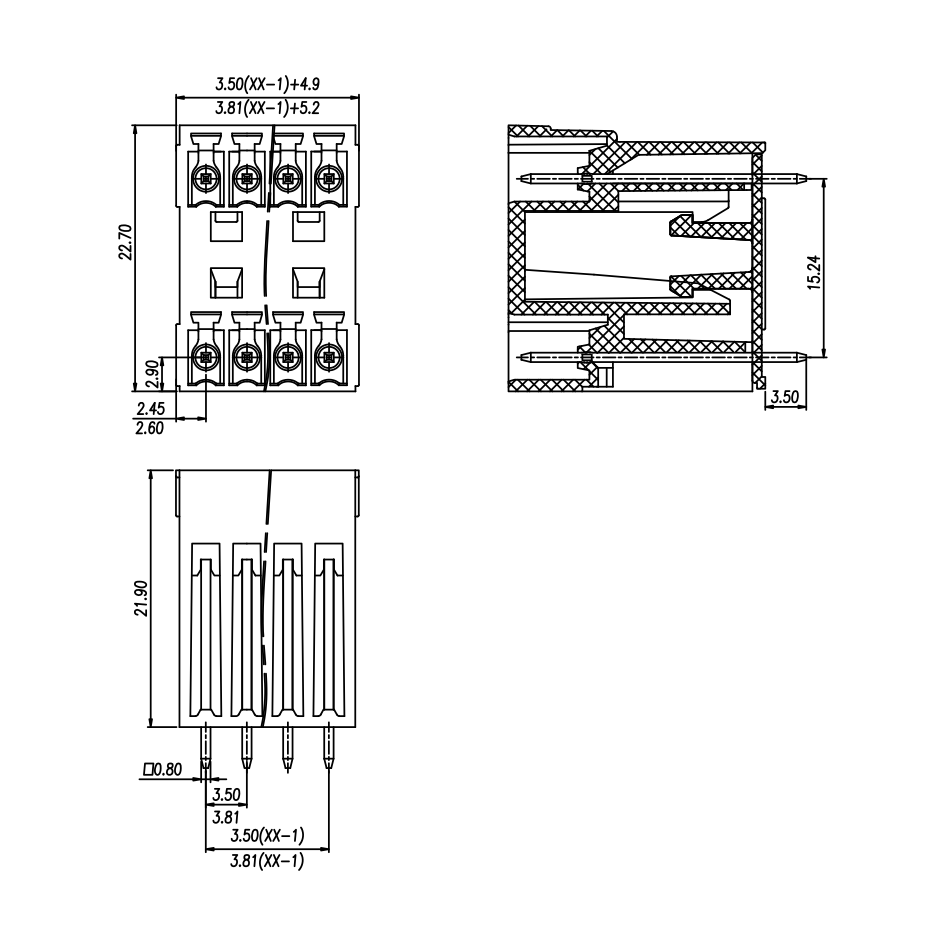

PCB socket DB2EVH-3.81

Printed Circuit Board Housing, Nominal Cross Section: 1.5 mm2, Color: Green, Rated Current: 8 A, Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 4-48, Number of Rows: 2, Number of Positions: 4-48, Connections: 4-48, Product Family: DB2EVH, Pin Pitch: 3.81 mm, Mounting: Wave Soldering Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2EVH, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Package Type: Carton, When used in combination with DB2EK plugs, both DB2EKN and DB2EKD plugs must be used.

Advantage

☑Universal installation method, can be used worldwide
☑Vertical connection enables multi-row layout on PCB
☑Ensure a high degree of flexibility in equipment design - only one socket is needed to meet the needs of connectors using different connection technologies
