PCB socket DB2EVH-3.5

PCB Housing, Cross-sectional rating: 1.5 mm2, Color: Green, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connections: 4-48, Series: DB2EVH, Pin pitch: Pin spacing: 3.5 mm, Mounting: Wave soldering, Pin alignment: Straight alignment, Solder pin [P]: 3.4 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2EVH, Pin connector style alignment: Standard, Interlocking: Without, Mounting: Without, Package type: Carton, When used in combination with DB2EK plugs, both DB2EKN and DB2EKD plugs must be used. When used in combination with DB2EK plugs, both DB2EKN and DB2EKD plugs must be used.

Advantages

☑Universal mounting for worldwide
☑Vertical connection enables multiple rows on PCB
☑Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
0
Views: 606
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

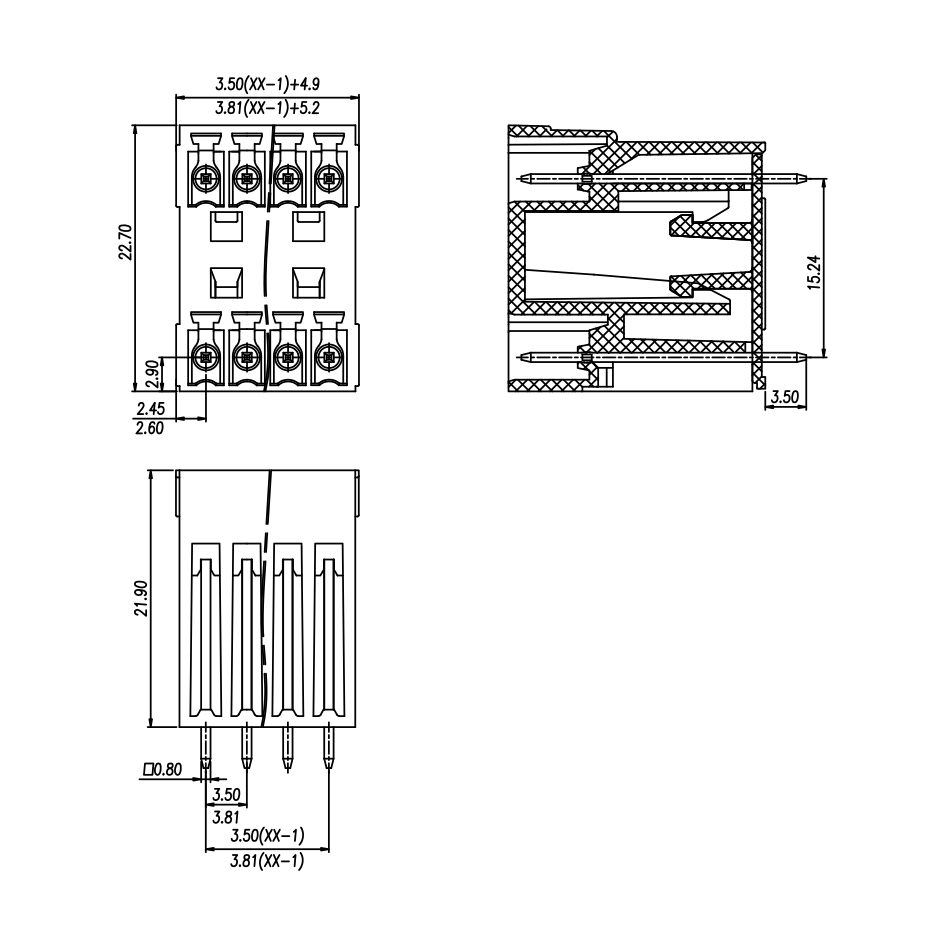

    Size Chart

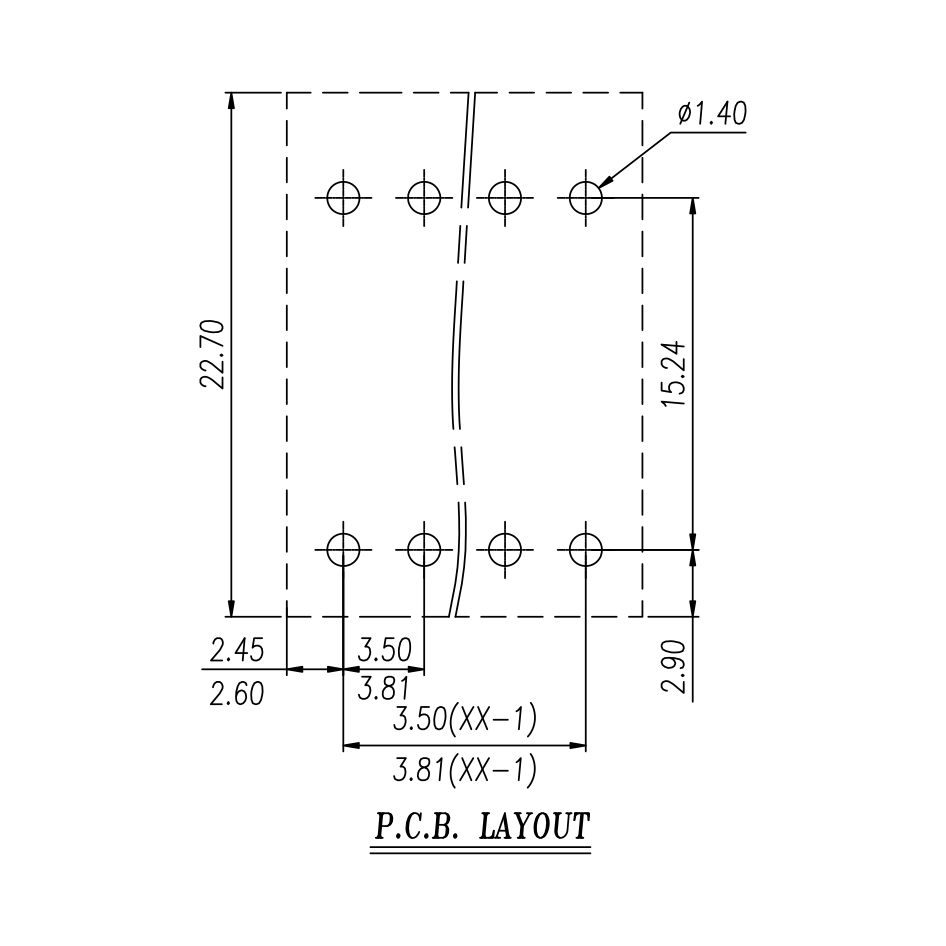

    PCB opening diagram
