PCB socket DB2ER-10.16

PCB Housing, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 16 A, Voltage rating (III/2): 600 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connections: 2-12, Product family: DB2ER, Pin pitch: 10.16 mm, Mounting: wave soldering, Pin alignment: straight, Pin [P]: 3.9 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2ER, Pin connector style alignment: standard, Interlock: without, Mounting: without, Package type: carton

Advantages

☑Ensure a high degree of flexibility in device design - just one socket for connectors that utilize different connection technologies
☑Universal mounting for global use
☑ Vertical connection enables multi-row layout on PCB
☑Product can be aligned at different pin pitches to support flexible and space-saving PCB assembly
☑Using pluggable modules, PCBs can be easily changed</ div>
0
Views: 552
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 - 600
    Rated Current [A]
    15 - 5
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    2.2KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 1000 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    10.0，10.16/2-12
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    ∅1.7

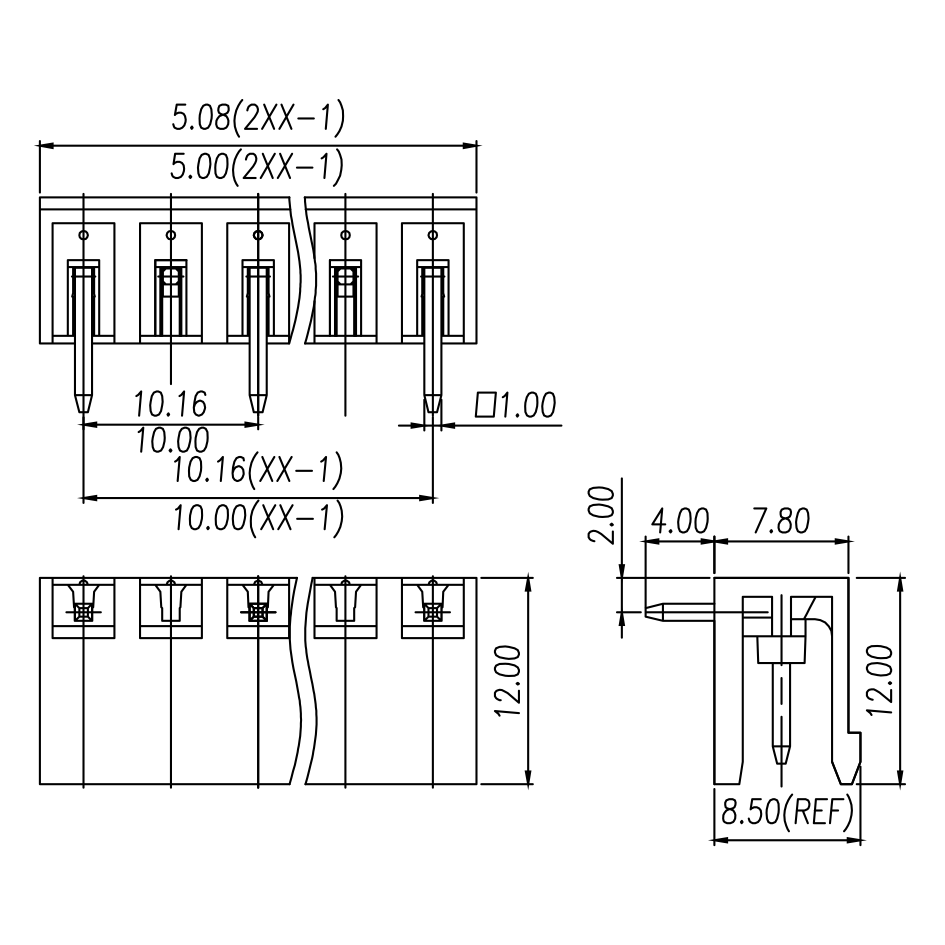

    Size Chart

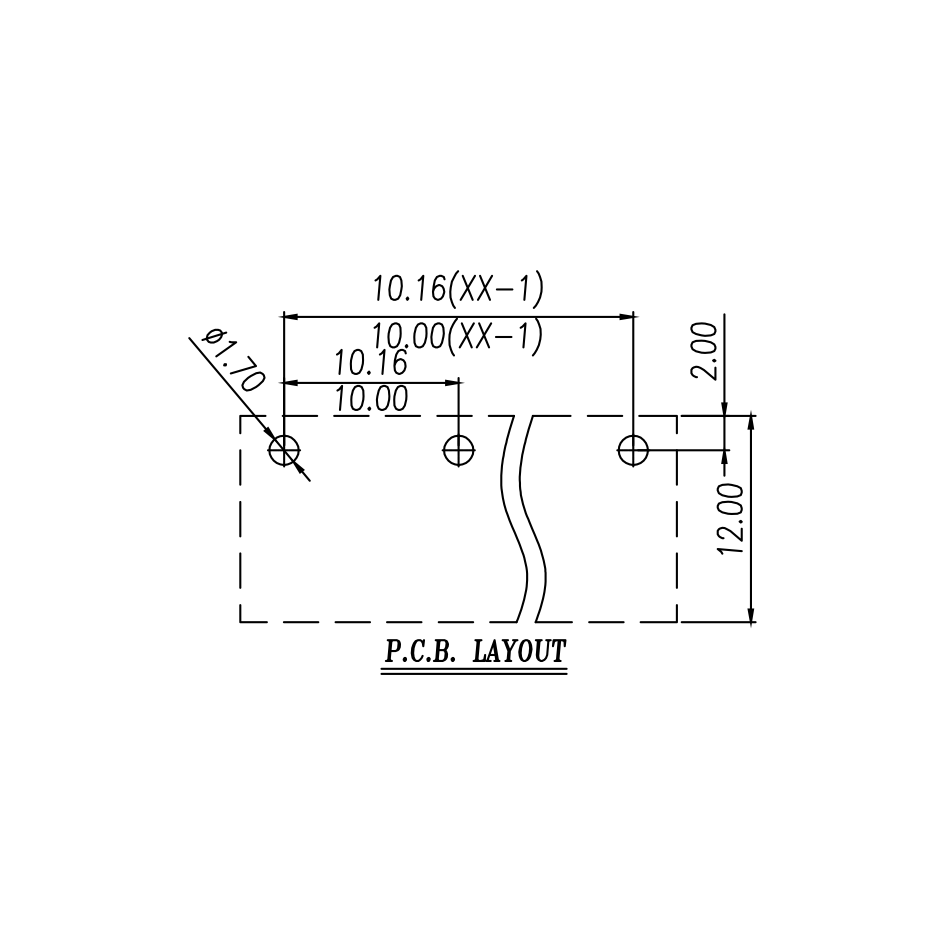

    PCB opening diagram
