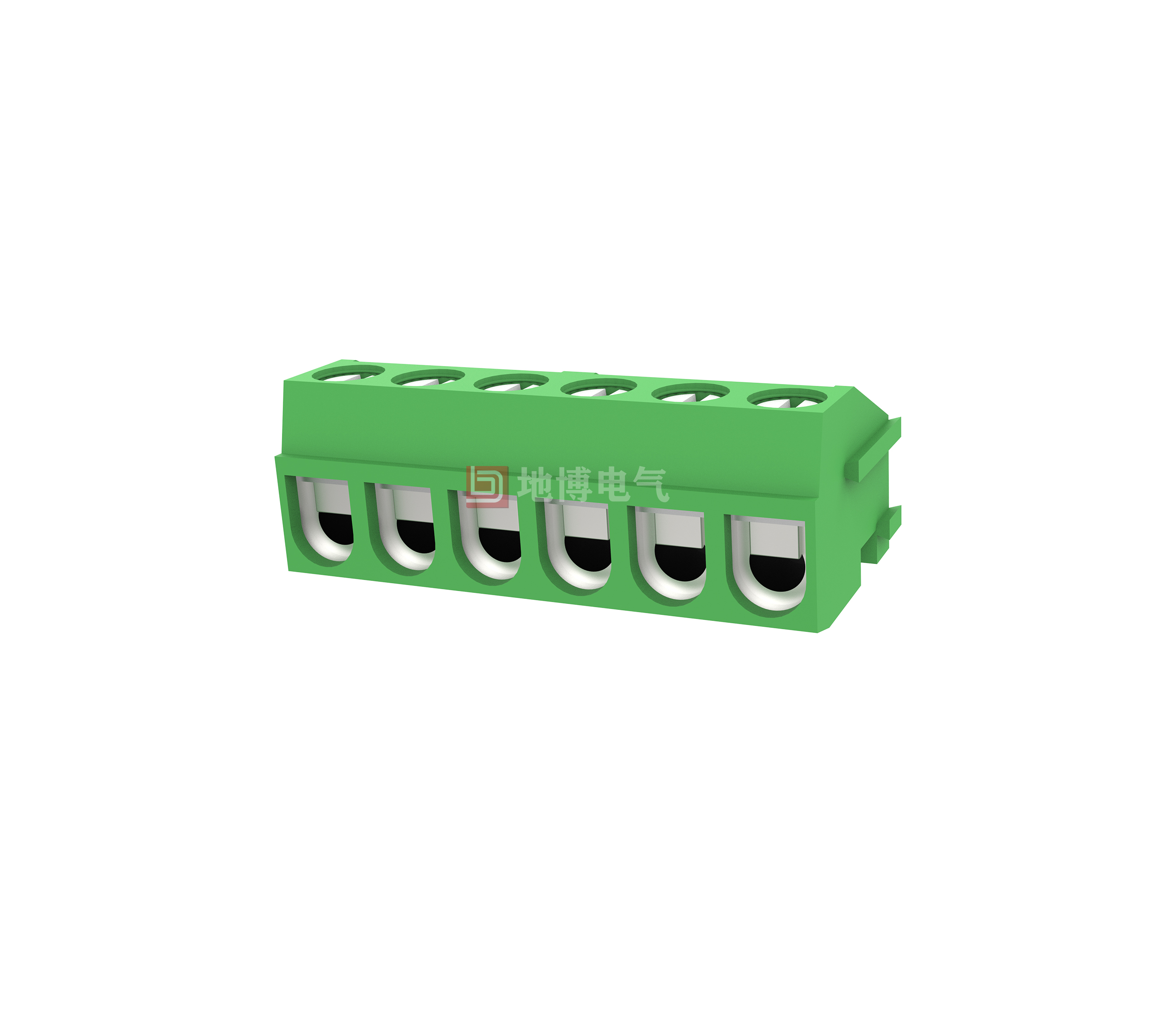

PCB plug-in connector DB332-5.0

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 12 A, Rated voltage (III/2): 250 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB332, Pin spacing: 5 mm, Wiring method: wire with lead Screw connection with protective device, Screw head size: L slotted, Wire/PCB connection direction: 0°, Insertion system: COMBICON DB332, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Square connector with high wiring capacity
☑ Allows connection of two stranded wires
☑ Horizontal and vertical connection options to optimise wire routing
☑ Products can be aligned at different pin pitches to support flexible and space-saving PCB assembly
0
Views: 5,038
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /
