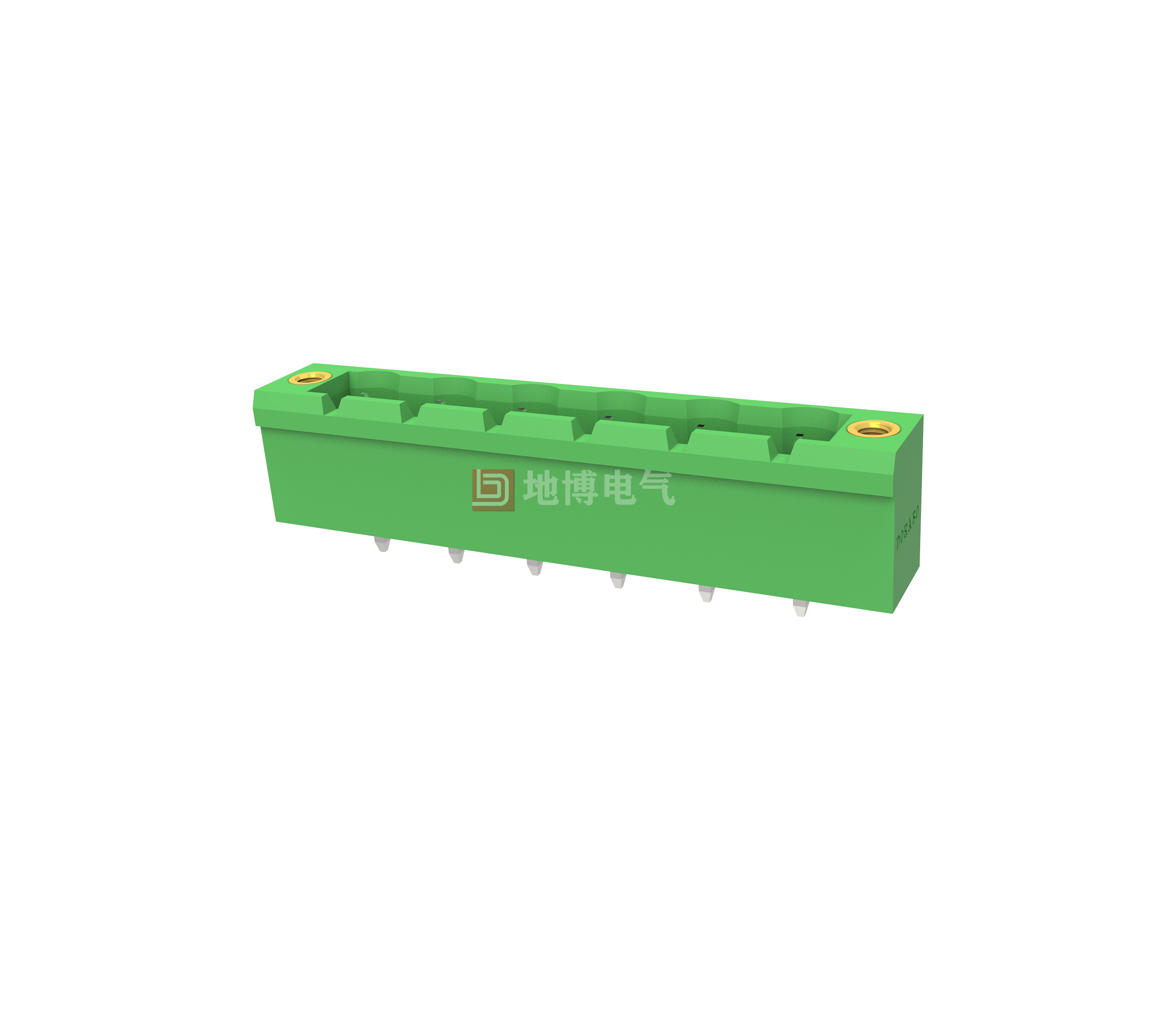

PCB socket DB2EVM-7.62

PCB Housing, Nominal Cross Section: 2.5 mm2, Color: Green, Nominal Operating Current: 12 A, Rated Voltage (III/2): 630 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 2-16, Number of Rows: 1, Number of Positions: 2-16, Connections: 2-16, Product Family: DB2EVM , Pitch: 7.62 mm, Mounting: Wave Soldering, Pin Alignment: Straight, Pin [P]: 3.9 mm, Number of Pins per Potential: 1, Insertion System: COM Pin Pitch: 7.62 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Pin [P]: 3.9 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2EVM, Pin Connector Style Alignment: Standard, Interlock: Screw Fastening, Mounting: Screw Flange, Package Type: Carton

Advantages

☑Ensure a high degree of flexibility in device design - just one socket for connectors that utilize different connection technologies
☑Universal mounting for global use
☑ Larger pin spacing for increased voltage requirements
☑Vertical connection enables multi-row layout on PCB
0
Views: 5,624
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV





    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 630
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    /



    Material Information

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated





    General Parameters



    Pitch/Poles [mm]/[P]
    7.62/2-16
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    ∅1.7







    Size Chart





    PCB opening diagram
